Panduit® LCAX1/0-12F-X Pan-Lug™ LCAX 1-Hole Lug Compression Connector With Window Lug, 1/0 AWG Flexible Conductor, 1/2 in Stud, P42
Lug Compression Connectors
928206
MFG #: LCAX1/0-12F-X
Panduit®
1976.77000
/ ea

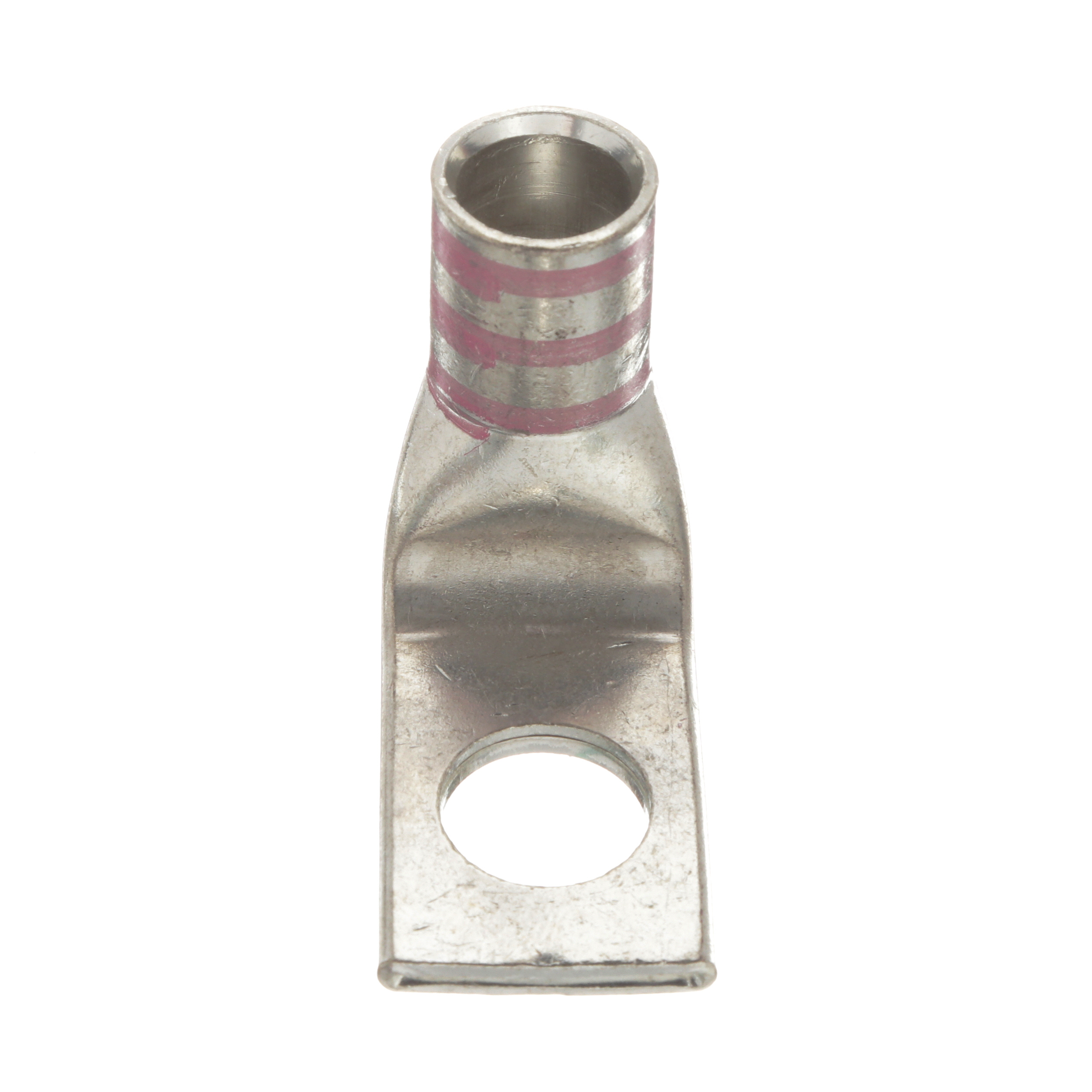

Panduit® Pan-Lug™ Lug Compression Connector, 1-Hole, Series: LCAX, Flexible Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 1/2 in Stud, 90 deg Tongue, 0.85 in W x 0.13 in THK Tongue, 3.89 in Overall Length, Standard, 0.72 in L Barrel, 90 deg C, 4.2828 in Mounting Hole, Tin Plated Copper, Pink
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_EDUCFNO5P8MB0Y39.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_XKNPSW49FOETIL76.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-PCT-PMPI-256-PC--Rev10--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - LCAX1_0-12F-X.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10965_FA6OL7N0IBT9SQRU.pdf(Tech Bulletin URL)
- Tech Drawing URL - 10965_P7T5G9ORV2LSYE3N.pdf(Tech Drawing URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4(Video)
- Features
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Tin plated to inhibit corrosion |
