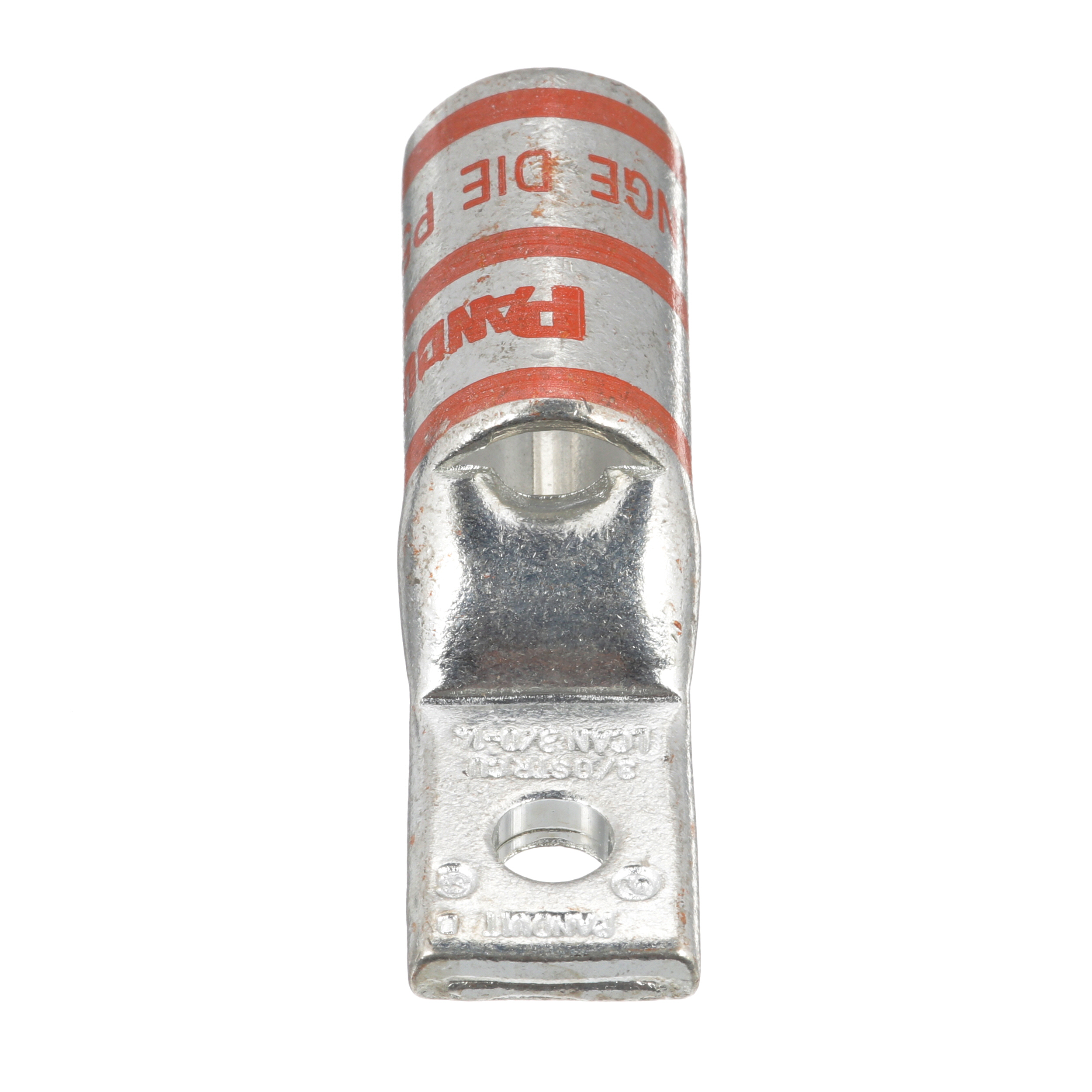

Panduit® LCAN3/0-14-X LCAN 1-Hole Compression Lug Connector With Inspection Window, 3/0 AWG Copper Conductor, 1/4 in Stud, P50
Custom_Product_Images_Illustration
Panduit® LCAN3/0-14-X LCAN 1-Hole Compression Lug Connector With Inspection Window, 3/0 AWG Copper Conductor, 1/4 in Stud, P50
SKU359958
MFGR #LCAN3/0-14-X
Your Cost: $22.3644/ea($2,236.44 / c)
Panduit® Compression Lug Connector, 1-Hole, Series: LCAN, Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kVAC, 1/4 in Stud, Narrow/Straight Tongue, 0.64 in W x 0.14 in THK Tongue, 2.28 in Overall Length, Standard, 1.14 in L Barrel, 1-3/16 in Wire Stripe Length, 90 deg C, Copper, Orange
Panduit® Compression Lug Connector, 1-Hole, Series: LCAN, Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kVAC, 1/4 in Stud, Narrow/Straight Tongue, 0.64 in W x 0.14 in THK Tongue, 2.28 in Overall Length, Standard, 1.14 in L Barrel, 1-3/16 in Wire Stripe Length, 90 deg C, Copper, Orange
ARRA Compliant Y Barrel Size 0.51 in ID x 0.64 in OD x 1.14 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCAN3/0-14-X Color Orange Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.41 Gross Weight UOM Metric kg Height 3.55 in Height [Metric] 9.0170 cm Length 4.75 in Length [Metric] 12.0650 cm Mounting 1.19 Mounting Hole Size 1.19 in Number Of Holes 1 Overall Length 2.28 in Returnable Y Series LCAN Size 3/0 AWG Code Specifications 1-3/16 in L Wire Strip, Tin Plated Finish Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 File No. 65-13UL 486AUL 486BUL File No. E52164 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.64 in W x 0.14 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498360337 UPC 12 07498360337 Voltage Rating 35 V Width 3.35 in Width [Metric] 8.5090 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 3/0 AWG Conductor Type Copper/Stranded Die Code P50 Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Narrow tongue width for limited space applications Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.51 in ID x 0.64 in OD x 1.14 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCAN3/0-14-X |
| Color | Orange |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.41 |
| Gross Weight UOM Metric | kg |
| Height | 3.55 in |
| Height [Metric] | 9.0170 cm |
| Length | 4.75 in |
| Length [Metric] | 12.0650 cm |
| Mounting | 1.19 |
| Mounting Hole Size | 1.19 in |
| Number Of Holes | 1 |
| Overall Length | 2.28 in |
| Returnable | Y |
| Series | LCAN |
| Size | 3/0 AWG Code |
| Specifications | 1-3/16 in L Wire Strip, Tin Plated Finish |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 File No. 65-13UL 486AUL 486BUL File No. E52164 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.64 in W x 0.14 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498360337 |
| UPC 12 | 07498360337 |
| Voltage Rating | 35 V |
| Width | 3.35 in |
| Width [Metric] | 8.5090 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 3/0 AWG |
| Conductor Type | Copper/Stranded |
| Die Code | P50 |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Narrow tongue width for limited space applications |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
