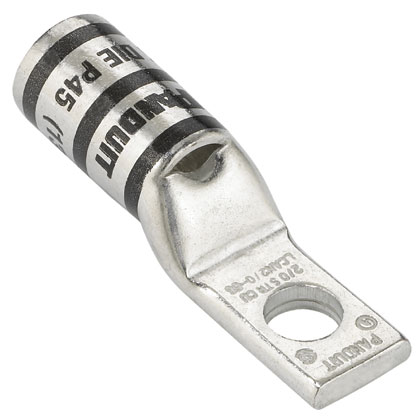

Panduit® LCAN1-14-E Pan-Lug LCAN Standard Barrel Lug With Inspection Window, 1 AWG, 1/4 in Stud, 1 Bolt Hole, Copper
Panduit® LCAN1-14-E Pan-Lug LCAN Standard Barrel Lug With Inspection Window, 1 AWG, 1/4 in Stud, 1 Bolt Hole, Copper
SKU70644
MFGR #LCAN1-14-E
Your Cost: $14.8092/ea($1,480.92 / c)
Panduit® Pan-Lug Barrel Lug, Standard, Series: LCAN, 1 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.47 in W x 0.12 in THK Tongue, Narrow Tongue, 35 kV, 90 deg C, Copper, Tin Plated, Green, 1.79 in L x 0.47 in W
Panduit® Pan-Lug Barrel Lug, Standard, Series: LCAN, 1 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.47 in W x 0.12 in THK Tongue, Narrow Tongue, 35 kV, 90 deg C, Copper, Tin Plated, Green, 1.79 in L x 0.47 in W
ARRA Compliant Y Buy American Compliant Y Catalog Number LCAN1-14-E Color Green Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.47 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.70 in Length [Metric] 11.9380 cm Mounting 15/16 Number Of Holes 1 Returnable Y Size #1 AWG Code Standard CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 Standards UL E52164 486A, 486B, CSA C22.2 No. 65-13, RoHS Compliant Sub Brand Pan-Lug?„? Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498360332 UPC 12 07498360332 Voltage Rating 35,000 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Narrow tongue width for limited space applications Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion UL listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies UL listed and CSA Certified for wide wire range taking capability when crimped with Panduit® uni-die dieless crimping tools 0.88 in barrel length P37 die index 1-5/16 in wire strip length Straight tongue angle Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | LCAN1-14-E |
| Color | Green |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.47 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.70 in |
| Length [Metric] | 11.9380 cm |
| Mounting | 15/16 |
| Number Of Holes | 1 |
| Returnable | Y |
| Size | #1 AWG Code |
| Standard | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Standards | UL E52164 486A, 486B, CSA C22.2 No. 65-13, RoHS Compliant |
| Sub Brand | Pan-Lug?„? |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498360332 |
| UPC 12 | 07498360332 |
| Voltage Rating | 35,000 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Narrow tongue width for limited space applications |
| Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| UL listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies |
| UL listed and CSA Certified for wide wire range taking capability when crimped with Panduit® uni-die dieless crimping tools |
| 0.88 in barrel length |
| P37 die index |
| 1-5/16 in wire strip length |
| Straight tongue angle |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 VAC |
