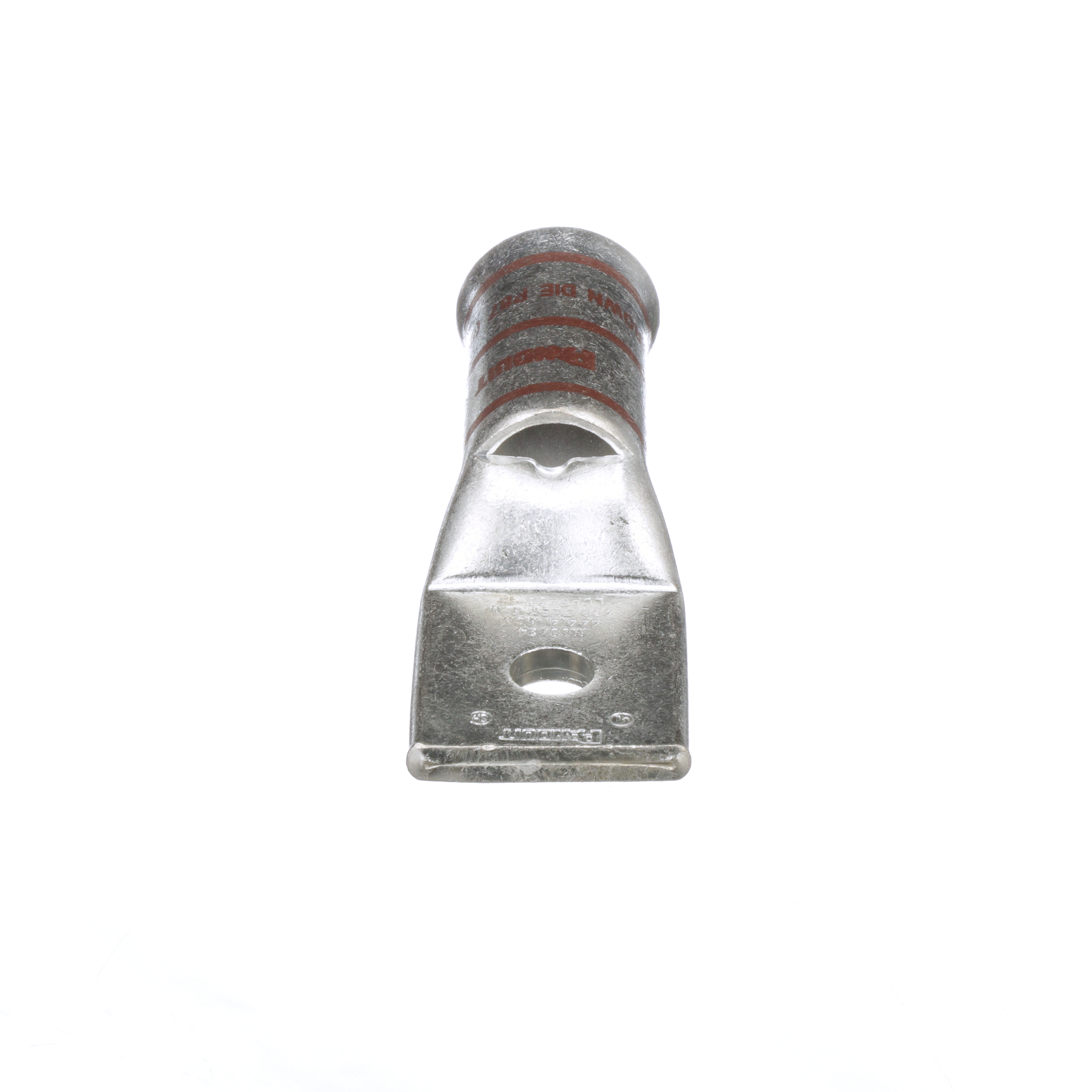

Panduit® LCAF400-12-6 Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 400 kcmil Copper Conductor, 1/2 in Stud, P87
Custom_Product_Images_Illustration
Panduit® LCAF400-12-6 Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 400 kcmil Copper Conductor, 1/2 in Stud, P87
SKU323801
MFGR #LCAF400-12-6
Your Cost: $75.5516/ea($7,555.16 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.92 in ID x 1.34 in OD x 2.2 in L Barrel Type Flared/Standard With Inspection Window Brand Panduit® Buy American Compliant Y Catalog Number LCAF400-12-6 Color Brown Conductor Size 400 kcmil Class K, M, 444.4 kcmil DLO Conductor Type Copper Country of Origin MEX Currency USD Die Code P87 EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2700 lb Gross Weight per Pack Metric 1.84 Gross Weight UOM Metric kg Height 3.45 in Height [Metric] 8.7630 cm Length 7.90 in Length [Metric] 20.0660 cm Manufacturer Panduit® Material Tin-Plated Copper Mounting 2.25 Mounting Hole Size 2-1/4 in Number Of Holes 1 Overall Length 4.65 in Returnable Y Series LCAF Size 400 kcmil Class K and M, 444.4 kcmil DLO Specifications 2-1/4 in L Wire Strip Standard UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3UL Listed Stock Status NONSTOCK Stud Size 1/2 in Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 1.7 in W x 0.26 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498355669 UPC 12 07498355669 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with stranded copper conductors Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.92 in ID x 1.34 in OD x 2.2 in L |
| Barrel Type | Flared/Standard With Inspection Window |
| Brand | Panduit® |
| Buy American Compliant | Y |
| Catalog Number | LCAF400-12-6 |
| Color | Brown |
| Conductor Size | 400 kcmil Class K, M, 444.4 kcmil DLO |
| Conductor Type | Copper |
| Country of Origin | MEX |
| Currency | USD |
| Die Code | P87 |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2700 lb |
| Gross Weight per Pack Metric | 1.84 |
| Gross Weight UOM Metric | kg |
| Height | 3.45 in |
| Height [Metric] | 8.7630 cm |
| Length | 7.90 in |
| Length [Metric] | 20.0660 cm |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Mounting | 2.25 |
| Mounting Hole Size | 2-1/4 in |
| Number Of Holes | 1 |
| Overall Length | 4.65 in |
| Returnable | Y |
| Series | LCAF |
| Size | 400 kcmil Class K and M, 444.4 kcmil DLO |
| Specifications | 2-1/4 in L Wire Strip |
| Standard | UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3UL Listed |
| Stock Status | NONSTOCK |
| Stud Size | 1/2 in |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 1.7 in W x 0.26 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498355669 |
| UPC 12 | 07498355669 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| Electro Tin Plated Copper |
