Panduit®

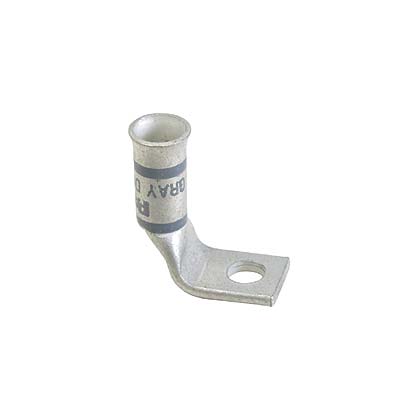

Panduit® LCAF2-56F-E Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 2 AWG Copper Conductor, 5/16 in Stud, P33, Copper
Custom_Product_Images_Illustration
Panduit®
Panduit® LCAF2-56F-E Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 2 AWG Copper Conductor, 5/16 in Stud, P33, Copper
SKU799101
MFGR #LCAF2-56F-E
Your Cost: $16.2285/ea($1,622.85 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Amperage Rating NA ARRA Compliant Y Barrel Size 0.36 in ID x 0.55 in OD x 0.88 in L Barrel Type Flared/Standard With Inspection Window Buy American Compliant Y Catalog Number LCAF2-56F-E Color Brown Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.49 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.90 in Length [Metric] 12.4460 cm Mounting 15/16 Mounting Hole Size 15/16 in Number Of Holes 1 Overall Length 1.48 in Returnable Y Series LCAF Size #2 AWG Class K and M and DLO Specifications 15/16 in L Wire Strip Standard UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3UL Listed Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.76 in L x 0.7 in W x 0.11 in THK Tongue Type 90 deg Long Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498397391 UPC 12 074983973910 Voltage Rating NA V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 2 AWG Class K, M and DLO Conductor Type Copper Die Code P33 Material Tin-Plated Copper Stud Size 5/16 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with stranded copper conductors Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | NA |
| ARRA Compliant | Y |
| Barrel Size | 0.36 in ID x 0.55 in OD x 0.88 in L |
| Barrel Type | Flared/Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCAF2-56F-E |
| Color | Brown |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.49 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.90 in |
| Length [Metric] | 12.4460 cm |
| Mounting | 15/16 |
| Mounting Hole Size | 15/16 in |
| Number Of Holes | 1 |
| Overall Length | 1.48 in |
| Returnable | Y |
| Series | LCAF |
| Size | #2 AWG Class K and M and DLO |
| Specifications | 15/16 in L Wire Strip |
| Standard | UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3UL Listed |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.76 in L x 0.7 in W x 0.11 in THK |
| Tongue Type | 90 deg Long |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498397391 |
| UPC 12 | 074983973910 |
| Voltage Rating | NA V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 2 AWG Class K, M and DLO |
| Conductor Type | Copper |
| Die Code | P33 |
| Material | Tin-Plated Copper |
| Stud Size | 5/16 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| Electro Tin Plated Copper |
