Panduit®

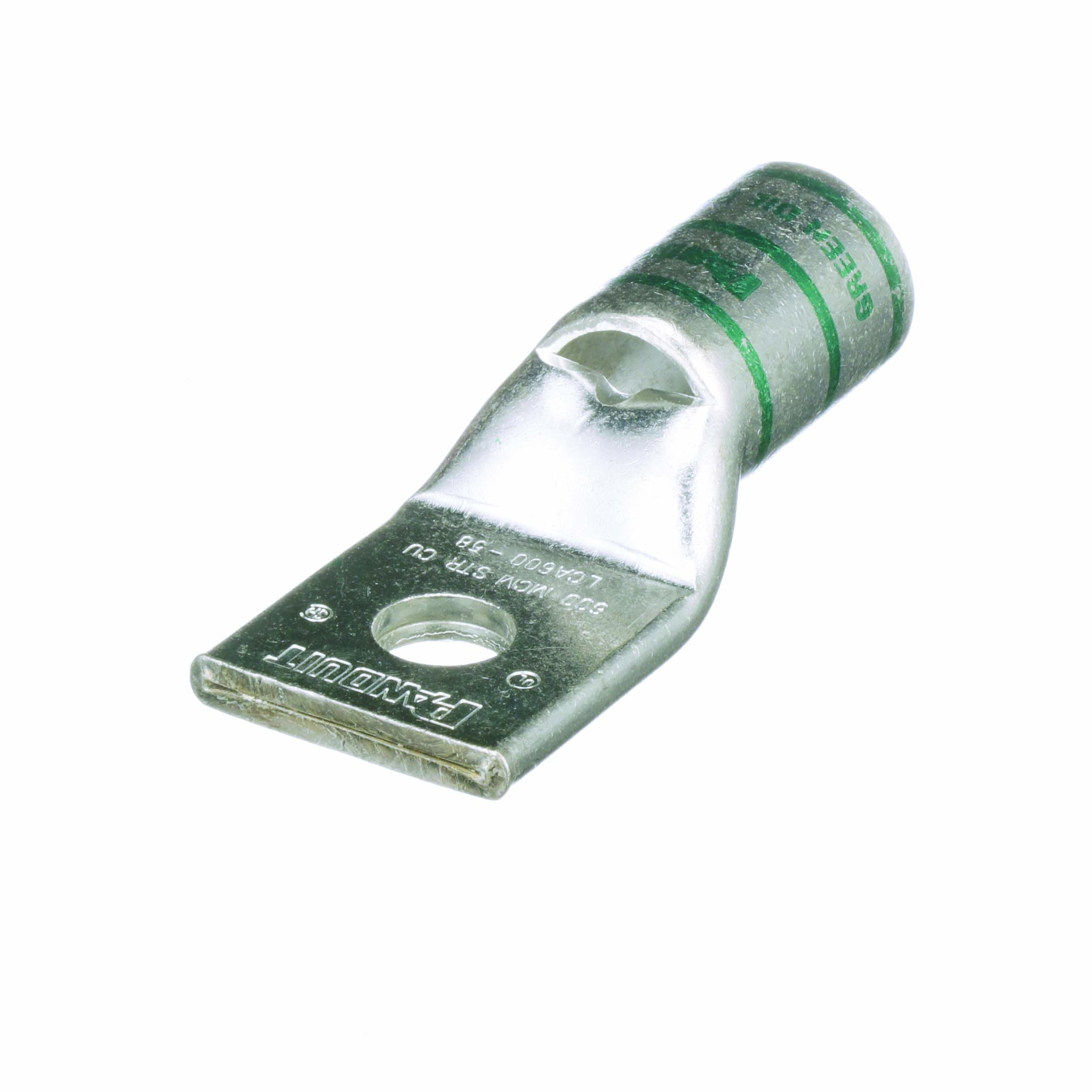

Panduit® LCA600-58-6 LCA 1-Hole Compression Lug Connector With Inspection Window, 600 kcmil Copper Conductor, 5/8 in Stud, P94
Custom_Product_Images_Illustration
Panduit®
Panduit® LCA600-58-6 LCA 1-Hole Compression Lug Connector With Inspection Window, 600 kcmil Copper Conductor, 5/8 in Stud, P94
SKU188496
MFGR #LCA600-58-6
Your Cost: $76.5644/ea($7,656.44 / c)
Panduit® Compression Lug Connector, 1-Hole, Series: LCA, Copper Conductor, 600 kcmil Conductor, Die Code: P94, 35 kVAC, 5/8 in Stud, Standard/Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 4.2 in Overall Length, Standard, 1-3/4 in L Barrel, 1-13/16 in Wire Stripe Length, 90 deg C, Copper, Green
Panduit® Compression Lug Connector, 1-Hole, Series: LCA, Copper Conductor, 600 kcmil Conductor, Die Code: P94, 35 kVAC, 5/8 in Stud, Standard/Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 4.2 in Overall Length, Standard, 1-3/4 in L Barrel, 1-13/16 in Wire Stripe Length, 90 deg C, Copper, Green
ARRA Compliant Y Barrel Type Standard Barrel Length with Inspection Window Buy American Compliant Y Catalog Number LCA600-58-6 Color Green Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 1.52 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 7.90 in Length [Metric] 20.0660 cm Mounting 1.81 Number Of Holes 1 Returnable Y Size 600 kcmil Code Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards UL 486A, 486B, E52164 Listed, CSA C22.2 NO 65-13 Certified, RoHS Compliant Sub Brand Pan-Lug?„? Type Tin-Plated Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498390070 UPC 12 07498390070 Voltage Rating 35,000 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Material Tin-Plated Copper Stud Size 5/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tested by Telcordia meets NEBS level 3 American bureau of shipping approved High conductivity seamless copper tube 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA600-58-6 |
| Color | Green |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.5500 lb |
| Gross Weight per Pack Metric | 1.52 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 7.90 in |
| Length [Metric] | 20.0660 cm |
| Mounting | 1.81 |
| Number Of Holes | 1 |
| Returnable | Y |
| Size | 600 kcmil Code |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | UL 486A, 486B, E52164 Listed, CSA C22.2 NO 65-13 Certified, RoHS Compliant |
| Sub Brand | Pan-Lug?„? |
| Type | Tin-Plated Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498390070 |
| UPC 12 | 07498390070 |
| Voltage Rating | 35,000 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Stud Size | 5/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Tested by Telcordia meets NEBS level 3 |
| American bureau of shipping approved |
| High conductivity seamless copper tube |
| 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
