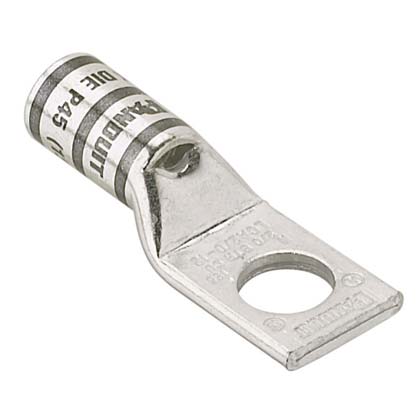

Panduit® LCA400-58-6 LCA 1-Hole Compression Lug Connector With Inspection Window, 400 kcmil Copper Conductor, 5/8 in Stud, P76
Custom_Product_Images_Illustration
Panduit® LCA400-58-6 LCA 1-Hole Compression Lug Connector With Inspection Window, 400 kcmil Copper Conductor, 5/8 in Stud, P76
SKU273813
MFGR #LCA400-58-6
Your Cost: $29.3024/ea($2,930.24 / c)
Panduit® Compression Lug Connector, 1-Hole, Series: LCA, Copper Conductor, 400 kcmil Conductor, Die Code: P76, 35 kVAC, 5/8 in Stud, Standard/Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 3.43 in Overall Length, Standard, 1-1/2 in L Barrel, 1-9/16 in Wire Stripe Length, 90 deg C, Copper, Blue
Panduit® Compression Lug Connector, 1-Hole, Series: LCA, Copper Conductor, 400 kcmil Conductor, Die Code: P76, 35 kVAC, 5/8 in Stud, Standard/Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 3.43 in Overall Length, Standard, 1-1/2 in L Barrel, 1-9/16 in Wire Stripe Length, 90 deg C, Copper, Blue
ARRA Compliant Y Barrel Size 0.76 in ID x 0.95 in OD x 1.5 in L Barrel Type Standard with Inspection Window Buy American Compliant Y Catalog Number LCA400-58-6 Color Blue Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2700 lb Gross Weight per Pack Metric 0.75 Gross Weight UOM Metric kg Height 3.30 in Height [Metric] 8.3820 cm Length 4.80 in Length [Metric] 12.1920 cm Mounting 1.56 Mounting Hole Size 1.56 in Number Of Holes 1 Overall Length 3.43 in Returnable Y Series LCA Size 400 kcmil Code Specifications 1-9/16 in L Wire Strip, Tin Plated Finish Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedUL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 1.39 in W x 0.18 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498390060 UPC 12 07498390060 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 400 kcmil Conductor Type Copper/Stranded Die Code P76 Material Tin-Plated Copper Stud Size 5/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V American bureau of shipping approved High conductivity seamless copper tube 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.76 in ID x 0.95 in OD x 1.5 in L |
| Barrel Type | Standard with Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA400-58-6 |
| Color | Blue |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2700 lb |
| Gross Weight per Pack Metric | 0.75 |
| Gross Weight UOM Metric | kg |
| Height | 3.30 in |
| Height [Metric] | 8.3820 cm |
| Length | 4.80 in |
| Length [Metric] | 12.1920 cm |
| Mounting | 1.56 |
| Mounting Hole Size | 1.56 in |
| Number Of Holes | 1 |
| Overall Length | 3.43 in |
| Returnable | Y |
| Series | LCA |
| Size | 400 kcmil Code |
| Specifications | 1-9/16 in L Wire Strip, Tin Plated Finish |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedUL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 1.39 in W x 0.18 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498390060 |
| UPC 12 | 07498390060 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 400 kcmil |
| Conductor Type | Copper/Stranded |
| Die Code | P76 |
| Material | Tin-Plated Copper |
| Stud Size | 5/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| American bureau of shipping approved |
| High conductivity seamless copper tube |
| 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
