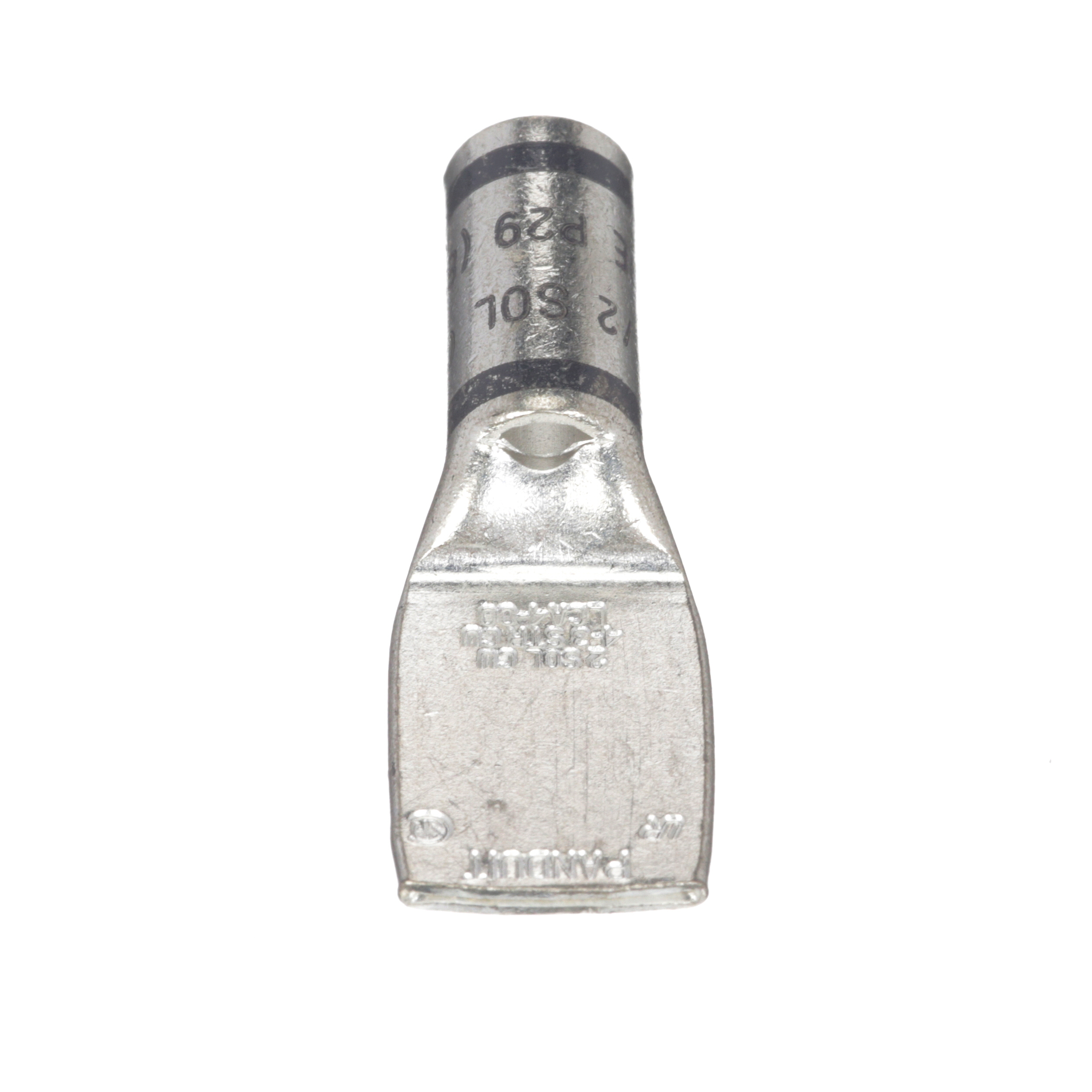

Panduit® LCA4-00-L Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 4 to 3 AWG Copper Conductor, P29, Copper
Custom_Product_Images_Illustration
Panduit® LCA4-00-L Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 4 to 3 AWG Copper Conductor, P29, Copper
SKU821652
MFGR #LCA4-00-L
Your Cost: $5.6733/ea($567.33 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.28 in ID x 0.38 in OD x 0.81 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCA4-00-L Color Gray Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Height 3.50 in Height [Metric] 8.8900 cm Length 4.90 in Length [Metric] 12.4460 cm Mounting 42,954 Mounting Hole Size 7/8 in Number Of Holes 0 Overall Length 1.85 in Returnable Y Series LCA Size #4 — #3 AWG Code STR, #2 AWG Code SOL Specifications 7/8 in L Wire Strip Standard CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 File No. 65-03NEBS Level 3NEBS Level 3UL File No. E52164 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.84 in L x 0.62 in W x 0.07 in THK Tongue Type Blank Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498338225 UPC 12 07498338225 Voltage Rating 35 V Width 3.50 in Width [Metric] 8.8900 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 4 to 3 AWG, 2 AWG Conductor Type Solid/Stranded Copper Die Code P29 Material Tin-Plated Copper Stud Size 0 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with stranded copper conductors 4 - 3 AWG stranded, 2 AWG solid conductor size Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.28 in ID x 0.38 in OD x 0.81 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA4-00-L |
| Color | Gray |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Height | 3.50 in |
| Height [Metric] | 8.8900 cm |
| Length | 4.90 in |
| Length [Metric] | 12.4460 cm |
| Mounting | 42,954 |
| Mounting Hole Size | 7/8 in |
| Number Of Holes | 0 |
| Overall Length | 1.85 in |
| Returnable | Y |
| Series | LCA |
| Size | #4 — #3 AWG Code STR, #2 AWG Code SOL |
| Specifications | 7/8 in L Wire Strip |
| Standard | CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 File No. 65-03NEBS Level 3NEBS Level 3UL File No. E52164 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.84 in L x 0.62 in W x 0.07 in THK |
| Tongue Type | Blank Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498338225 |
| UPC 12 | 07498338225 |
| Voltage Rating | 35 V |
| Width | 3.50 in |
| Width [Metric] | 8.8900 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 4 to 3 AWG, 2 AWG |
| Conductor Type | Solid/Stranded Copper |
| Die Code | P29 |
| Material | Tin-Plated Copper |
| Stud Size | 0 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| 4 - 3 AWG stranded, 2 AWG solid conductor size |
| Electro Tin Plated Copper |
