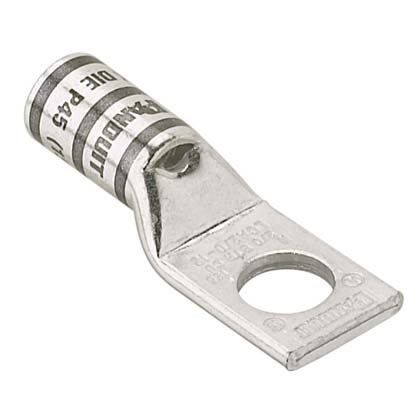

Panduit® LCA3/0-14-X LCA Standard Barrel Lug With Inspection Window, 3/0 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes
Panduit®
Panduit® LCA3/0-14-X LCA Standard Barrel Lug With Inspection Window, 3/0 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes
SKU7067
MFGR #LCA3/0-14-X
Your Cost: $17.5598/ea($1,755.98 / c)
Panduit® Barrel Lug, Standard, Series: LCA, Copper Conductor, 3/0 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.96 in W x 0.13 in THK Tongue, Standard Tongue, 35 kVAC, 90 deg C, Tin Plated, Orange, 2.28 in L x 0.96 in W
Panduit® Barrel Lug, Standard, Series: LCA, Copper Conductor, 3/0 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.96 in W x 0.13 in THK Tongue, Standard Tongue, 35 kVAC, 90 deg C, Tin Plated, Orange, 2.28 in L x 0.96 in W
ARRA Compliant Y Buy American Compliant Y Catalog Number LCA3/0-14-X Color Orange Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0900 lb Gross Weight per Pack Metric 0.44 Gross Weight UOM Metric kg Height 3.50 in Height [Metric] 8.8900 cm Length 4.75 in Length [Metric] 12.0650 cm Mounting 1.19 Number Of Holes 1 Returnable Y Size 3/0 AWG Code Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards UL 486A-486B E52164, CSA C22.2 No 65-13, RoHS Compliant Sub Brand Pan-Lug?„? Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498390117 UPC 12 07498390117 Width 3.35 in Width [Metric] 8.5090 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion UL Listed and CSA Certified to 35 KV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die dieless crimping tools Standard barrel 1.14 in barrel length P50 die index no 1-3/16 in wire strip length Straight tongue angle Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | LCA3/0-14-X |
| Color | Orange |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0900 lb |
| Gross Weight per Pack Metric | 0.44 |
| Gross Weight UOM Metric | kg |
| Height | 3.50 in |
| Height [Metric] | 8.8900 cm |
| Length | 4.75 in |
| Length [Metric] | 12.0650 cm |
| Mounting | 1.19 |
| Number Of Holes | 1 |
| Returnable | Y |
| Size | 3/0 AWG Code |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | UL 486A-486B E52164, CSA C22.2 No 65-13, RoHS Compliant |
| Sub Brand | Pan-Lug?„? |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498390117 |
| UPC 12 | 07498390117 |
| Width | 3.35 in |
| Width [Metric] | 8.5090 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| UL Listed and CSA Certified to 35 KV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies |
| UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die dieless crimping tools |
| Standard barrel |
| 1.14 in barrel length |
| P50 die index no |
| 1-3/16 in wire strip length |
| Straight tongue angle |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
