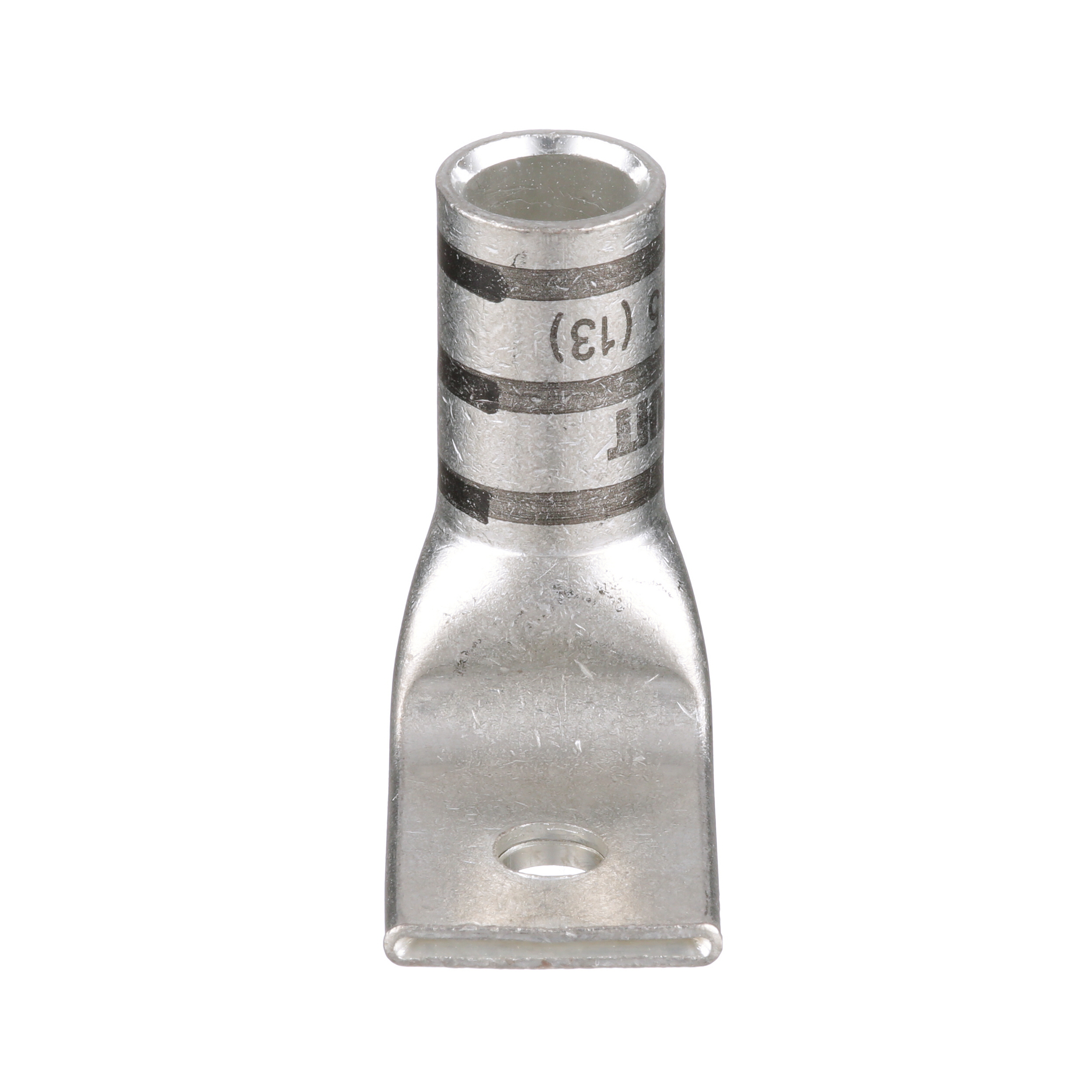

Panduit® LCA2/0-14F-X Pan-Lug™ LCA 1-Hole Lug Compression Connector With Window Lug, 2/0 AWG, 1/4 in Stud, P45, Tin Plated Copper
Custom_Product_Images_Illustration
Panduit® LCA2/0-14F-X Pan-Lug™ LCA 1-Hole Lug Compression Connector With Window Lug, 2/0 AWG, 1/4 in Stud, P45, Tin Plated Copper
SKU335508
MFGR #LCA2/0-14F-X
Your Cost: $19.1471/ea($1,914.71 / c)
Panduit® Pan-Lug™ Lug Compression Connector, 1-Hole, Series: LCA, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 1/4 in Stud, 90 deg Tongue, 0.85 in W x 0.13 in THK Tongue, 1.47 in Overall Length, Standard, 0.98 in L Barrel, 90 deg C, 1.06 in Mounting Hole, Tin Plated Copper, Black
Panduit® Pan-Lug™ Lug Compression Connector, 1-Hole, Series: LCA, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 1/4 in Stud, 90 deg Tongue, 0.85 in W x 0.13 in THK Tongue, 1.47 in Overall Length, Standard, 0.98 in L Barrel, 90 deg C, 1.06 in Mounting Hole, Tin Plated Copper, Black
ARRA Compliant Y Barrel Size 0.45 in ID x 0.58 in OD x 0.98 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCA2/0-14F-X Color Black Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.35 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.70 in Length [Metric] 11.9380 cm Mounting 1 1/16 Mounting Hole Size 1.06 in Number Of Holes 1 Overall Length 1.47 in Returnable Y Series LCA Size 2/0 AWG Code Specifications 1-1/16 in L Wire Strip, Tin Plated Finish Standard CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantASTM B545-97Class CUL 486AUL 486BUL File No. E52164CSA C22.2 File No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.85 in W x 0.13 in THK Tongue Type 90 Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498355922 UPC 12 074983559220 Voltage Rating 35 V Width 3.45 in Width [Metric] 8.7630 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 2/0 AWG Conductor Type Copper/Stranded Die Code P45 Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tin plated to inhibit corrosion Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.45 in ID x 0.58 in OD x 0.98 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA2/0-14F-X |
| Color | Black |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.35 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.70 in |
| Length [Metric] | 11.9380 cm |
| Mounting | 1 1/16 |
| Mounting Hole Size | 1.06 in |
| Number Of Holes | 1 |
| Overall Length | 1.47 in |
| Returnable | Y |
| Series | LCA |
| Size | 2/0 AWG Code |
| Specifications | 1-1/16 in L Wire Strip, Tin Plated Finish |
| Standard | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantASTM B545-97Class CUL 486AUL 486BUL File No. E52164CSA C22.2 File No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.85 in W x 0.13 in THK |
| Tongue Type | 90 |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498355922 |
| UPC 12 | 074983559220 |
| Voltage Rating | 35 V |
| Width | 3.45 in |
| Width [Metric] | 8.7630 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 2/0 AWG |
| Conductor Type | Copper/Stranded |
| Die Code | P45 |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Tin plated to inhibit corrosion |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
