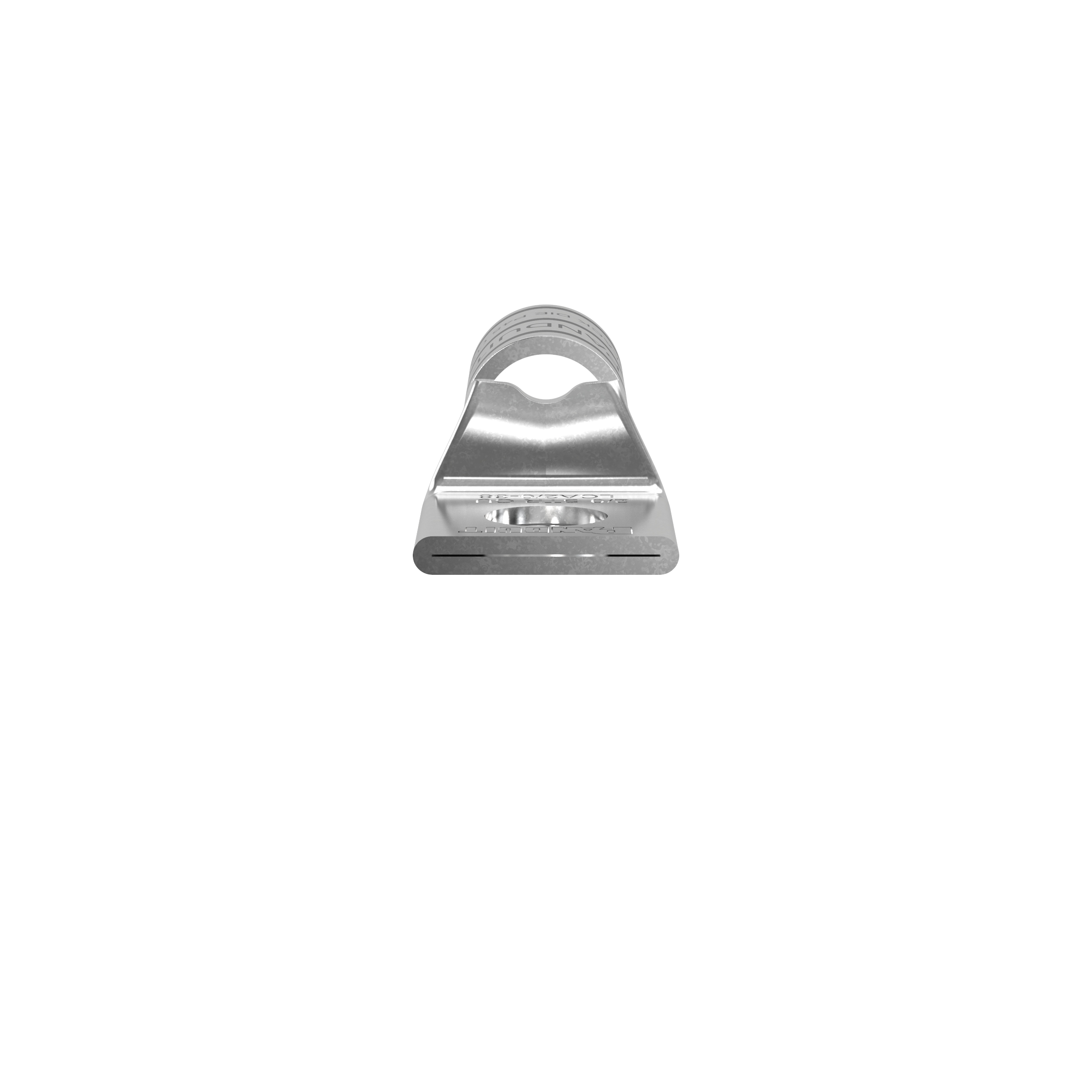

Panduit® LCA2/0-14-X LCA 1-Hole Compression Lug, 2/0 AWG Copper Conductor, 1/4 in Stud, P45, Tin Plated Copper
Custom_Product_Images_Illustration
Panduit® LCA2/0-14-X LCA 1-Hole Compression Lug, 2/0 AWG Copper Conductor, 1/4 in Stud, P45, Tin Plated Copper
SKU7065
MFGR #LCA2/0-14-X
Your Cost: $5.0515/ea($505.15 / c)
List: Panduit® Compression Lug, 1-Hole, Series: LCA, Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 1/4 in Stud, Standard Tongue, 0.85 in W x 0.13 in THK Tongue, 2.09 in Overall Length, Standard, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, 90 deg C, Tin Plated Copper, Black
Panduit® Compression Lug, 1-Hole, Series: LCA, Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 1/4 in Stud, Standard Tongue, 0.85 in W x 0.13 in THK Tongue, 2.09 in Overall Length, Standard, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, 90 deg C, Tin Plated Copper, Black
ARRA Compliant Y Barrel Size 0.45 in ID x 0.58 in OD x 0.98 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCA2/0-14-X Color Black Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.35 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.75 in Length [Metric] 12.0650 cm Mounting 1.1/16 Number Of Holes 1 Overall Length 2.09 in Returnable Y Series LCA Size 2/0 AWG Code Specifications Tin Plated Finish Standard CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 File No. 65-13NEBS Level 3ASTM B545-97 Class CUL 486A486BUL File No. E52164 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.85 in W x 0.13 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498390115 UPC 12 07498390115 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 2/0 AWG Conductor Type Copper Die Code P45 Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Straight tongue angle 1-1/16 in L wire strip Inspection window to visually assure full conductor insertion Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Tin plated to inhibit corrosion For use with stranded copper conductors Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.45 in ID x 0.58 in OD x 0.98 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA2/0-14-X |
| Color | Black |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.35 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.75 in |
| Length [Metric] | 12.0650 cm |
| Mounting | 1.1/16 |
| Number Of Holes | 1 |
| Overall Length | 2.09 in |
| Returnable | Y |
| Series | LCA |
| Size | 2/0 AWG Code |
| Specifications | Tin Plated Finish |
| Standard | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 File No. 65-13NEBS Level 3ASTM B545-97 Class CUL 486A486BUL File No. E52164 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.85 in W x 0.13 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498390115 |
| UPC 12 | 07498390115 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 2/0 AWG |
| Conductor Type | Copper |
| Die Code | P45 |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Straight tongue angle |
| 1-1/16 in L wire strip |
| Inspection window to visually assure full conductor insertion |
| Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection |
| Tin plated to inhibit corrosion |
| For use with stranded copper conductors |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
