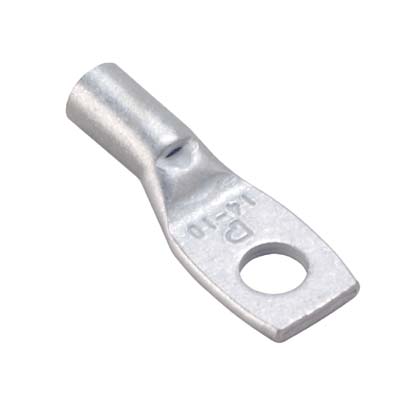

Panduit® LCA10-38-L Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 14 to 10 AWG Copper Conductor, 3/8 in Stud, Copper
Custom_Product_Images_Illustration
Panduit® LCA10-38-L Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 14 to 10 AWG Copper Conductor, 3/8 in Stud, Copper
SKU357651
MFGR #LCA10-38-L
Your Cost: $1.1889/ea($118.89 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.13 in ID x 0.22 in OD x 0.38 in L Barrel Type Standard with Inspection Window Buy American Compliant Y Catalog Number LCA10-38-L Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 1.40 in Height [Metric] 3.5560 cm Length 4.05 in Length [Metric] 10.2870 cm Mounting 42,552 Mounting Hole Size 42552 in Number Of Holes 1 Overall Length 1.38 in Returnable Y Series LCA Size #14 — #10 AWG Code STR Specifications 7/16 in L Wire Strip Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedNEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.56 in W x 0.04 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498397211 UPC 12 07498397211 Voltage Rating 35 V Width 2.05 in Width [Metric] 5.2070 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 14 to 10 AWG Conductor Type Stranded Copper Material Tin-Plated Copper Stud Size 3/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Tin plated to inhibit corrosion Inspection window to assure complete conductor insertion For use with stranded copper conductors 14 - 10 AWG stranded, 12 - 10 AWG solid conductor size Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.13 in ID x 0.22 in OD x 0.38 in L |
| Barrel Type | Standard with Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA10-38-L |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 1.40 in |
| Height [Metric] | 3.5560 cm |
| Length | 4.05 in |
| Length [Metric] | 10.2870 cm |
| Mounting | 42,552 |
| Mounting Hole Size | 42552 in |
| Number Of Holes | 1 |
| Overall Length | 1.38 in |
| Returnable | Y |
| Series | LCA |
| Size | #14 — #10 AWG Code STR |
| Specifications | 7/16 in L Wire Strip |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedNEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.56 in W x 0.04 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498397211 |
| UPC 12 | 07498397211 |
| Voltage Rating | 35 V |
| Width | 2.05 in |
| Width [Metric] | 5.2070 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 14 to 10 AWG |
| Conductor Type | Stranded Copper |
| Material | Tin-Plated Copper |
| Stud Size | 3/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Tin plated to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| 14 - 10 AWG stranded, 12 - 10 AWG solid conductor size |
| Electro Tin Plated Copper |
