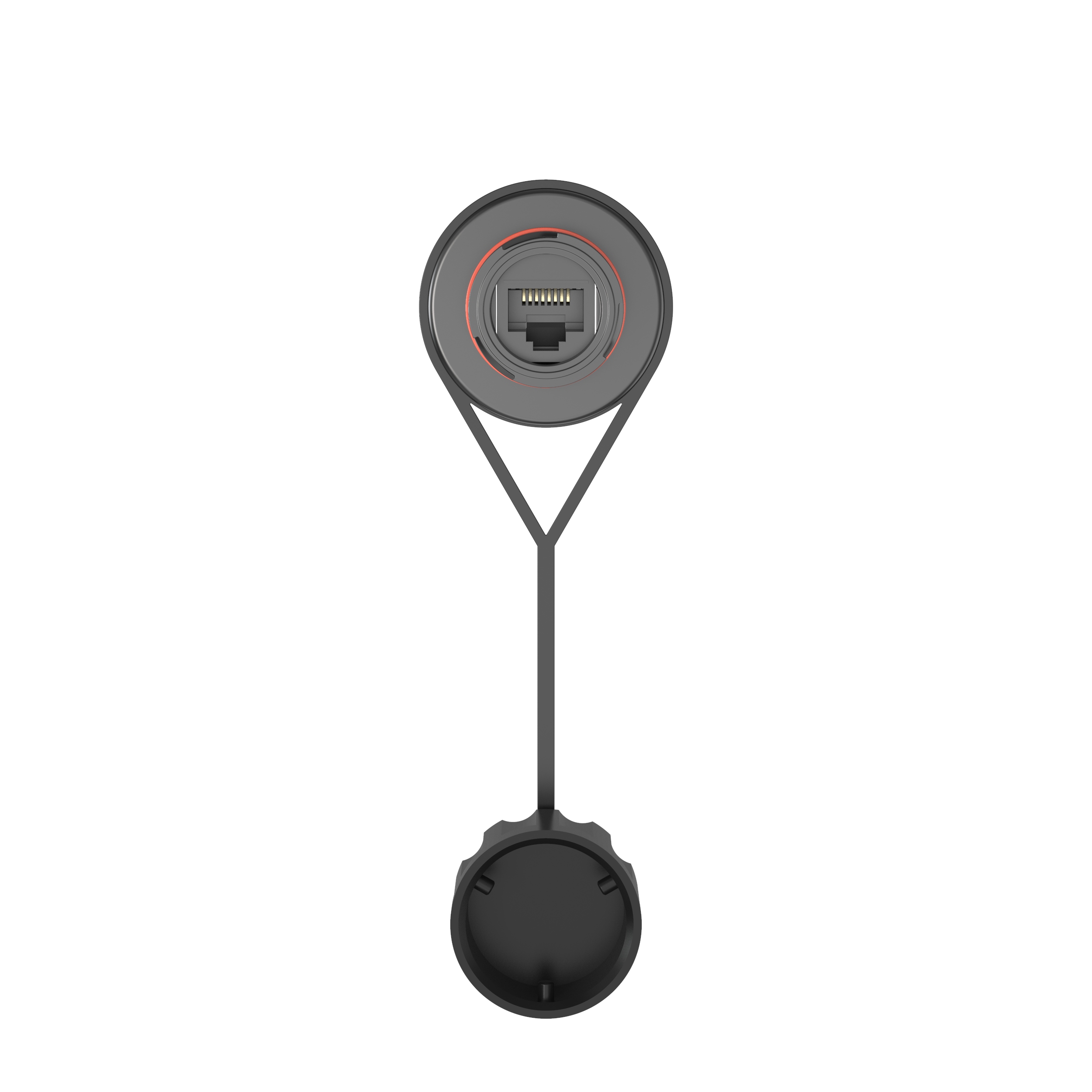

Panduit® IndustrialNet™ IAEBHC6 RJ45 Unshielded UTP Coupler Jack Module With Protective Cover, Cat 6 Module, Black
Custom_Product_Images_Illustration
Panduit® IndustrialNet™ IAEBHC6 RJ45 Unshielded UTP Coupler Jack Module With Protective Cover, Cat 6 Module, Black
SKU1029287
MFGR #IAEBHC6
$/ea
8-position, industrial connector shall be applicable for use in manufacturing environments and shall meet/exceed the ANSI/TIA-568-C.2 standard for Category 6 performance requirements. Bulkhead RJ45 jack and plug shall incorporate an IP67 rated seal and shall be designed to provide protection from dust and temporary immersion in water typically found in harsh industrial environments. Tethered protective cap shall ensure IP67 protection of the connector and plug in the unmated condition. Secondary seals on both the connector and plug shall provide an additional environmental barrier. Termination to a 4-pair 24 AWG 100 ohm twisted pair cable shall not require the use of a punchdown tool. An IP67 rating shall be achieved when mated with an IP67 and NEMA UL Type 12 industrial grade, bayonet style patch cord.
8-position, industrial connector shall be applicable for use in manufacturing environments and shall meet/exceed the ANSI/TIA-568-C.2 standard for Category 6 performance requirements. Bulkhead RJ45 jack and plug shall incorporate an IP67 rated seal and shall be designed to provide protection from dust and temporary immersion in water typically found in harsh industrial environments. Tethered protective cap shall ensure IP67 protection of the connector and plug in the unmated condition. Secondary seals on both the connector and plug shall provide an additional environmental barrier. Termination to a 4-pair 24 AWG 100 ohm twisted pair cable shall not require the use of a punchdown tool. An IP67 rating shall be achieved when mated with an IP67 and NEMA UL Type 12 industrial grade, bayonet style patch cord.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Catalog Number IAEBHC6 Country of Origin USA Depth 1.26 in Dimensions 5.36 in H x 1.67 in D Environmental Conditions Harsh Industrial EU RoHS Indicator Y Gross Weight Per Pack 0.1050 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 1.70 in Height [Metric] 4.3180 cm Length 4.90 in Length [Metric] 12.4460 cm Model Mini-Com Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/IEC 60529-2004ANSI/TIA-1096-AFCC CertifiedIEC 60603-7IP67IEEE 802.3af/802.3at Sub Brand IndustrialNet?„? Type Coupler Module UNSPSC 43223301 UPC 11 07498310480 UPC 12 07498310480 Width 4.90 in Width [Metric] 12.4460 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Green Material Copper Module Type UTP Coupler Jack/Mini-Com®/Cat 6 Number of Ports 1 Unshielded Eliminates the potential for module rotation Connector mounting nut holds bulkhead safely and securely from inside of enclosure Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord Plug contact plated with 50 micron-in of gold Provides positive reinforcement during mated condition rated to 100 mating cycles Patented Giga-TX™ technology optimizes performance by reducing conductor untwist to less than 1/8 in Speeds installation and places no impact on critical components for maximum reliability Bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in Dia mounting hole Harsh industrial environmental conditions Can terminate with standard adjustable slip jaw pliers or optional termination tool (EGJT) Termination cap is color coded for T568A and T568B wiring schemes Bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in diameter mounting hole Category 6, Minicom module
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | IAEBHC6 |
| Country of Origin | USA |
| Depth | 1.26 in |
| Dimensions | 5.36 in H x 1.67 in D |
| Environmental Conditions | Harsh Industrial |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1050 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Length | 4.90 in |
| Length [Metric] | 12.4460 cm |
| Model | Mini-Com |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/IEC 60529-2004ANSI/TIA-1096-AFCC CertifiedIEC 60603-7IP67IEEE 802.3af/802.3at |
| Sub Brand | IndustrialNet?„? |
| Type | Coupler Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498310480 |
| UPC 12 | 07498310480 |
| Width | 4.90 in |
| Width [Metric] | 12.4460 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Green |
| Material | Copper |
| Module Type | UTP Coupler Jack/Mini-Com®/Cat 6 |
| Number of Ports | 1 |
| Unshielded |
| Eliminates the potential for module rotation |
| Connector mounting nut holds bulkhead safely and securely from inside of enclosure |
| Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord |
| Plug contact plated with 50 micron-in of gold |
| Provides positive reinforcement during mated condition rated to 100 mating cycles |
| Patented Giga-TX™ technology optimizes performance by reducing conductor untwist to less than 1/8 in |
| Speeds installation and places no impact on critical components for maximum reliability |
| Bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in Dia mounting hole |
| Harsh industrial environmental conditions |
| Can terminate with standard adjustable slip jaw pliers or optional termination tool (EGJT) |
| Termination cap is color coded for T568A and T568B wiring schemes |
| Bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in diameter mounting hole |
| Category 6, Minicom module |
