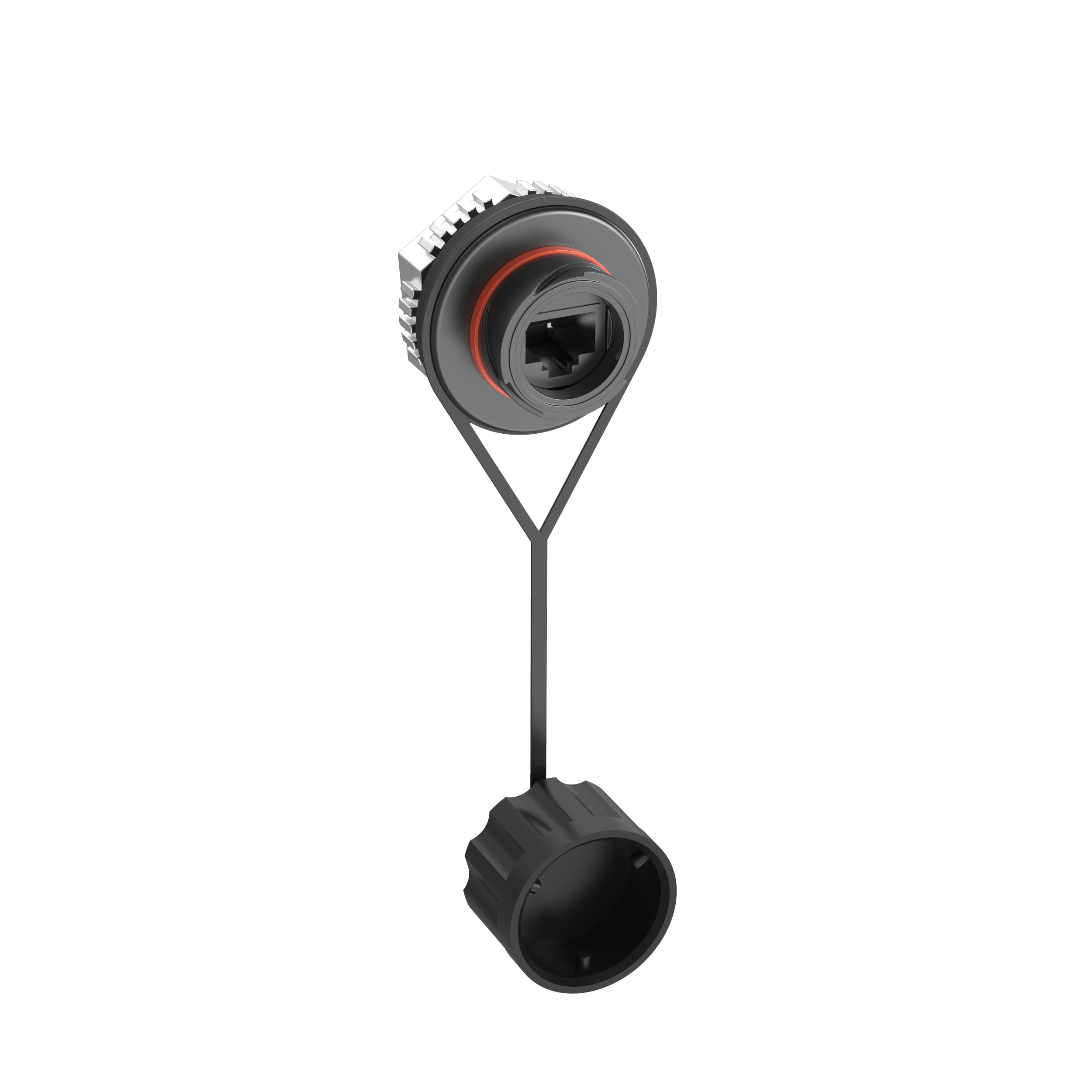

Panduit® IAEBHC5E IndustrialNet™ TX6™ RJ45 Unshielded UTP Coupler Jack Module With Protective Cover, Cat5e Module, Black
Custom_Product_Images_Illustration
Panduit® IAEBHC5E IndustrialNet™ TX6™ RJ45 Unshielded UTP Coupler Jack Module With Protective Cover, Cat5e Module, Black
SKU833883
MFGR #IAEBHC5E
$/ea
8-position, industrial connectors shall be applicable for use in manufacturing environments and shall meet/exceed the ANSI/TIA-568-C.2 standard for Category 5e performance requirements. Bulkhead RJ45 jack and plug shall incorporate an IP67 rated seal and shall be designed to provide protection from dust and temporary immersion in water typically found in harsh industrial environments. Tethered protective cap shall ensure IP67 protection of the connector and plug in the unmated condition. Secondary seals on both the connector and plug shall provide an additional environmental barrier. Termination to a 4-pair 24 AWG 100 ohm twisted pair cable shall not require the use of a punchdown tool. AN IP67 rating shall be achieved when mated with an IP67 and NEMA UL Type 12 industrial grade, bayonet style patch cord.
8-position, industrial connectors shall be applicable for use in manufacturing environments and shall meet/exceed the ANSI/TIA-568-C.2 standard for Category 5e performance requirements. Bulkhead RJ45 jack and plug shall incorporate an IP67 rated seal and shall be designed to provide protection from dust and temporary immersion in water typically found in harsh industrial environments. Tethered protective cap shall ensure IP67 protection of the connector and plug in the unmated condition. Secondary seals on both the connector and plug shall provide an additional environmental barrier. Termination to a 4-pair 24 AWG 100 ohm twisted pair cable shall not require the use of a punchdown tool. AN IP67 rating shall be achieved when mated with an IP67 and NEMA UL Type 12 industrial grade, bayonet style patch cord.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Catalog Number IAEBHC5E Country of Origin USA Depth 1.32 in Dimensions 5.33 in H x 1.32 in D Environmental Conditions Manufacturing EU RoHS Indicator Y Gross Weight Per Pack 0.1050 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Height 1.65 in Height [Metric] 4.1910 cm Length 4.90 in Length [Metric] 12.4460 cm Model Coupler Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/IEC 60529-2004ANSI/TIA-1096-AFCC CertifiedIEC 60603-7IP67IEEE 802.3af/802.3at Sub Brand IndustrialNet?„? Type Coupler Module UNSPSC 43223301 UPC 11 07498391254 UPC 12 07498391254 Width 4.10 in Width [Metric] 10.4140 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Black Material Copper Module Type UTP Coupler Jack/Cat 5e Coupler Number of Ports 1 Unshielded Barrel housing style; Supply protection circuitry: Protected against reverse polarity and transient voltages; Output protection circuitry: Protected against false pulse on power-up and continuous overload or short circuit of outputs Eliminates the potential for module rotation Connector mounting nut holds bulkhead safely and securely from inside of enclosure Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord Plug contact plated with 50 micron-in of gold Provides positive reinforcement during mated condition rated to 100 mating cycles Patented Giga-TX™ technology optimizes performance by reducing conductor untwist to less than 1/8 in Speeds installation and places no impact on critical components for maximum reliability Bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in Dia mounting hole Harsh industrial environmental conditions
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | IAEBHC5E |
| Country of Origin | USA |
| Depth | 1.32 in |
| Dimensions | 5.33 in H x 1.32 in D |
| Environmental Conditions | Manufacturing |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1050 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Height | 1.65 in |
| Height [Metric] | 4.1910 cm |
| Length | 4.90 in |
| Length [Metric] | 12.4460 cm |
| Model | Coupler |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/IEC 60529-2004ANSI/TIA-1096-AFCC CertifiedIEC 60603-7IP67IEEE 802.3af/802.3at |
| Sub Brand | IndustrialNet?„? |
| Type | Coupler Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498391254 |
| UPC 12 | 07498391254 |
| Width | 4.10 in |
| Width [Metric] | 10.4140 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Black |
| Material | Copper |
| Module Type | UTP Coupler Jack/Cat 5e Coupler |
| Number of Ports | 1 |
| Unshielded |
| Barrel housing style; Supply protection circuitry: Protected against reverse polarity and transient voltages; Output protection circuitry: Protected against false pulse on power-up and continuous overload or short circuit of outputs |
| Eliminates the potential for module rotation |
| Connector mounting nut holds bulkhead safely and securely from inside of enclosure |
| Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord |
| Plug contact plated with 50 micron-in of gold |
| Provides positive reinforcement during mated condition rated to 100 mating cycles |
| Patented Giga-TX™ technology optimizes performance by reducing conductor untwist to less than 1/8 in |
| Speeds installation and places no impact on critical components for maximum reliability |
| Bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in Dia mounting hole |
| Harsh industrial environmental conditions |
