Panduit®

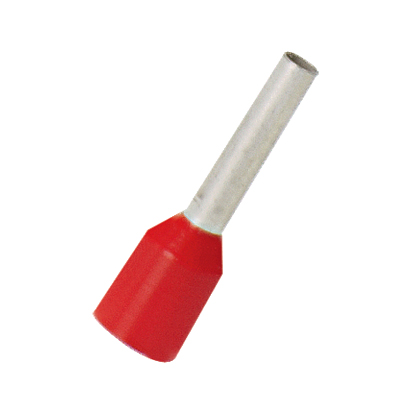

Panduit® FSDX77-8-D PAN-TERM® FSDX Expanded Sleeve Single Wire Terminal Block Ferrule, 18 AWG Stranded Copper Conductor
Custom_Product_Images_Illustration
Panduit®
Panduit® FSDX77-8-D PAN-TERM® FSDX Expanded Sleeve Single Wire Terminal Block Ferrule, 18 AWG Stranded Copper Conductor
SKU768850
MFGR #FSDX77-8-D
Your Cost: $0.0976/ea($97.64 / m)
Panduit® Pan-Term® Ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit® Pan-Term® Ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
ARRA Compliant Y Barrel Size 0.06 in ID x 0.31 in L Barrel Type Seamless Buy American Compliant Y Catalog Number FSDX77-8-D Country of Origin DEU Currency USD EU RoHS Indicator Y Finish Tin Plated Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 0.85 in Height [Metric] 2.1590 cm Insulation Polypropylene Length [Metric] 10.2870 cm Mounting 0.47 Returnable Y Series FSDX Specifications Polypropylene Insulation Standard DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F Standards ARRA, Buy American Act and RoHS Compliant, CSA C22.2 No. 291-14 Certified, DIN 46228 Part 1, UL 486F, UL 508A Listed Sub Brand Pan-Term?® Temperature Rating 221 °F Type Covered Single Wire Ferrules UNSPSC 39121409 UPC 11 07498333376 UPC 12 07498333376 Width 3.80 in Width [Metric] 9.6520 cm Wire Size 18 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Red Conductor Size 18 AWG Conductor Type Stranded Length 4.05 in Material Copper Provides a wider inside diameter to allow ferrules to fit easily over thick insulated wire, ideal for use in the US and for use with flexible wire Forms a guide for easy insertion of wire strands into the crimp barrel to enhance the installation process and improve productivity Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Expanded polypropylene sleeve, provides a wider inside diameter to allow ferrules to fit easily over thick insulated wire, ideal for use in the US and for use with flexible wire Funnel wire entry, forms a guide for easy insertion of wire strands into the crimp barrel to enhance the installation process and improve productivity Colored sleeves, allows visual color designation of wire size to aid in identification and quality inspection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.06 in ID x 0.31 in L |
| Barrel Type | Seamless |
| Buy American Compliant | Y |
| Catalog Number | FSDX77-8-D |
| Country of Origin | DEU |
| Currency | USD |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 0.85 in |
| Height [Metric] | 2.1590 cm |
| Insulation | Polypropylene |
| Length [Metric] | 10.2870 cm |
| Mounting | 0.47 |
| Returnable | Y |
| Series | FSDX |
| Specifications | Polypropylene Insulation |
| Standard | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Standards | ARRA, Buy American Act and RoHS Compliant, CSA C22.2 No. 291-14 Certified, DIN 46228 Part 1, UL 486F, UL 508A Listed |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 221 °F |
| Type | Covered Single Wire Ferrules |
| UNSPSC | 39121409 |
| UPC 11 | 07498333376 |
| UPC 12 | 07498333376 |
| Width | 3.80 in |
| Width [Metric] | 9.6520 cm |
| Wire Size | 18 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Red |
| Conductor Size | 18 AWG |
| Conductor Type | Stranded |
| Length | 4.05 in |
| Material | Copper |
| Provides a wider inside diameter to allow ferrules to fit easily over thick insulated wire, ideal for use in the US and for use with flexible wire |
| Forms a guide for easy insertion of wire strands into the crimp barrel to enhance the installation process and improve productivity |
| Funnel entry for faster insertion and lower installed cost |
| Designed with a seamless barrel to contain loose wire strands for superior terminations |
| Eases insertion of wire into terminal block |
| Expanded polypropylene sleeve, provides a wider inside diameter to allow ferrules to fit easily over thick insulated wire, ideal for use in the US and for use with flexible wire |
| Funnel wire entry, forms a guide for easy insertion of wire strands into the crimp barrel to enhance the installation process and improve productivity |
| Colored sleeves, allows visual color designation of wire size to aid in identification and quality inspection |
