Panduit®

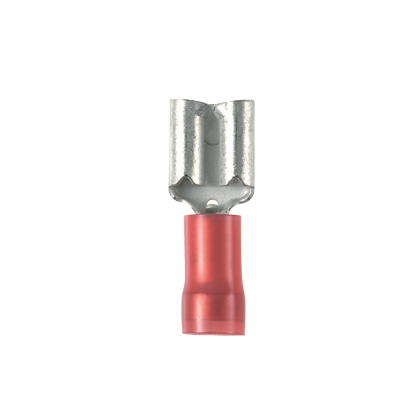

Panduit® DNF18-111-C PAN-TERM® DNF Insulated Loose Piece Female Disconnect, 22 to 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab
Custom_Product_Images_Illustration
Panduit®
Panduit® DNF18-111-C PAN-TERM® DNF Insulated Loose Piece Female Disconnect, 22 to 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab
SKU6959
MFGR #DNF18-111-C
Your Cost: $1.329/ea($132.90 / c)
Panduit® PAN-TERM® Disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon, vinyl insulation or non-insulated.
Panduit® PAN-TERM® Disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon, vinyl insulation or non-insulated.
ARRA Compliant Y Buy American Compliant Y Catalog Number DNF18-111-C Conductor Type Copper Stranded Connection Funnel Entry Country of Origin MEX Currency USD Dimensions 0.69 in L x 0.15 in W x 0.07 in H EU RoHS Indicator Y Finish Tin Plated Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1600 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Height 3.65 in Height [Metric] 9.2710 cm Insulation Nylon Length 9.25 in Length [Metric] 23.4950 cm Mounting 1932-09-01 Returnable Y Series DNF Specifications 9/32 in L Wire Strip, 0.1 in Dia Insulation Standard UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 310CSA C22.2 No.153UL 94 V-2/HB Flammability Rating Sub Brand Pan-Term?® Temperature Rating 194 °F Terminal Type Crimp Type Disconnect UNSPSC 39121409 UPC 11 07498382706 UPC 12 07498382706 Voltage Rating 300 V Width 2.15 in Width [Metric] 5.4610 cm Wire Size #18 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Barrel Type Funnel Entry/Serrated/Sleeve Color Red Conductor Size 22 to 18 AWG Material Brass Tab Size 0.11 in W x 0.02 in THK Nylon insulated Funnel entry barrel configuration Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost Insulation Grip Sleeve Internal barrel serrations assure good wire contact and maximum tensile strength Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Free hanging (in-line) mounting Suitable for use with CT-600-A, CT-1525, CT-2500 tools 100 Pieces/Bottle, Standard package
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | DNF18-111-C |
| Conductor Type | Copper Stranded |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Dimensions | 0.69 in L x 0.15 in W x 0.07 in H |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1600 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Height | 3.65 in |
| Height [Metric] | 9.2710 cm |
| Insulation | Nylon |
| Length | 9.25 in |
| Length [Metric] | 23.4950 cm |
| Mounting | 1932-09-01 |
| Returnable | Y |
| Series | DNF |
| Specifications | 9/32 in L Wire Strip, 0.1 in Dia Insulation |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 310CSA C22.2 No.153UL 94 V-2/HB Flammability Rating |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 194 °F |
| Terminal Type | Crimp |
| Type | Disconnect |
| UNSPSC | 39121409 |
| UPC 11 | 07498382706 |
| UPC 12 | 07498382706 |
| Voltage Rating | 300 V |
| Width | 2.15 in |
| Width [Metric] | 5.4610 cm |
| Wire Size | #18 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Barrel Type | Funnel Entry/Serrated/Sleeve |
| Color | Red |
| Conductor Size | 22 to 18 AWG |
| Material | Brass |
| Tab Size | 0.11 in W x 0.02 in THK |
| Nylon insulated |
| Funnel entry barrel configuration |
| Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost |
| Insulation Grip Sleeve |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection |
| Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications |
| Free hanging (in-line) mounting |
| Suitable for use with CT-600-A, CT-1525, CT-2500 tools |
| 100 Pieces/Bottle, Standard package |
