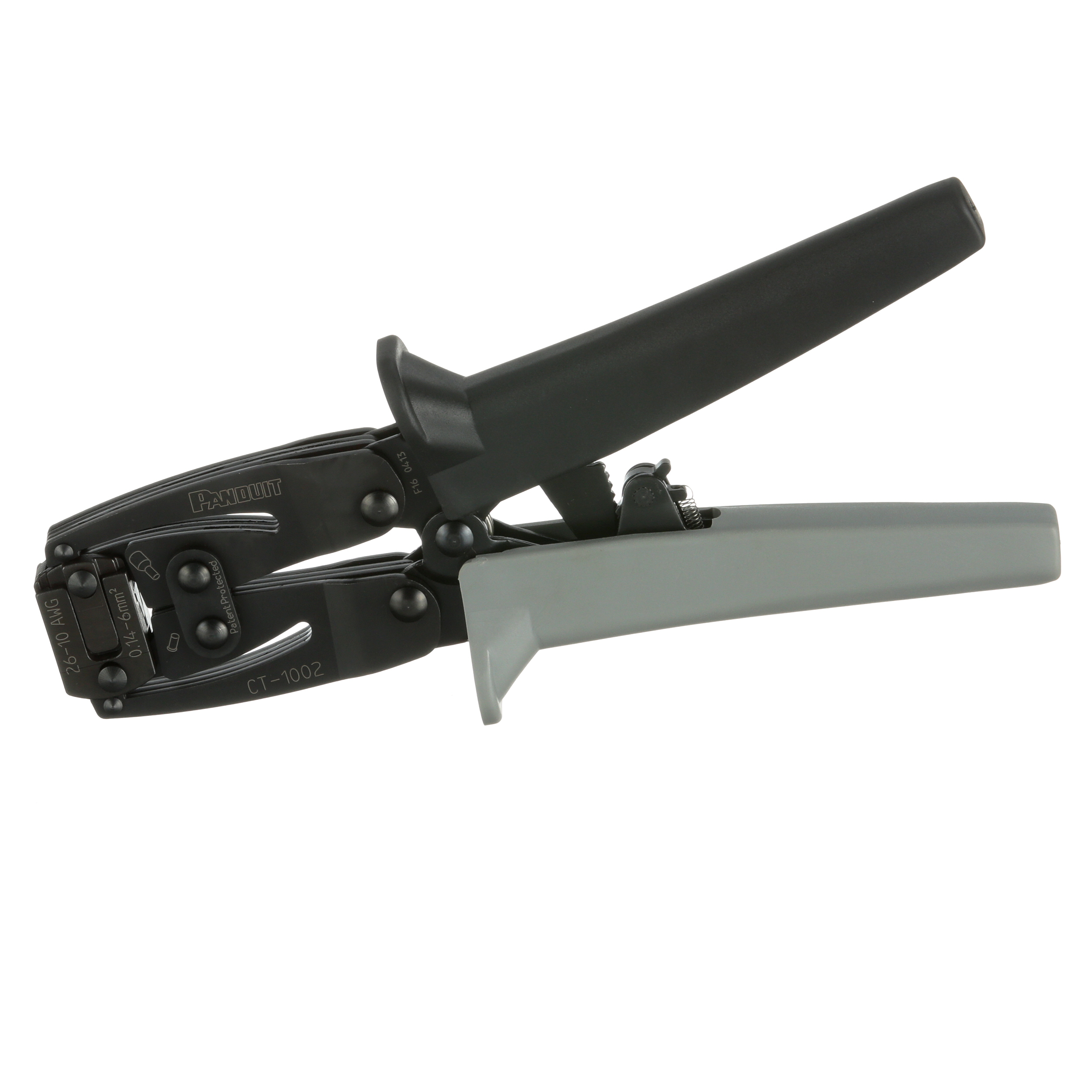

Panduit® CT-1002 Controlled Cycle Ferrule End Sleeve Crimping Tool, 26 to 10 AWG
Cable & Wire Crimpers
70930
MFG #: CT-1002
Panduit®
420.40000
/ ea
Panduit® Crimping Tool, Controlled Cycle Ferrule End Sleeve, 26 to 10 AWG, 8.27 in Overall Length, Cushion Grip/Ergonomic Handle, 2.17 in W Handle, Steel Body
- Brochure URL - D-TMSG10--SA-ENG-TerminalMaterial-W.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_22e8843f8350f1bd9679a656b7c32627557993e03fccd045d6487ec375ec7db9.pdf(Catalog URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - C-TMCT-1002--ENG.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Owners Manual URL - 100534915.pdf(Owners Manual URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/8/08/608/4608/110114608.mp4(Video)
- Video - http://www.panduit.com/heiler/Videos/M-TMBS10-D-SDOC--169-ENG.mp4(Video)
- Tech Drawing URL - 10965_UY24A79CQ1DWLTPO.pdf(Tech Drawing URL)
- Tech Bulletin URL - 10965_OZARH6X40GJ8TVMN.pdf(Tech Bulletin URL)
- Spec Sheet URL - 10965_59KDY2F067RBNGC3.pdf(Spec Sheet URL)
- Spec Sheet URL - D-TMSP03--WW-ENG-FerruleswSleevShtCirProt-W.pdf(Spec Sheet URL)
- Owners Manual URL - 10965_U1BJ9QPSIDMKFYEL.pdf(Owners Manual URL)
- Tech Bulletin URL - WW-TMCB05 WEB 8-16-10.pdf(Tech Bulletin URL)
- Applications
- Features
| Pan-Term Ferrules |
| Provides a wider inside diameter to allow ferrules to fit easily over THK insulated wire, ideal for use in the U.S and for use with flexible wire |
| Controlled cycle mechanism assures high quality, consistent terminations |
| Ergonomic tool design assures operator comfort, safety and performance |
| Multi-position locator facilitates a high quality repeatable crimp |
| The controlled cycle crimp tool has a trapezoidal profile and is designed for strength and durability |
| It is intended for 26 to 10 AWG (0.14 to 6.0 sq-mm) insulated and non-insulated single wire ferrules and 22 to 12 AWG (0.50 to 4.0 sq-mm) insulated twin wire ferrules |
| The crimp tool is 8.27 in L and 2.17 in W with a closed handle |
| The crimp tool weighs 10.6 oz and has an ergonomic design that assures operator comfort, safety and performance |
