Panduit®

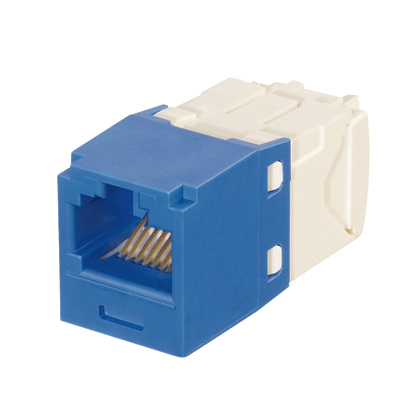

Panduit® CJK688TGBU Mini-Com® Unshielded Universal UTP Jack Module, Cat6 Module, Surface Mount, 1 Port, ABS, Blue
Custom_Product_Images_Illustration
Panduit®
Panduit® CJK688TGBU Mini-Com® Unshielded Universal UTP Jack Module, Cat6 Module, Surface Mount, 1 Port, ABS, Blue
SKU984199
MFGR #CJK688TGBU
Your Cost: $18.77/ea
List: Category 6/Class E, 8-position keyed UTP jack modules shall terminate unshielded twisted 4-pair, 22-26 AWG, 100 ohm cable without the use of a punchdown tool. The jack module shall be mechanically keyed with color-specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. The forward motion termination method shall optimize performance by maintaining cable pair geometry and eliminating conductor untwist. The white termination cap shall be color-coded for T568A and T568B wiring schemes.
Category 6/Class E, 8-position keyed UTP jack modules shall terminate unshielded twisted 4-pair, 22-26 AWG, 100 ohm cable without the use of a punchdown tool. The jack module shall be mechanically keyed with color-specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. The forward motion termination method shall optimize performance by maintaining cable pair geometry and eliminating conductor untwist. The white termination cap shall be color-coded for T568A and T568B wiring schemes.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Cable Entry T568A/T568B Catalog Number CJK688TGBU Country of Origin USA Currency USD Depth 1.75 in Dimensions 0.71 in H x 0.62 in W x 1.5 in D in EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0190 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 0.50 in Height [Metric] 1.2700 cm Length 3.50 in Length [Metric] 8.8900 cm Model Mini-Com® Returnable Y Series Mini-Com Standard Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Standards ARRABuy American Act and RoHS CompliantANSI/TIA/EIA-568-B.2-1FCC CertifiedANSI/TIA-968-AIEC 60603-7IEEE 802.3afIEEE 802.3atUL 1863 Sub Brand Pan-Net?® Type Jack Module UNSPSC 43223301 UPC 11 07498309704 UPC 12 074983097043 Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Blue Material ABS/Polycarbonate Module Type Cat 6/Mini-Com® Mounting Type Surface Number of Ports 1 Unshielded Mechanically and visually distinguish connections to prevent unintentional insertion into unlike keyed or non keyed ports, all network design flexibility and versatility and accommodate more discrete networks Confidence that each jack module will deliver the critical electrical performance requirements Shortens the tuning length of the jack module enabling higher performance Wire cap optimizes performance by eliminating conductor untwist and reduces installation time and expense; simplifies termination and maintains conductor twists for reliable and consistent terminations Controls cable bend radius for long term installed performance Jack modules snap in and out of Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes Marked with quality control number for future traceability Prevents standard RJ11 modular plugs from mating with keyed jack modules Prevents standard RJ11 modular plugs from mating with keyed jack modules 8-position, 8-wire, keyed T568A/T568B wiring scheme -14 to 14 deg F operating temperature, -4 to 158 deg F storage temperature ABS Module Housing, PC Wire Cap, PC Strain Relief Clip
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Cable Entry | T568A/T568B |
| Catalog Number | CJK688TGBU |
| Country of Origin | USA |
| Currency | USD |
| Depth | 1.75 in |
| Dimensions | 0.71 in H x 0.62 in W x 1.5 in D in |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0190 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 0.50 in |
| Height [Metric] | 1.2700 cm |
| Length | 3.50 in |
| Length [Metric] | 8.8900 cm |
| Model | Mini-Com® |
| Returnable | Y |
| Series | Mini-Com |
| Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS |
| Standards | ARRABuy American Act and RoHS CompliantANSI/TIA/EIA-568-B.2-1FCC CertifiedANSI/TIA-968-AIEC 60603-7IEEE 802.3afIEEE 802.3atUL 1863 |
| Sub Brand | Pan-Net?® |
| Type | Jack Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498309704 |
| UPC 12 | 074983097043 |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Blue |
| Material | ABS/Polycarbonate |
| Module Type | Cat 6/Mini-Com® |
| Mounting Type | Surface |
| Number of Ports | 1 |
| Unshielded |
| Mechanically and visually distinguish connections to prevent unintentional insertion into unlike keyed or non keyed ports, all network design flexibility and versatility and accommodate more discrete networks |
| Confidence that each jack module will deliver the critical electrical performance requirements |
| Shortens the tuning length of the jack module enabling higher performance |
| Wire cap optimizes performance by eliminating conductor untwist and reduces installation time and expense; simplifies termination and maintains conductor twists for reliable and consistent terminations |
| Controls cable bend radius for long term installed performance |
| Jack modules snap in and out of Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes |
| Marked with quality control number for future traceability |
| Prevents standard RJ11 modular plugs from mating with keyed jack modules |
| Prevents standard RJ11 modular plugs from mating with keyed jack modules |
| 8-position, 8-wire, keyed |
| T568A/T568B wiring scheme |
| -14 to 14 deg F operating temperature, -4 to 158 deg F storage temperature |
| ABS Module Housing, PC Wire Cap, PC Strain Relief Clip |
