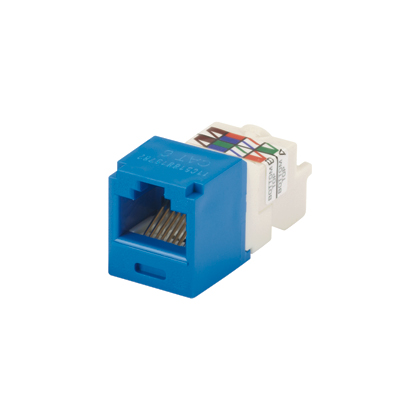

Panduit® CJ688TPBU Mini-Com® RJ45 Universal Unshielded UTP Jack Module, Cat6 Module, Surface Mount, 1 Port, ABS, Blue
UTP Jack Inserts
346115
MFG #: CJ688TPBU
Panduit®
17.53000
/ ea
Category 6/Class E, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_CBQUIRK84ZGFV7WN.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Install Instructions URL - N-COPN307--RevK--ENG.pdf(Install Instructions URL)
- Install Instructions 1 URL - C-COCJ688TPXX--ENG.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10965_6MBCAISFL1Q7NHTR.pdf(Spec Sheet URL)
- Spec Sheet URL - Approved Category 6 Test Leads.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_DK04MJULZQBSVRE1.pdf(Tech Drawing URL)
- Spec Sheet URL - 10965_TVGF92OZR3L7HQAM.pdf(Spec Sheet URL)
- Applications
- Features
| Unshielded |
| Confidence that each jack module will deliver the critical electrical performance requirements |
| Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense |
| UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes |
| Marked with quality control number for future traceability |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| Controls cable bend radius for long term installed performance |
| Can be clearly identified with optional labels and icons for port identification |
| CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability (Optional) |
| Provides a simple and secure method to control access to data ports while not in use (optional) |
| 8-position, 8-wire |
| -14 to 14 deg F operating temperature, -4 to 158 deg F storage temperature |
| Category 6, Minicom module |
| ABS Module Housing, Polycarbonate Wire Cap |
