Panduit®

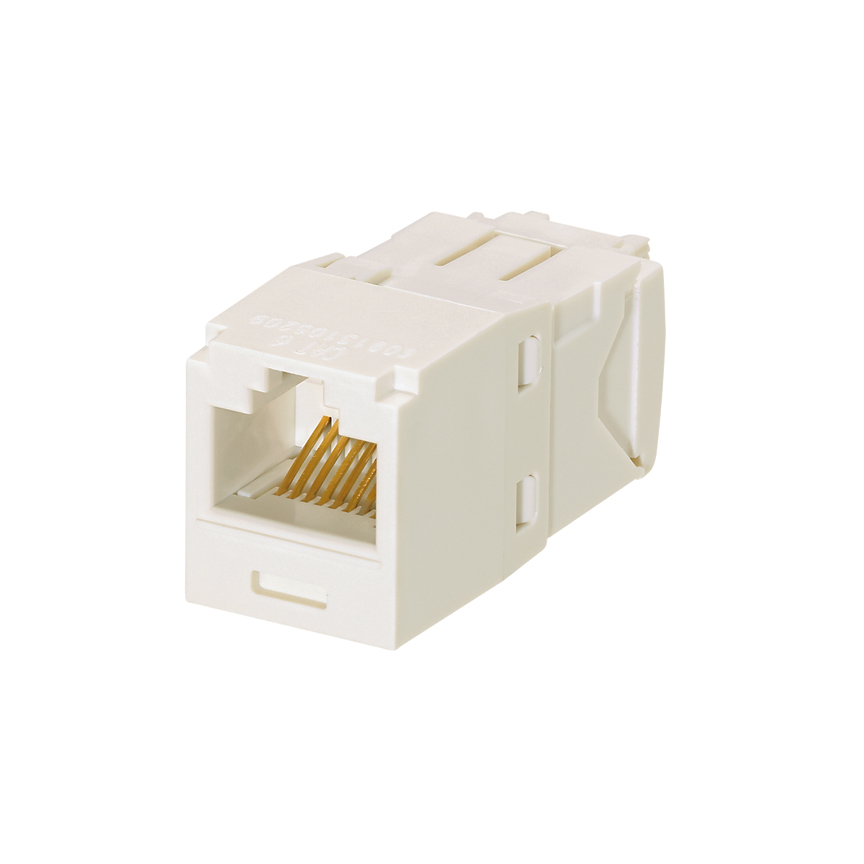

Panduit® CJ688TGIW Mini-Com® RJ45 Universal Unshielded UTP Jack Module, Cat 6 Module, Surface Mount, 1 Port, ABS, Off-White
Custom_Product_Images_Illustration
Panduit®
Panduit® CJ688TGIW Mini-Com® RJ45 Universal Unshielded UTP Jack Module, Cat 6 Module, Surface Mount, 1 Port, ABS, Off-White
SKU381105
MFGR #CJ688TGIW
Your Cost: $15.00/ea
List: Category 6/Class E, 8-position, UTP jack module shall terminate 4-pair, 22 - 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
Category 6/Class E, 8-position, UTP jack module shall terminate 4-pair, 22 - 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Cable Entry T568A/T568B Catalog Number CJ688TGIW Country of Origin USA Currency USD Depth 1.5 in Dimensions 0.71 in H x 0.62 in W x 1.5 in D EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0240 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 0.75 in Height [Metric] 1.9050 cm Length 3.45 in Length [Metric] 8.7630 cm Model Mini-Com® Returnable Y Slot Capacity 1 Standards ARRA CompliantBuy American Act CompliantRoHS Compliant, UL 1863, 2043, ANSI/TIA-568-C.2, ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-99-001 Sub Brand Pan-Net?® Type Jack Module UNSPSC 43223301 UPC 11 07498339550 UPC 12 074983395507 Width 2.85 in Width [Metric] 7.2390 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Off-White Material ABS/Polycarbonate Module Type Cat6/Mini-Com® Mounting Type Surface Number of Ports 1 Unshielded Confidence that each jack module will deliver the critical electrical performance requirements Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes Marked with quality control number for future traceability Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible Can be clearly identified with optional labels and icons for port identification Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability, TGJT termination tool ideal for high volume installations Provides a simple and secure method to control access to data ports while not in use Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically T568A/T568B wiring scheme -14 to 149 deg F operating temperature, -40 to 158 deg F storage Temperature 8-position, 8-wire, TG style ABS Module Housing, Plastic Wire Cap/Strain Relief Clip
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Cable Entry | T568A/T568B |
| Catalog Number | CJ688TGIW |
| Country of Origin | USA |
| Currency | USD |
| Depth | 1.5 in |
| Dimensions | 0.71 in H x 0.62 in W x 1.5 in D |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0240 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 0.75 in |
| Height [Metric] | 1.9050 cm |
| Length | 3.45 in |
| Length [Metric] | 8.7630 cm |
| Model | Mini-Com® |
| Returnable | Y |
| Slot Capacity | 1 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS Compliant, UL 1863, 2043, ANSI/TIA-568-C.2, ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-99-001 |
| Sub Brand | Pan-Net?® |
| Type | Jack Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498339550 |
| UPC 12 | 074983395507 |
| Width | 2.85 in |
| Width [Metric] | 7.2390 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Off-White |
| Material | ABS/Polycarbonate |
| Module Type | Cat6/Mini-Com® |
| Mounting Type | Surface |
| Number of Ports | 1 |
| Unshielded |
| Confidence that each jack module will deliver the critical electrical performance requirements |
| Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense |
| UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes |
| Marked with quality control number for future traceability |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated |
| EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability, TGJT termination tool ideal for high volume installations |
| Provides a simple and secure method to control access to data ports while not in use |
| Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically |
| Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically |
| T568A/T568B wiring scheme |
| -14 to 149 deg F operating temperature, -40 to 158 deg F storage Temperature |
| 8-position, 8-wire, TG style |
| ABS Module Housing, Plastic Wire Cap/Strain Relief Clip |
