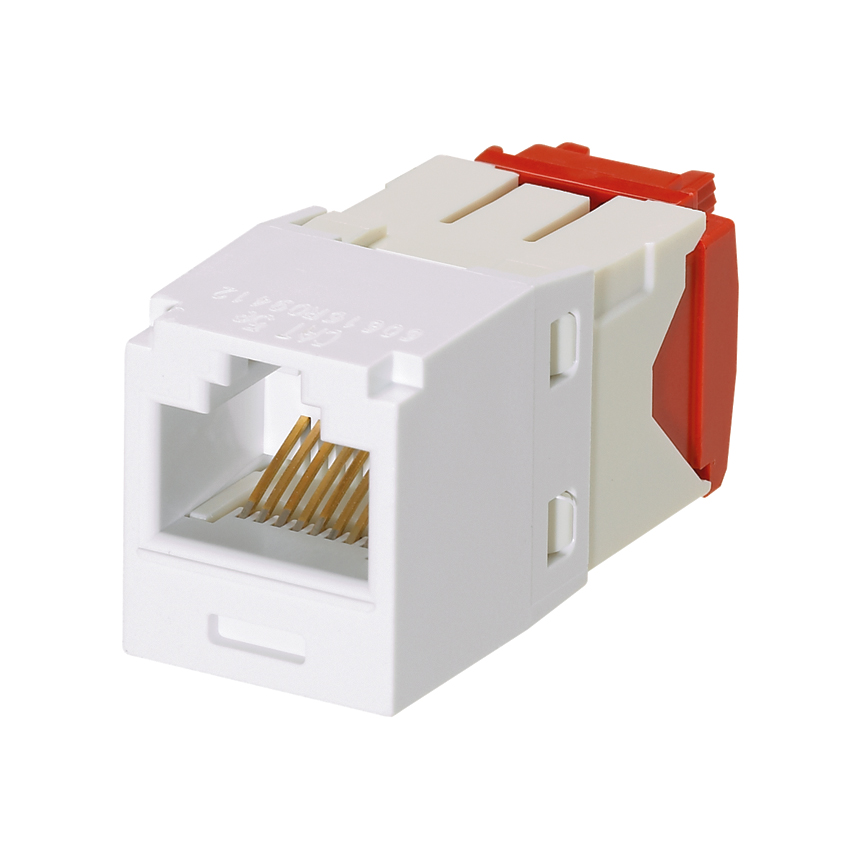

Panduit® CJ5E88TGWH Mini-Com® RJ45 Universal Unshielded UTP Jack Module, Cat5e Module, Surface Mount, 1 Port, ABS, White
UTP Jack Inserts
278111
MFG #: CJ5E88TGWH
Panduit®
11.06000
/ ea
Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded red to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
- Brochure URL - 10965_FNKZWX8CO04JY37A.pdf(Brochure URL)
- Brochure URL - D-COSG09--WW-ENG-JackModSelectionGuide.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_418e81e7c5a801a423063811cad770d711ed9bfbbb912cbba167fb11727e8ae1.pdf(Catalog URL)
- Full Eng Drawing URL - C-COCJ5E88TXX--ENG.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_VON7T0PGSEAMY8F3.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - C-COCJ5E88TGXX--ENG.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-COPN403--RevN--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10965_5PO3CQX94YVT2SI6.pdf(Spec Sheet URL)
- Tech Drawing URL - C-COCJ5E88TG--ENG.pdf(Tech Drawing URL)
- Spec Sheet URL - D-COSP393--WW-ENG-TX5500UTPCopperCableW.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_AFVBEZSWTXI73YO4.dxf(Tech Drawing URL)
- Video - http://www.panduit.com/heiler/Videos/M-COTGtermination--169-ENG.mp4(Video)
- Tech Bulletin URL - 10965_H0QKDUWFABZY7V2M.pdf(Tech Bulletin URL)
- Spec Sheet URL - 10965_WOFZV0BCQ859I6NM.pdf(Spec Sheet URL)
- Spec Sheet 1 URL - Panduit_CJ5E88TGBL_Selection_Guide.pdf(Spec Sheet 1 URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/1/91/591/5591/100245591.mp4(Video)
- Tech Drawing 1 URL - ID-DRW-v1-C-COCJ5E88TGXX--ENG.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10965_CAYUWJKT1SX0EN6M.pdf(Tech Drawing URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/9/69/669/7669/110937669.mp4(Video)
- Tech Bulletin URL - D-COCB23--WW-ENG-TGTerminationTool-W.pdf(Tech Bulletin URL)
- Applications
- Features
| Unshielded |
| Confidence that each jack module will deliver the critical electrical performance requirements |
| Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense |
| Conductor retention slots simplify jack module termination |
| UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes |
| Controls cable bend radius for long term installed performance |
| Marked with quality control number for future traceability |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| Color specific keys with positive and negative keying features mechanically and visually distinguish connections to prevent unintentional mating with unlike keyed or non-keyed modular plugs, offering network design flexibility, versatility, accommodating discrete networks for enhanced security |
| Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated |
| Provides a simple and secure method to control access to data ports while not in use |
| Integrated shuttered door keeps out dust and debris of unmated RJ45 jack modules |
| -14 to 149 deg F operating temperature |
| 8-position, 8-wire, TG style termination style, Bus (jack) model |
| 568A/T568B wiring scheme |
| ABS Module Housing, Plastic Wire Cap/Strain Relief Clip |
