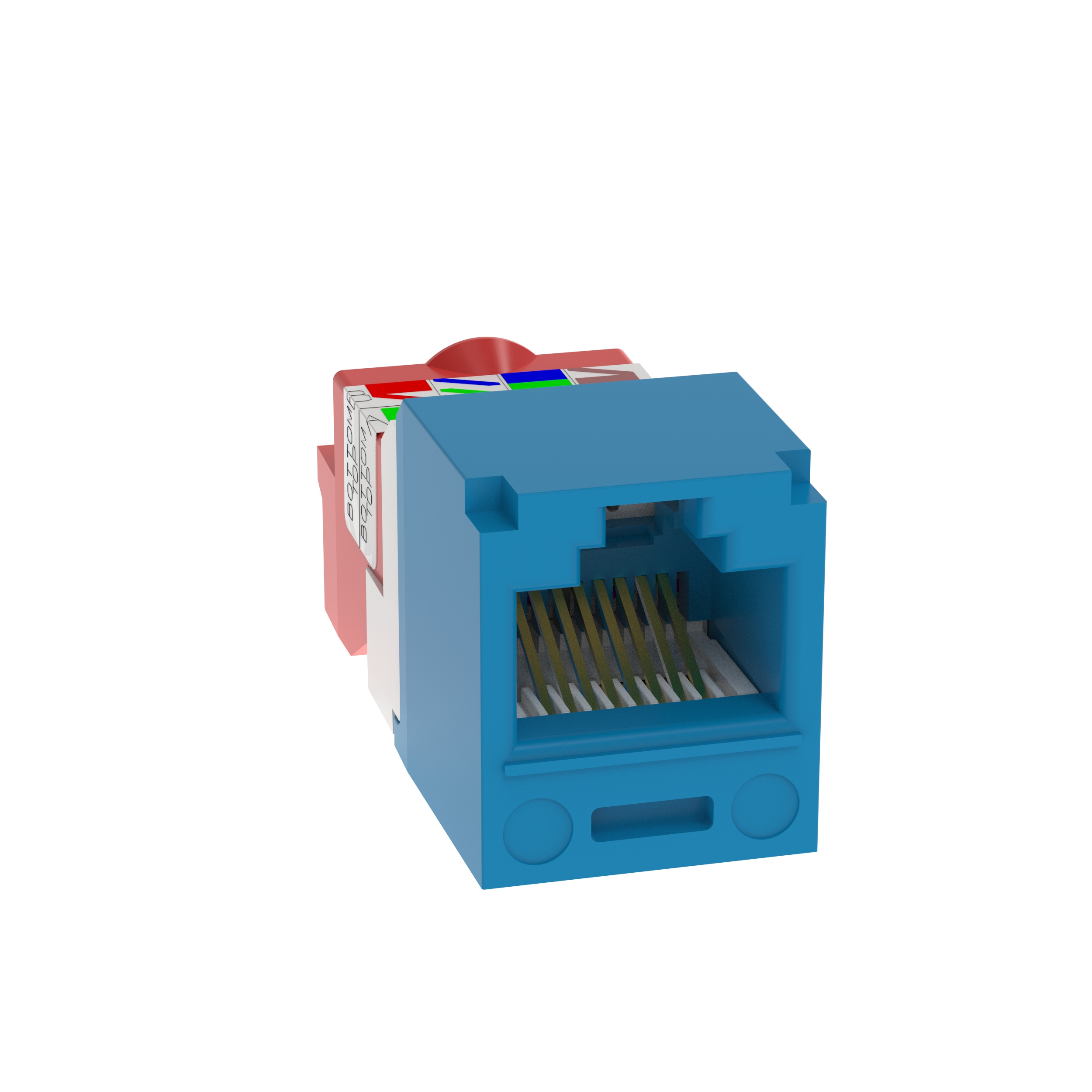

Panduit® CJ5E88TBU Mini-Com® T Style Universal Unshielded UTP Jack Module, Cat5e Module, Surface Mount, 1 Port, ABS, Blue
Custom_Product_Images_Illustration
Panduit® CJ5E88TBU Mini-Com® T Style Universal Unshielded UTP Jack Module, Cat5e Module, Surface Mount, 1 Port, ABS, Blue
SKU143918
MFGR #CJ5E88TBU
Your Cost: $13.86/ea
List: Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded red to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded red to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Cable Entry T568A/T568B Catalog Number CJ5E88TBU Country of Origin USA Currency USD Depth 1.43 in Dimensions 0.71 in H x 0.62 in W x 1.43 in D EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0270 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 0.90 in Height [Metric] 2.2860 cm Length 3.55 in Length [Metric] 9.0170 cm Model Mini-Com® Returnable N Slot Capacity 1 Standard Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2, 1096-AFCC CompliantIEC 60603-7UL 1863 Sub Brand Pan-Net?® Type Jack Module UNSPSC 43223301 UPC 11 07498377140 UPC 12 074983771400 Width 2.65 in Width [Metric] 6.7310 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Blue Material ABS Module Type Cat5e/Mini-Com® Mounting Type Surface Number of Ports 1 Unshielded Confidence that each jack module will deliver the critical electrical performance requirements Optimizes performance by eliminating conductor untwist and reduces installation time and expense Conductor retention slots simplify jack module termination UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes Controls cable bend radius for long term installed performance Marked with quality control number for future traceability Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible Can be clearly identified with optional labels and icons for port identification CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability Provides a simple and secure method to control access to data ports while not in use T568A/T568B wiring scheme, jack module Category 5e, Minicom module
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Cable Entry | T568A/T568B |
| Catalog Number | CJ5E88TBU |
| Country of Origin | USA |
| Currency | USD |
| Depth | 1.43 in |
| Dimensions | 0.71 in H x 0.62 in W x 1.43 in D |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0270 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 0.90 in |
| Height [Metric] | 2.2860 cm |
| Length | 3.55 in |
| Length [Metric] | 9.0170 cm |
| Model | Mini-Com® |
| Returnable | N |
| Slot Capacity | 1 |
| Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2, 1096-AFCC CompliantIEC 60603-7UL 1863 |
| Sub Brand | Pan-Net?® |
| Type | Jack Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498377140 |
| UPC 12 | 074983771400 |
| Width | 2.65 in |
| Width [Metric] | 6.7310 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Blue |
| Material | ABS |
| Module Type | Cat5e/Mini-Com® |
| Mounting Type | Surface |
| Number of Ports | 1 |
| Unshielded |
| Confidence that each jack module will deliver the critical electrical performance requirements |
| Optimizes performance by eliminating conductor untwist and reduces installation time and expense |
| Conductor retention slots simplify jack module termination |
| UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes |
| Controls cable bend radius for long term installed performance |
| Marked with quality control number for future traceability |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability |
| Provides a simple and secure method to control access to data ports while not in use |
| T568A/T568B wiring scheme, jack module |
| Category 5e, Minicom module |
