Panduit®

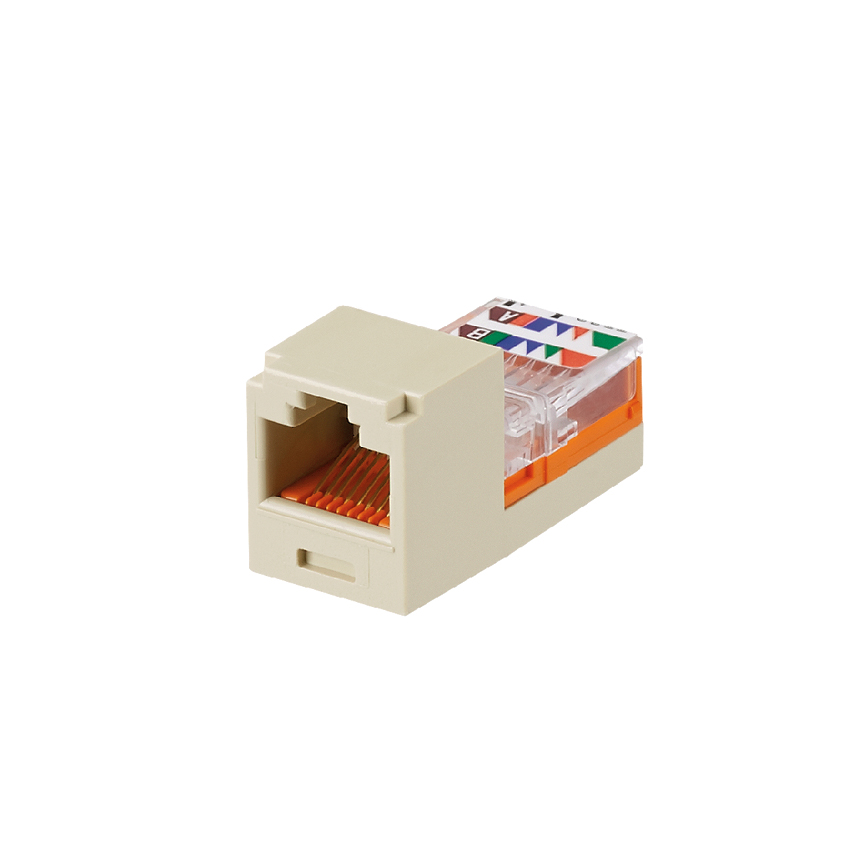

Panduit® CJ588EIY Mini-Com® RJ45 Universal Unshielded UTP Jack Module, Cat5e Module, Surface Mount, 1 Port, ABS, Electric Ivory
Custom_Product_Images_Illustration
Panduit®
Panduit® CJ588EIY Mini-Com® RJ45 Universal Unshielded UTP Jack Module, Cat5e Module, Surface Mount, 1 Port, ABS, Electric Ivory
SKU732774
MFGR #CJ588EIY
Your Cost: $11.06/ea
List: Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a downward forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The module base sled shall be color-coded orange to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a downward forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The module base sled shall be color-coded orange to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Cable Entry T568A/T568B Catalog Number CJ588EIY Country of Origin CHN Currency USD Depth 1.37 in Dimensions 0.72 in H x 0.62 in W x 1.37 in D EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0260 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 0.80 in Height [Metric] 2.0320 cm Length 3.50 in Length [Metric] 8.8900 cm Model Mini-Com® Returnable Y Slot Capacity 1 Standard Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2, 968-AIEC 60603-7IEEE 802.3af, 802.3atUL 1863 Sub Brand Pan-Net?® Type Jack Module UNSPSC 43223301 UPC 11 07498303488 UPC 12 07498303488 Width 3.20 in Width [Metric] 8.1280 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Electric Ivory Material ABS Module Type Cat 5e/Mini-Com® Mounting Type Surface Number of Ports 1 Unshielded Enables easy troubleshooting and eases conductor alignment during termination UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes Controls cable bend radius for long term installed performance Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible Can be clearly identified with optional labels and icons for port identification CJT-X termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability Provides a simple and secure method to control access to data ports while not in use (optional) 8-position, 8-wire, lead frame, Bus (jack) model 568A/T568B wiring scheme Leadframe termination style Category 5e/Class D module
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Cable Entry | T568A/T568B |
| Catalog Number | CJ588EIY |
| Country of Origin | CHN |
| Currency | USD |
| Depth | 1.37 in |
| Dimensions | 0.72 in H x 0.62 in W x 1.37 in D |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0260 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 0.80 in |
| Height [Metric] | 2.0320 cm |
| Length | 3.50 in |
| Length [Metric] | 8.8900 cm |
| Model | Mini-Com® |
| Returnable | Y |
| Slot Capacity | 1 |
| Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2, 968-AIEC 60603-7IEEE 802.3af, 802.3atUL 1863 |
| Sub Brand | Pan-Net?® |
| Type | Jack Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498303488 |
| UPC 12 | 07498303488 |
| Width | 3.20 in |
| Width [Metric] | 8.1280 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Electric Ivory |
| Material | ABS |
| Module Type | Cat 5e/Mini-Com® |
| Mounting Type | Surface |
| Number of Ports | 1 |
| Unshielded |
| Enables easy troubleshooting and eases conductor alignment during termination |
| UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes |
| Controls cable bend radius for long term installed performance |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| CJT-X termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability |
| Provides a simple and secure method to control access to data ports while not in use (optional) |
| 8-position, 8-wire, lead frame, Bus (jack) model |
| 568A/T568B wiring scheme |
| Leadframe termination style |
| Category 5e/Class D module |
