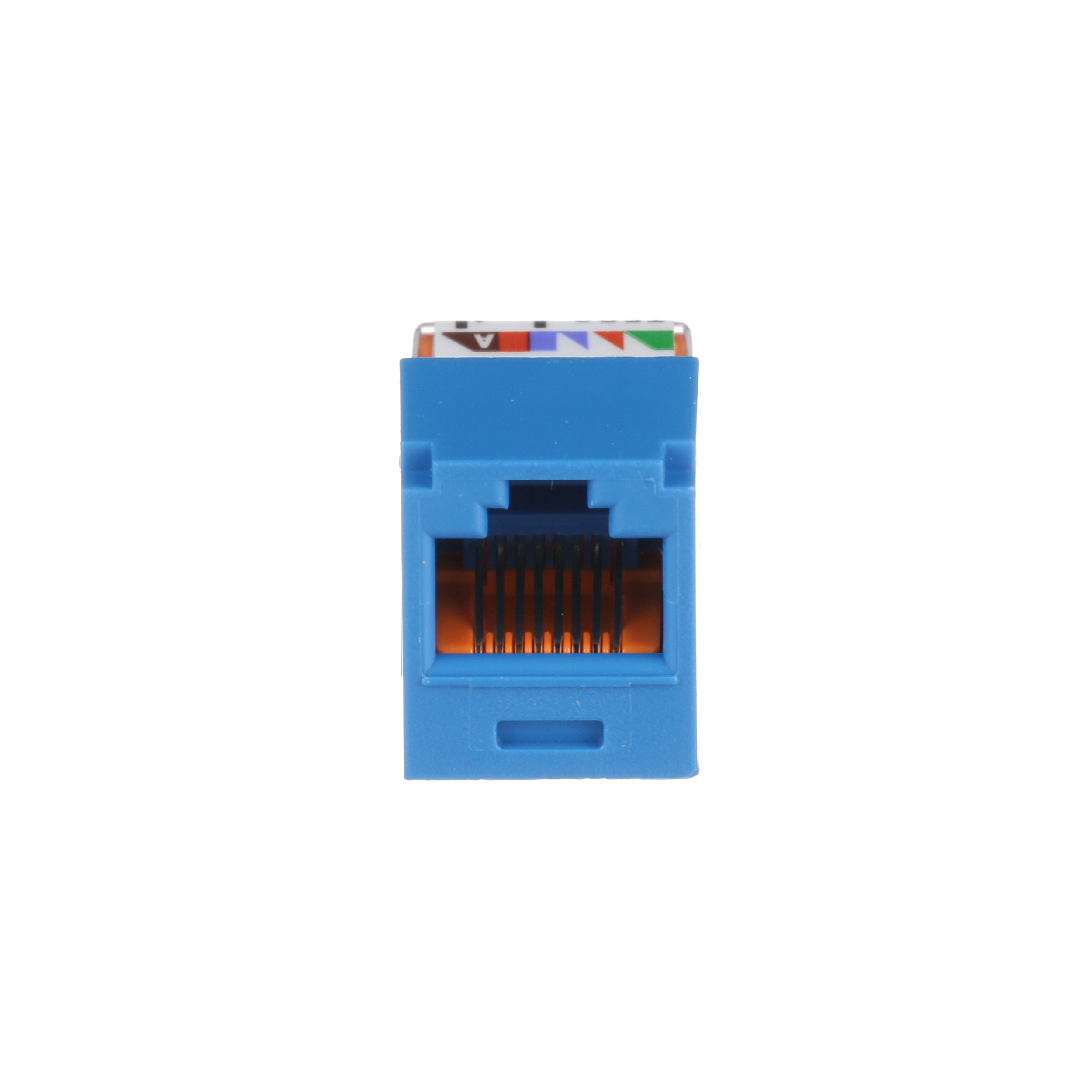

Panduit® CJ588BUY Mini-Com® RJ45 Universal Unshielded UTP Jack Module, Cat5e Module, Surface Mount, 1 Port, ABS, Blue
UTP Jack Inserts
505211
MFG #: CJ588BUY
Panduit®
11.06000
/ ea
Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a downward forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The module base sled shall be color-coded orange to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
- Full Eng Drawing URL - C-COCJ6X88TG--ENG.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_NB0QD87J3W2ORKMA.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_UWQTC24EA0IORJYX.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - C-COCJ588XXY--ENG.pdf(Install Instructions 1 URL)
- Install Instructions URL - PN45H.pdf(Install Instructions URL)
- Spec Sheet URL - 10965_AIMSNTPLQ7CK5E0H.pdf(Spec Sheet URL)
- Spec Sheet URL - Mini-Com Mini-Jack TX5e UTP Jack Modules (Leadframe) (WW-COSP179) 111110.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_JUXHYBO0M86Q5CV1.pdf(Tech Drawing URL)
- Tech Drawing URL - 10965_Z7H1U3C5AQN0D6SL.pdf(Tech Drawing URL)
- Applications
- Features
| Unshielded |
| Enables easy troubleshooting and eases conductor alignment during termination |
| UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes |
| Controls cable bend radius for long term installed performance |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| CJT-X termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability |
| Provides a simple and secure method to control access to data ports while not in use (optional) |
| 8-position, 8-wire, lead frame, Bus (jack) model |
| 568A/T568B wiring scheme |
| Leadframe termination style |
| Category 5e/Class D module |
