Panduit®

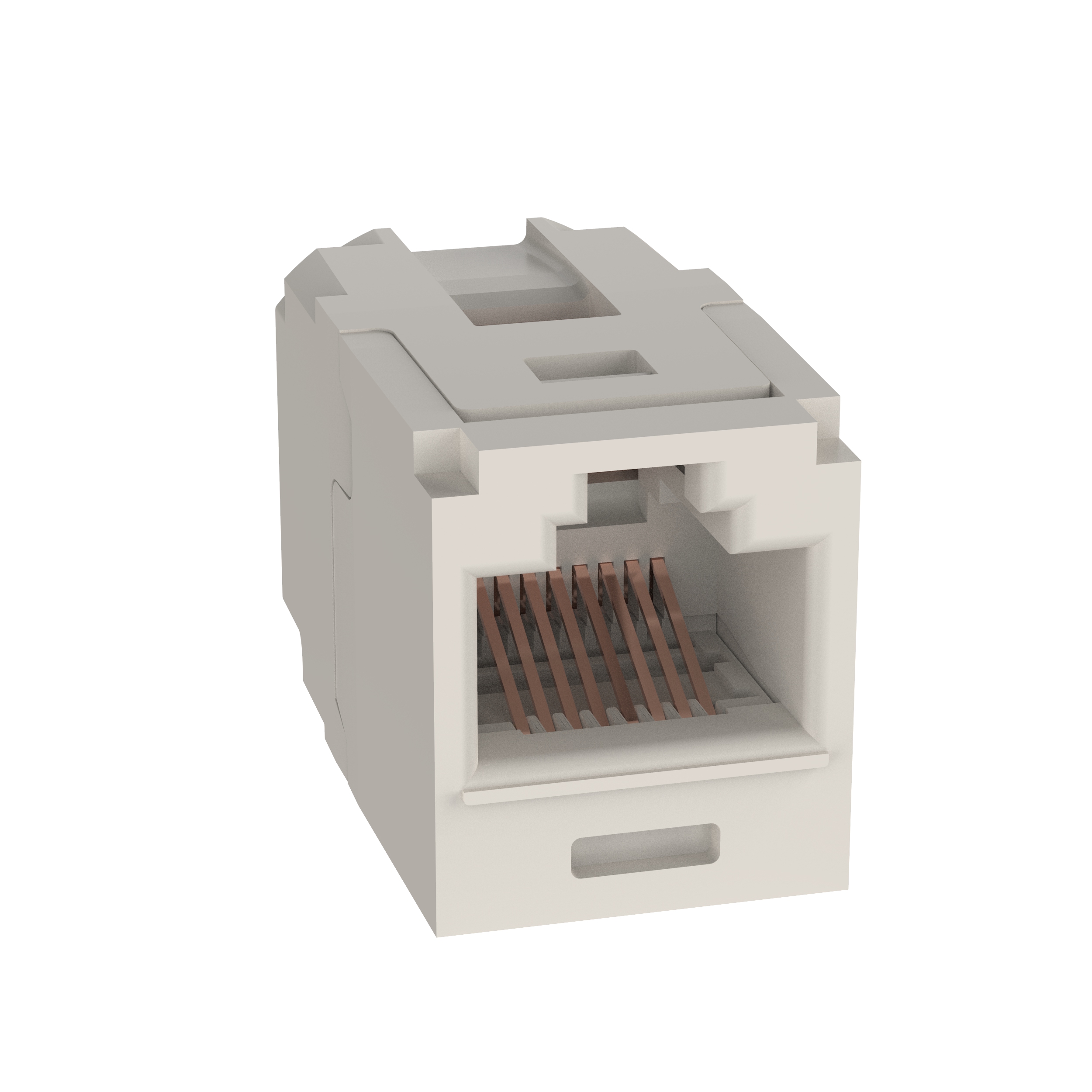

Panduit® CC688IW Mini-Com® TX6™ RJ45 Universal UTP Coupler Jack Module, Cat 6 Module, 1 Port, ABS, Off-White
Custom_Product_Images_Illustration
Panduit®
Panduit® CC688IW Mini-Com® TX6™ RJ45 Universal UTP Coupler Jack Module, Cat 6 Module, 1 Port, ABS, Off-White
SKU866008
MFGR #CC688IW
Your Cost: $26.14/ea
List: Category 6/Class E, 8-position, female to female, UTP coupler module shall provide easy plug and play pass-through connectivity. Coupler modules shall act as one connecting hardware component in the channel. Coupler modules shall be available individually or installed in a 24-port flat patch panel. Couplers shall be compatible with 6 or 8-position RJ45 UTP patch cords with T568A and T568B wiring schemes.
Category 6/Class E, 8-position, female to female, UTP coupler module shall provide easy plug and play pass-through connectivity. Coupler modules shall act as one connecting hardware component in the channel. Coupler modules shall be available individually or installed in a 24-port flat patch panel. Couplers shall be compatible with 6 or 8-position RJ45 UTP patch cords with T568A and T568B wiring schemes.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Cable Entry T568A/T568B Catalog Number CC688IW Country of Origin MEX Currency USD Depth 1.09 in Dimensions 0.71 in H x 0.62 in W x 1.13 in D EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0260 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 1.00 in Height [Metric] 2.5400 cm Length 3.55 in Length [Metric] 9.0170 cm Model Mini-Com® Returnable Y Slot Capacity 1 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2, 1096-AFCC CertifiedIEC 60603-7IEEE 802.3af, 802.3atUL 1863 Sub Brand Pan-Net?® Type Coupler Module UNSPSC 43223301 UPC 11 07498301782 UPC 12 07498301782 Width 1.30 in Width [Metric] 3.3020 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Off-White Material ABS Module Type Cat 6 Number of Ports 1 Unshielded Confidence that each coupler will deliver the critical electrical performance requirements Couplers snap-in and out of all Mini-Com® Faceplates, Modular Patch Panels and industrial bulkheads for easy moves, adds and changes Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible Can be clearly identified with optional labels and icons for port identification Factory installed 24-port patch panel mounts to standard EIA 19 in or 23 in racks for greater system flexibility Provides a simple and secure method to control access to data ports while not in use (Optional) -14 to 149 deg F operating temperature, -40 to 158 deg F storage temperature T568A/T568B wiring scheme Coupler termination style 8-position, 8-wire Category 6, Minicom module
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Cable Entry | T568A/T568B |
| Catalog Number | CC688IW |
| Country of Origin | MEX |
| Currency | USD |
| Depth | 1.09 in |
| Dimensions | 0.71 in H x 0.62 in W x 1.13 in D |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0260 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 1.00 in |
| Height [Metric] | 2.5400 cm |
| Length | 3.55 in |
| Length [Metric] | 9.0170 cm |
| Model | Mini-Com® |
| Returnable | Y |
| Slot Capacity | 1 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2, 1096-AFCC CertifiedIEC 60603-7IEEE 802.3af, 802.3atUL 1863 |
| Sub Brand | Pan-Net?® |
| Type | Coupler Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498301782 |
| UPC 12 | 07498301782 |
| Width | 1.30 in |
| Width [Metric] | 3.3020 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Off-White |
| Material | ABS |
| Module Type | Cat 6 |
| Number of Ports | 1 |
| Unshielded |
| Confidence that each coupler will deliver the critical electrical performance requirements |
| Couplers snap-in and out of all Mini-Com® Faceplates, Modular Patch Panels and industrial bulkheads for easy moves, adds and changes |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| Factory installed 24-port patch panel mounts to standard EIA 19 in or 23 in racks for greater system flexibility |
| Provides a simple and secure method to control access to data ports while not in use (Optional) |
| -14 to 149 deg F operating temperature, -40 to 158 deg F storage temperature |
| T568A/T568B wiring scheme |
| Coupler termination style |
| 8-position, 8-wire |
| Category 6, Minicom module |
