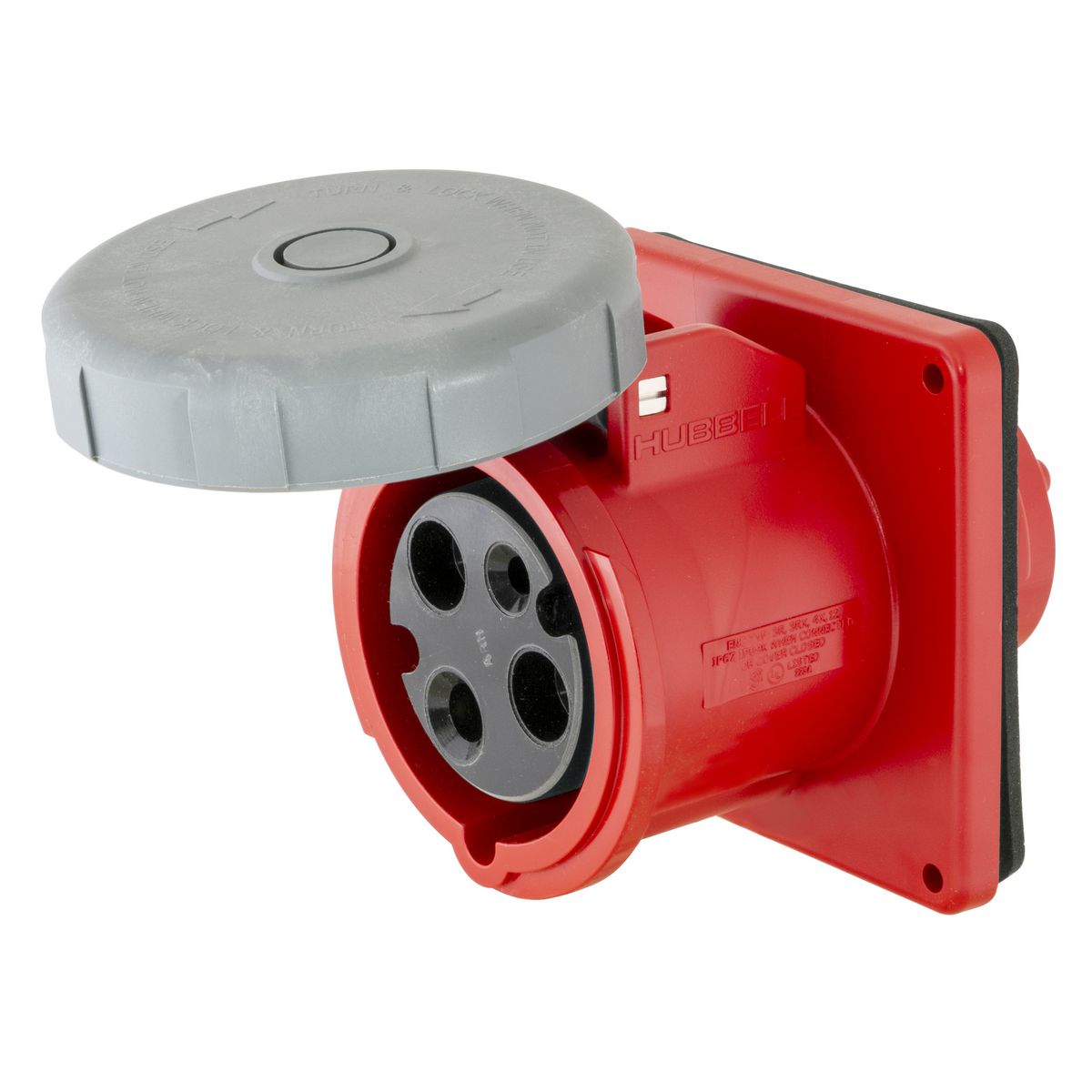

PS, IEC, RECP, 2P3W, 100A 480V, W/T
SKU279681
MFGR #HBL3100R7W
Your Cost: $639.65/ea
Hubbell Pin and Sleeve products are designed and manufactured to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out a singly rated, non-interchangeable configuration for every voltage and type of service throughout the world. Pin and sleeve device housings are color coded by voltage rating. The voltage is determined by the location of the female ground contact relative to the housing keyway. Simply by manufacturing the device with a ground contact in a certain "clock" position, the device will be rated for a particular voltage system. The diagram shows the keying position and the color coding that is associated with each voltage.
Hubbell Pin and Sleeve products are designed and manufactured to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out a singly rated, non-interchangeable configuration for every voltage and type of service throughout the world. Pin and sleeve device housings are color coded by voltage rating. The voltage is determined by the location of the female ground contact relative to the housing keyway. Simply by manufacturing the device with a ground contact in a certain "clock" position, the device will be rated for a particular voltage system. The diagram shows the keying position and the color coding that is associated with each voltage.
Application High Ampacity Watertight Connections ARRA Compliant C Buy American Compliant C Catalog Number HBL3100R7W Connection Pressure Screw Terminals Country of Origin US Currency USD Dimensions 5.71 in H Environmental Conditions Watertight EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 3.7500 lb Gross Weight per Pack Metric 1.70 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 5.75 in Height [Metric] 14.6050 cm Length 7.00 in Length [Metric] 17.7800 cm Material Thermoplastic Mounting Screw Mount NEMA Rating Non-NEMA Number Of Poles 2 Phase 1 Returnable N Size Standard Sized Product Standard Listed To Standard UL1682 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498UL 1682 File No. E146032IEC 309-1/309-2CSA C22.2 No. 182.1 Sub Brand IEC 309 Pin and Sleeve Devices Temperature Rating -40 to 75 °C Terminal Type Pressure Terminal Screw Type Watertight Receptacle UNSPSC 39121406 UPC 11 78358540313 UPC 12 783585403137 Wattage 48,000 W Width 6.38 in Width [Metric] 16.2052 cm Wire Size #3 AWG to #1/0 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 100 A Color Red Number of Wires 3 Voltage Rating 480 VAC High Ampacity Watertight Connections Watertight Corrosion resistant self-closing gasketed cover Sequential contact engagement to prevent a momentary over voltage on components Super tough insulated non-metallic house for impact and chemical resistance Color coded housings for easy identification Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise High-impact thermoset contact carrier and retainer Withstands 3000 VAC minimum dielectric voltage Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 3 to 1/0 AWG copper wire terminal accommodation Standard style service Zytel®® 101 nylon housing and mounting flange, reinforced thermoplastic polyester cover, solid neoprene gaskets, nickel plated brass cover screw
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | High Ampacity Watertight Connections |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL3100R7W |
| Connection | Pressure Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.71 in H |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 3.7500 lb |
| Gross Weight per Pack Metric | 1.70 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 5.75 in |
| Height [Metric] | 14.6050 cm |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | Non-NEMA |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | Standard Sized Product |
| Standard | Listed To Standard UL1682 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498UL 1682 File No. E146032IEC 309-1/309-2CSA C22.2 No. 182.1 |
| Sub Brand | IEC 309 Pin and Sleeve Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Pressure Terminal Screw |
| Type | Watertight Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358540313 |
| UPC 12 | 783585403137 |
| Wattage | 48,000 W |
| Width | 6.38 in |
| Width [Metric] | 16.2052 cm |
| Wire Size | #3 AWG to #1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 100 A |
| Color | Red |
| Number of Wires | 3 |
| Voltage Rating | 480 VAC |
| High Ampacity Watertight Connections |
| Watertight |
| Corrosion resistant self-closing gasketed cover |
| Sequential contact engagement to prevent a momentary over voltage on components |
| Super tough insulated non-metallic house for impact and chemical resistance |
| Color coded housings for easy identification |
| Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise |
| High-impact thermoset contact carrier and retainer |
| Withstands 3000 VAC minimum dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 3 to 1/0 AWG copper wire terminal accommodation |
| Standard style service |
| Zytel®® 101 nylon housing and mounting flange, reinforced thermoplastic polyester cover, solid neoprene gaskets, nickel plated brass cover screw |
