Panduit®

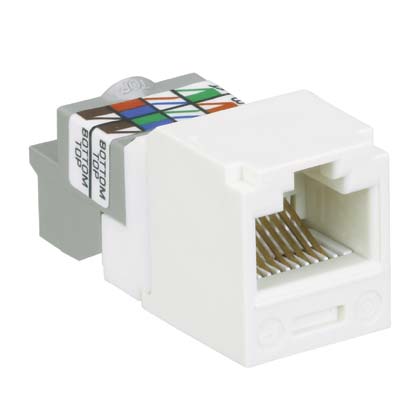

PAND CJ688TPYL Mini-Com Module Cat 6 UTP 8 pos 8 wir
Custom_Product_Images_Illustration
Panduit®
PAND CJ688TPYL Mini-Com Module Cat 6 UTP 8 pos 8 wir
SKU522297
MFGR #CJ688TPYL
Your Cost: $18.77/ea
List: Category 6/Class E, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
Category 6/Class E, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
Application Unshielded ARRA Compliant Y Buy American Compliant Y Cable Entry T568A/T568B Catalog Number CJ688TPYL Country of Origin USA Currency USD Depth 1.43 in Dimensions 0.71 in H x 0.63 in W x 1.43 in D EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0240 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 0.85 in Height [Metric] 2.1590 cm Length 3.80 in Length [Metric] 9.6520 cm Model Mini-Com® Returnable N Slot Capacity 1 Standard Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Standards ARRA CompliantBuy American Act CompliantRoHS Compliant, UL 1863, ANSI/TIA-568-C.2, ANSI/TIA-1096-A, IEC 60603-7, FCC Compliant Sub Brand Pan-Net?® Type Jack Module UNSPSC 43223301 UPC 11 07498399276 UPC 12 07498399276 Width 3.60 in Width [Metric] 9.1440 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Yellow Material ABS/Polycarbonate Module Type Cat6/Mini-Com® Mounting Type Surface Number of Ports 1 Unshielded Confidence that each jack module will deliver the critical electrical performance requirements Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes Marked with quality control number for future traceability Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible Can be clearly identified with optional labels and icons for port identification Controls cable bend radius for long term installed performance Can be clearly identified with optional labels and icons for port identification CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability (Optional) Provides a simple and secure method to control access to data ports while not in use (optional) 8-position, 8-wire -14 to 14 deg F operating temperature, -4 to 158 deg F storage temperature Category 6, Minicom module ABS Module Housing, Polycarbonate Wire Cap
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Unshielded |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Cable Entry | T568A/T568B |
| Catalog Number | CJ688TPYL |
| Country of Origin | USA |
| Currency | USD |
| Depth | 1.43 in |
| Dimensions | 0.71 in H x 0.63 in W x 1.43 in D |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0240 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 0.85 in |
| Height [Metric] | 2.1590 cm |
| Length | 3.80 in |
| Length [Metric] | 9.6520 cm |
| Model | Mini-Com® |
| Returnable | N |
| Slot Capacity | 1 |
| Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS Compliant, UL 1863, ANSI/TIA-568-C.2, ANSI/TIA-1096-A, IEC 60603-7, FCC Compliant |
| Sub Brand | Pan-Net?® |
| Type | Jack Module |
| UNSPSC | 43223301 |
| UPC 11 | 07498399276 |
| UPC 12 | 07498399276 |
| Width | 3.60 in |
| Width [Metric] | 9.1440 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Yellow |
| Material | ABS/Polycarbonate |
| Module Type | Cat6/Mini-Com® |
| Mounting Type | Surface |
| Number of Ports | 1 |
| Unshielded |
| Confidence that each jack module will deliver the critical electrical performance requirements |
| Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense |
| UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes |
| Marked with quality control number for future traceability |
| Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible |
| Can be clearly identified with optional labels and icons for port identification |
| Controls cable bend radius for long term installed performance |
| Can be clearly identified with optional labels and icons for port identification |
| CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability (Optional) |
| Provides a simple and secure method to control access to data ports while not in use (optional) |
| 8-position, 8-wire |
| -14 to 14 deg F operating temperature, -4 to 158 deg F storage temperature |
| Category 6, Minicom module |
| ABS Module Housing, Polycarbonate Wire Cap |
