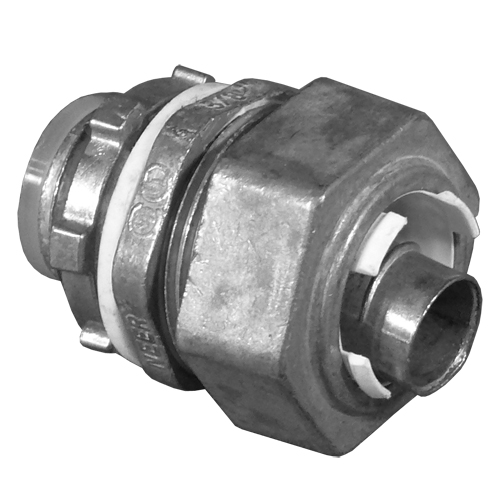

O-Z/Gedney NEER™ LMM-11 Non-Insulated Liquidtight Conduit Connector, 1/2 in Trade, Straight, Die Cast Zinc, Natural
Custom_Product_Images_Illustration
O-Z/Gedney NEER™ LMM-11 Non-Insulated Liquidtight Conduit Connector, 1/2 in Trade, Straight, Die Cast Zinc, Natural
SKU17412
MFGR #LMM-11
Your Cost: $9.74/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Terminating Liquidtight Flexible Metal Conduit to a Enclosure ARRA Compliant N Buy American Compliant N Catalog Number LMM-11 Color Metallic Connection Male NPS Thread Country of Origin IN Currency USD Dimensions 1.28 in Dia x 1.49 in L Environmental Conditions Rain Tight, Oil Tight, Liquid Tight EU RoHS Indicator Y Gross Weight Per Pack 0.1600 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 0.07 in Height [Metric] 1.8796 mm Insulation None Length 11.10 in Length [Metric] 28.1940 cm NEMA Rating FB-1 Size 0.5 IN in Standard UL Standard: 514B; UL Listed: E32539; CSA Standard: C22.2 No. 18.3; CSA Certified: 208044; NEMA: FB-1; CSA Certified L39354 Standards UL 514B, UL E32539, CSA C22.2 No. 18.3, CSA 208044, CSA LR14489, NEMA FB-1, RoHS Compliant Sub Brand NEER Suitable For Use With Liquidtight Flexible Metallic Conduit and Type B Non-Metallic Conduit Type Non-Insulated UNSPSC 39121420 UPC 11 68785538211 UPC 12 687855382118 Width 7.50 in Width [Metric] 19.0500 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle Straight Finish Natural Material Die Cast Zinc Trade Size 1/2 in For Terminating Liquidtight Flexible Metal Conduit to a Enclosure
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Terminating Liquidtight Flexible Metal Conduit to a Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LMM-11 |
| Color | Metallic |
| Connection | Male NPS Thread |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 1.28 in Dia x 1.49 in L |
| Environmental Conditions | Rain Tight, Oil Tight, Liquid Tight |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1600 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 0.07 in |
| Height [Metric] | 1.8796 mm |
| Insulation | None |
| Length | 11.10 in |
| Length [Metric] | 28.1940 cm |
| NEMA Rating | FB-1 |
| Size | 0.5 IN in |
| Standard | UL Standard: 514B; UL Listed: E32539; CSA Standard: C22.2 No. 18.3; CSA Certified: 208044; NEMA: FB-1; CSA Certified L39354 |
| Standards | UL 514B, UL E32539, CSA C22.2 No. 18.3, CSA 208044, CSA LR14489, NEMA FB-1, RoHS Compliant |
| Sub Brand | NEER |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit and Type B Non-Metallic Conduit |
| Type | Non-Insulated |
| UNSPSC | 39121420 |
| UPC 11 | 68785538211 |
| UPC 12 | 687855382118 |
| Width | 7.50 in |
| Width [Metric] | 19.0500 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | Straight |
| Finish | Natural |
| Material | Die Cast Zinc |
| Trade Size | 1/2 in |
| For Terminating Liquidtight Flexible Metal Conduit to a Enclosure |
| 1.28 IN Dia X 1.49 IN Length, 0.53 IN Thread Length, For Liquidtight Flexible Metal Conduit and Type B Non-Metallic Conduit, Liquidtight/Raintight/Oiltight |
| Furnished with locknut and sealing ring |
| Suitable for grounding 3/8 in thru 1-1/4 in |
| Suitable for wet locations |
| Suitable for use in Class I, Division 2 |
| Male NPS thread connection |
| Rain tight, oiltight, liquidtight environment condition |
| 0.53 in L thread |
