O-Z/Gedney

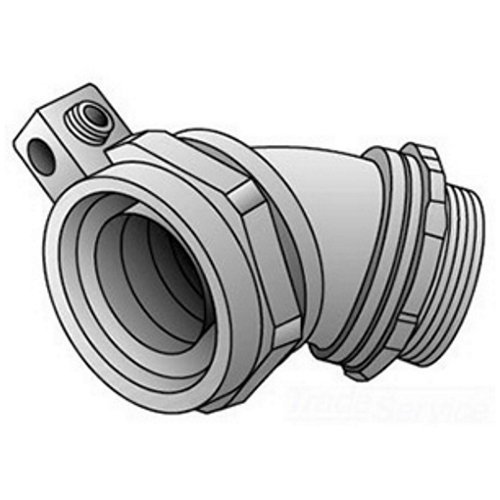

O-Z/Gedney Ground-Tite® 4Q-4200LT Male Liquidtight Conduit Connector With Lug, 2 in Trade, 6 to 1/0 AWG Cable Openings
Custom_Product_Images_Illustration
O-Z/Gedney
O-Z/Gedney Ground-Tite® 4Q-4200LT Male Liquidtight Conduit Connector With Lug, 2 in Trade, 6 to 1/0 AWG Cable Openings
SKU931645
MFGR #4Q4200LT
Your Cost: $80.79/ea
List: For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Liquidtight Flexible Metal Conduit ARRA Compliant Y Buy American Compliant N Catalog Number 4Q4200LT Conductor Range 6 - 1/0 AWG Connection Compression X Tapered MNPT Hub Country of Origin MX Currency USD Dimensions 4.3 in H x 3-3/4 in W EU RoHS Indicator Y Gross Weight Per Pack 1.7800 lb Gross Weight per Pack Metric 0.81 Gross Weight UOM Metric kg Height 2.00 in Height [Metric] 5.0800 cm Insulation Insulated Throat Length 7.00 in Length [Metric] 17.7800 cm NEMA Rating NEMA 4 Series 4Q-LT Size 2 in Suitable For Use With Liquidtight Flexible Metallic Conduit Type Type 4Q-LT Grounding Liquid Tight 45 DEG Connector With Lug UNSPSC 39121420 UPC 11 78312661913 UPC 12 783126619133 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Angle 45 ° Cable Openings 6 to 1/0 AWG Finish Zinc Electroplated Material Malleable Iron Body And Nut, Steel Ferrule Trade Size 2 in For Liquidtight Flexible Metal Conduit 4Q-LT fittings have insulated throat to protect against wire damage; Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Positive grounding type; Grounding lug is cast as an integral part of malleable iron gland nut; capable of withstanding high ground fault; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit "pop-out"; Inspection windows in ferrule to ensure full engagement Tapered threaded male NPT hub Compact, slim diameter with small turning radius Intrinsically safe Bonding wedge locknuts are recommended in hazardous locations Long ferrule prevents pullout and tight bend conduit "pop-out" Inspection windows in ferrule to ensure full conduit engagement Grounding lug is cast as an integral part of malleable iron gland nut Capable of withstanding high ground fault Malleable Iron Body and Nut, Steel Ferrule
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Liquidtight Flexible Metal Conduit |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | 4Q4200LT |
| Conductor Range | 6 - 1/0 AWG |
| Connection | Compression X Tapered MNPT Hub |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.3 in H x 3-3/4 in W |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.7800 lb |
| Gross Weight per Pack Metric | 0.81 |
| Gross Weight UOM Metric | kg |
| Height | 2.00 in |
| Height [Metric] | 5.0800 cm |
| Insulation | Insulated Throat |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| NEMA Rating | NEMA 4 |
| Series | 4Q-LT |
| Size | 2 in |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Type | Type 4Q-LT Grounding Liquid Tight 45 DEG Connector With Lug |
| UNSPSC | 39121420 |
| UPC 11 | 78312661913 |
| UPC 12 | 783126619133 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Angle | 45 ° |
| Cable Openings | 6 to 1/0 AWG |
| Finish | Zinc Electroplated |
| Material | Malleable Iron Body And Nut, Steel Ferrule |
| Trade Size | 2 in |
| For Liquidtight Flexible Metal Conduit |
| 4Q-LT fittings have insulated throat to protect against wire damage; Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Positive grounding type; Grounding lug is cast as an integral part of malleable iron gland nut; capable of withstanding high ground fault; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit "pop-out"; Inspection windows in ferrule to ensure full engagement |
| Tapered threaded male NPT hub |
| Compact, slim diameter with small turning radius |
| Intrinsically safe |
| Bonding wedge locknuts are recommended in hazardous locations |
| Long ferrule prevents pullout and tight bend conduit "pop-out" |
| Inspection windows in ferrule to ensure full conduit engagement |
| Grounding lug is cast as an integral part of malleable iron gland nut |
| Capable of withstanding high ground fault |
| Malleable Iron Body and Nut, Steel Ferrule |
