Appleton™

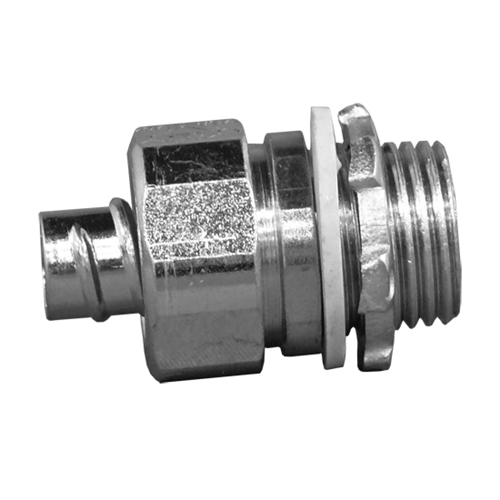

O-Z/Gedney ETP™ 4QS-125T Liquidtight Conduit Connector, 1-1/4 in Trade, Straight, Steel, Electroplated Zinc
Custom_Product_Images_Illustration
Appleton™
O-Z/Gedney ETP™ 4QS-125T Liquidtight Conduit Connector, 1-1/4 in Trade, Straight, Steel, Electroplated Zinc
SKU62301
MFGR #4QS125T
Your Cost: $27.69/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Terminating Liquidtight Flexible Metal Conduit to an Enclosure ARRA Compliant N Buy American Compliant N Catalog Number 4QS125T Color Metallic Connection Male NPT Taper Threaded Country of Origin CN Currency USD Dimensions 1.01 in L x 2.46 in W Environmental Conditions Raintight EU RoHS Indicator Y Gross Weight Per Pack 0.4700 lb Gross Weight per Pack Metric 0.21 Gross Weight UOM Metric kg Height 0.60 in Height [Metric] 15.2400 mm Insulation Insulated Throat Length 6.00 in Length [Metric] 15.2400 cm NEMA Rating FB-1 Size 1.25 in Standard UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 Standards RoHS Compliant, UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795,NEMA: FB-1 Sub Brand ETP Suitable For Use With Flexible Metallic Liquidtight Conduit Type 4QS Liquidtight Connector UNSPSC 39121420 UPC 11 68785512061 UPC 12 687855120611 Width 5.90 in Width [Metric] 14.9860 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle Straight Finish Zinc Electroplated Material Steel Trade Size 1-1/4 in For Terminating Liquidtight Flexible Metal Conduit to an Enclosure 37987 Male NPT taper threaded connection Insulated throat Suitable for wet Locations Suitable for use in class I, division 2 locations Furnished with locknut and sealing ring Compact, slim diameter with small turning radius Liquidtight/Raintight/Oiltight Long ferrule prevents pullout and tight bend conduit pop-out Reusable ferrule Raintight environmental conditions 0.74 in L thread
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Terminating Liquidtight Flexible Metal Conduit to an Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 4QS125T |
| Color | Metallic |
| Connection | Male NPT Taper Threaded |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1.01 in L x 2.46 in W |
| Environmental Conditions | Raintight |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4700 lb |
| Gross Weight per Pack Metric | 0.21 |
| Gross Weight UOM Metric | kg |
| Height | 0.60 in |
| Height [Metric] | 15.2400 mm |
| Insulation | Insulated Throat |
| Length | 6.00 in |
| Length [Metric] | 15.2400 cm |
| NEMA Rating | FB-1 |
| Size | 1.25 in |
| Standard | UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 |
| Standards | RoHS Compliant, UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795,NEMA: FB-1 |
| Sub Brand | ETP |
| Suitable For Use With | Flexible Metallic Liquidtight Conduit |
| Type | 4QS Liquidtight Connector |
| UNSPSC | 39121420 |
| UPC 11 | 68785512061 |
| UPC 12 | 687855120611 |
| Width | 5.90 in |
| Width [Metric] | 14.9860 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | Straight |
| Finish | Zinc Electroplated |
| Material | Steel |
| Trade Size | 1-1/4 in |
| For Terminating Liquidtight Flexible Metal Conduit to an Enclosure |
| 37987 |
| Male NPT taper threaded connection |
| Insulated throat |
| Suitable for wet Locations |
| Suitable for use in class I, division 2 locations |
| Furnished with locknut and sealing ring |
| Compact, slim diameter with small turning radius |
| Liquidtight/Raintight/Oiltight |
| Long ferrule prevents pullout and tight bend conduit pop-out |
| Reusable ferrule |
| Raintight environmental conditions |
| 0.74 in L thread |
