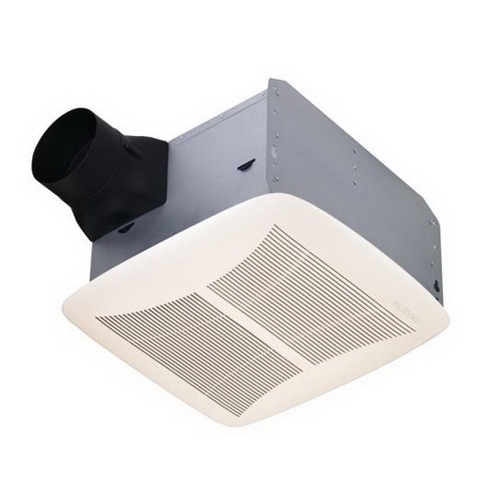

NuTone® QTRN080 Ultra Silent™ QTRN Ventilation Fan, 80 cfm, 4 in Duct, 0.7 A
Custom_Product_Images_Illustration
NuTone® QTRN080 Ultra Silent™ QTRN Ventilation Fan, 80 cfm, 4 in Duct, 0.7 A
SKU241516
MFGR #QTRN080
Your Cost: $127.98/ea
List: One of NuTone™s best, QT Series fans feature very quiet operation and are powerful enough to maintain strong airflow to keep your bathroom free of humidity. It's a rare combination, but QT Series fans can provide extra ventilation in many rooms in your home. The kitchen, laundry room, media room, or even the closet can benefit from a little ventilation, in a streamlined design, any time you need it.
One of NuTone™s best, QT Series fans feature very quiet operation and are powerful enough to maintain strong airflow to keep your bathroom free of humidity. It's a rare combination, but QT Series fans can provide extra ventilation in many rooms in your home. The kitchen, laundry room, media room, or even the closet can benefit from a little ventilation, in a streamlined design, any time you need it.
Air Flow 80 CFM At 0.1 IN SP Application For Kitchen, Laundry And Media Room ARRA Compliant N Buy American Compliant N Catalog Number QTRN080 Color White Country of Origin USA Currency USD Current|Amps 0.7 A Domestic|Import Domestic EU RoHS Indicator N Fan Grade Quiet Fan Type Ventilation Grille Color White Grille Length 13 in Grille Material Polymer Grille Shape Rectangular Grille Width 14 in Gross Weight Per Pack 9.7500 lb Gross Weight per Pack Metric 4.42 Gross Weight UOM Metric kg Height 0.94 in Height [Metric] 23.8760 mm Housing Dimensions 10-1/2 IN Length X 11-3/8 IN Width X 7-5/8 IN Height Housing Height 7-5/8 in Housing Length 10-1/2 in Housing Material Galvanized Steel Housing Width 11-3/8 in Humidity Sensing No Length 1.32 in Length [Metric] 3.3528 cm Motion Sensing No Mounting Type Ceiling Series QTRN Standard UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only), HVI 2100 Certified Standards UL Listed, HVI Certified Type QTRN Series Fan UNSPSC 40101502 UPC 11 78489121835 UPC 12 78489121835 Width 1.29 in Width [Metric] 3.2766 cm Stock Status NONSTOCK Brand Broan® Manufacturer Broan-NuTone, LLC Duct Diameter 4 in Flow Rate 80 cfm Sones 1 For Kitchen, Laundry And Media Room Plug-in, permanently lubricated motor engineered for continuous operation; Dynamically balanced low RPM centrifugal blower wheel for quiet, efficient performance; Resilient anti-vibration motor mounts; Innovative grille design; Rugged 26 GA galvanized steel construction housing; Polymeric 4 IN round duct connector with tapered sleeve and no metallic clatter; Sturdy, easy, four-point mounting directly to joist; Includes unique spacer (patent pending) for mounting to engineered I" joists; Can be mounted in ceilings up to 12/12 pitch; 3 YR warranty" White textured Polymeric grille designed to work in any decor, makes this fan the perfect choice, no matter how often you redecorate Low RPM for quiet operation 80 cfm at 0.1 in/66 cfm at 1/4 in flow rate
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Air Flow | 80 CFM At 0.1 IN SP |
| Application | For Kitchen, Laundry And Media Room |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QTRN080 |
| Color | White |
| Country of Origin | USA |
| Currency | USD |
| Current|Amps | 0.7 A |
| Domestic|Import | Domestic |
| EU RoHS Indicator | N |
| Fan Grade | Quiet |
| Fan Type | Ventilation |
| Grille Color | White |
| Grille Length | 13 in |
| Grille Material | Polymer |
| Grille Shape | Rectangular |
| Grille Width | 14 in |
| Gross Weight Per Pack | 9.7500 lb |
| Gross Weight per Pack Metric | 4.42 |
| Gross Weight UOM Metric | kg |
| Height | 0.94 in |
| Height [Metric] | 23.8760 mm |
| Housing Dimensions | 10-1/2 IN Length X 11-3/8 IN Width X 7-5/8 IN Height |
| Housing Height | 7-5/8 in |
| Housing Length | 10-1/2 in |
| Housing Material | Galvanized Steel |
| Housing Width | 11-3/8 in |
| Humidity Sensing | No |
| Length | 1.32 in |
| Length [Metric] | 3.3528 cm |
| Motion Sensing | No |
| Mounting Type | Ceiling |
| Series | QTRN |
| Standard | UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only), HVI 2100 Certified |
| Standards | UL Listed, HVI Certified |
| Type | QTRN Series Fan |
| UNSPSC | 40101502 |
| UPC 11 | 78489121835 |
| UPC 12 | 78489121835 |
| Width | 1.29 in |
| Width [Metric] | 3.2766 cm |
| Stock Status | NONSTOCK |
| Brand | Broan® |
| Manufacturer | Broan-NuTone, LLC |
| Duct Diameter | 4 in |
| Flow Rate | 80 cfm |
| Sones | 1 |
| For Kitchen, Laundry And Media Room |
| Plug-in, permanently lubricated motor engineered for continuous operation; Dynamically balanced low RPM centrifugal blower wheel for quiet, efficient performance; Resilient anti-vibration motor mounts; Innovative grille design; Rugged 26 GA galvanized steel construction housing; Polymeric 4 IN round duct connector with tapered sleeve and no metallic clatter; Sturdy, easy, four-point mounting directly to joist; Includes unique spacer (patent pending) for mounting to engineered I" joists; Can be mounted in ceilings up to 12/12 pitch; 3 YR warranty" |
| White textured Polymeric grille designed to work in any decor, makes this fan the perfect choice, no matter how often you redecorate |
| Low RPM for quiet operation |
| 80 cfm at 0.1 in/66 cfm at 1/4 in flow rate |
