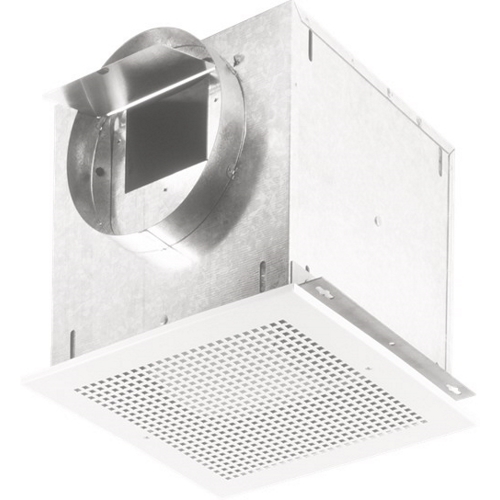

NuTone® Losone Select® L300MG Ventilation Fan, 317 cfm, 8 in Dia Duct, 212 W, 120 VAC, 2.6 A, Domestic
Custom_Product_Images_Illustration
NuTone® Losone Select® L300MG Ventilation Fan, 317 cfm, 8 in Dia Duct, 212 W, 120 VAC, 2.6 A, Domestic
SKU162320
MFGR #L300MG
Your Cost: $329.96/ea
List: Broan high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
Broan high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
Application For Conference And Public Restrooms ARRA Compliant N Buy American Compliant N Catalog Number L300MG Color White Country of Origin USA Currency USD Domestic|Import Domestic EU RoHS Indicator N Grille Length 14 in Grille Material Metal Grille Width 14 in Gross Weight Per Pack 24.0000 lb Gross Weight per Pack Metric 10.89 Gross Weight UOM Metric kg Height 1.33 in Height [Metric] 3.3866 cm Housing Height 11-3/4 in Housing Length 12-1/4 in Housing Material Steel Housing Width 12-1/4 in Humidity Sensing No Length 1.33 in Length [Metric] 3.3866 cm Mounting Type Ceiling Standard CUL Listed, AMCA Certified Standards AMCA CertifiedUL/cUL Listed Sub Brand LOSONE SELECT™ Type High Capacity Fan UNSPSC 40101604 UPC 11 02671512518 UPC 12 02671512518 Width 1.25 in Width [Metric] 3.1750 cm Stock Status NONSTOCK Brand Broan® Manufacturer Broan-NuTone, LLC Amperage Rating 2.6 A Duct Diameter 8 in Flow Rate 317 cfm Power Rating 212 W Voltage Rating 120 VAC For Conference And Public Restrooms Reliable unbelievably quiet, offering the CFM choices you need at the lowest sound; Low RPM motor for quiet operation with resilient anti-vibration mounts; Dynamically-balanced polymeric centrifugal blower wheel for quiet, efficient performance; Permanently lubricated, plug-in, thermally protected motor designed for continuous operation; Low profile styling grille conceals interior; Rugged 20 GA galvanized steel housing with 1/2 IN acoustic insulation inside; 8 IN round duct connector; 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements; Automatic backdraft damper located within duct connector; Can be ducted horizontally or vertically with in-line ducting available with separate adapter; May be installed as an in-line ventilator with addition of accessory kit Model 981L (purchase separately); Accessories (p White enamel steel grille 8 in round duct connectors Low profile, white painted enamel steel grille Single, impact resistant centrifugal blower wheel Can be ducted horizontally or vertically 20 ga galvanized steel housing In-line ducting available with separate adapter Use Broan® electronic variable speed control to adjust blower speed and sound level 3 Sones sound level 316 cfm at 1/8 in, 312 cfm at 1/4 in flow rate 317 cfm at 0.1 in
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Conference And Public Restrooms |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | L300MG |
| Color | White |
| Country of Origin | USA |
| Currency | USD |
| Domestic|Import | Domestic |
| EU RoHS Indicator | N |
| Grille Length | 14 in |
| Grille Material | Metal |
| Grille Width | 14 in |
| Gross Weight Per Pack | 24.0000 lb |
| Gross Weight per Pack Metric | 10.89 |
| Gross Weight UOM Metric | kg |
| Height | 1.33 in |
| Height [Metric] | 3.3866 cm |
| Housing Height | 11-3/4 in |
| Housing Length | 12-1/4 in |
| Housing Material | Steel |
| Housing Width | 12-1/4 in |
| Humidity Sensing | No |
| Length | 1.33 in |
| Length [Metric] | 3.3866 cm |
| Mounting Type | Ceiling |
| Standard | CUL Listed, AMCA Certified |
| Standards | AMCA CertifiedUL/cUL Listed |
| Sub Brand | LOSONE SELECT™ |
| Type | High Capacity Fan |
| UNSPSC | 40101604 |
| UPC 11 | 02671512518 |
| UPC 12 | 02671512518 |
| Width | 1.25 in |
| Width [Metric] | 3.1750 cm |
| Stock Status | NONSTOCK |
| Brand | Broan® |
| Manufacturer | Broan-NuTone, LLC |
| Amperage Rating | 2.6 A |
| Duct Diameter | 8 in |
| Flow Rate | 317 cfm |
| Power Rating | 212 W |
| Voltage Rating | 120 VAC |
| For Conference And Public Restrooms |
| Reliable unbelievably quiet, offering the CFM choices you need at the lowest sound; Low RPM motor for quiet operation with resilient anti-vibration mounts; Dynamically-balanced polymeric centrifugal blower wheel for quiet, efficient performance; Permanently lubricated, plug-in, thermally protected motor designed for continuous operation; Low profile styling grille conceals interior; Rugged 20 GA galvanized steel housing with 1/2 IN acoustic insulation inside; 8 IN round duct connector; 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements; Automatic backdraft damper located within duct connector; Can be ducted horizontally or vertically with in-line ducting available with separate adapter; May be installed as an in-line ventilator with addition of accessory kit Model 981L (purchase separately); Accessories (p |
| White enamel steel grille |
| 8 in round duct connectors |
| Low profile, white painted enamel steel grille |
| Single, impact resistant centrifugal blower wheel |
| Can be ducted horizontally or vertically |
| 20 ga galvanized steel housing |
| In-line ducting available with separate adapter |
| Use Broan® electronic variable speed control to adjust blower speed and sound level |
| 3 Sones sound level |
| 316 cfm at 1/8 in, 312 cfm at 1/4 in flow rate |
| 317 cfm at 0.1 in |
