Broan®

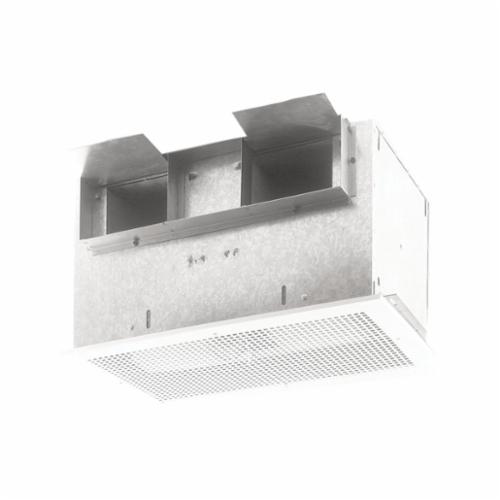

NuTone® LoSone Select® L400 High Capacity Ceiling Exhaust Ventilator, 4-1/2 x 18-1/2 in Duct, 120 VAC, 1.4 A
Broan®
NuTone® LoSone Select® L400 High Capacity Ceiling Exhaust Ventilator, 4-1/2 x 18-1/2 in Duct, 120 VAC, 1.4 A
SKU599167
MFGR #L400
Your Cost: $407.98/ea
List: Broan high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
Broan high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
ARRA Compliant N Buy American Compliant N Catalog Number L400 Color White Country of Origin USA Currency USD Domestic|Import Domestic EU RoHS Indicator N Frequency Rating 60 Hz Grille Length 14 in Grille Material Metal Grille Width 23-1/4 in Gross Weight Per Pack 33.8000 lb Gross Weight per Pack Metric 15.33 Gross Weight UOM Metric kg Height 1.21 in Height [Metric] 3.0734 cm Housing Height 11-3/4 in Housing Length 12-1/4 in Housing Material Galvanized Steel Housing Width 21-1/2 in Length 2.10 in Length [Metric] 5.3340 cm Mounting Type Ceiling Standards UL/cUL ListedAMCA Certified Sub Brand LOSONE SELECT™ Type High Capacity UNSPSC 40101502 UPC 11 02671512454 UPC 12 02671512454 Width 1.35 in Width [Metric] 3.4290 cm Stock Status NONSTOCK Brand Broan® Manufacturer Broan-NuTone, LLC Amperage Rating 1.4 A Duct Diameter 4-1/2 x 18-1/2 in Flow Rate 434 cfm Voltage Rating 120 VAC Resilient anti-vibration motor mounts Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance Low profile styling grille blends with any decor Rugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector May be installed as an in-line ventilator with addition of accessory kit model 982L, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control Plug-in permanently lubricated thermally protected motor designed for continuous operation Low rpm for quiet operation blower 434 cfm at 1/8 in SP horizontal, 2.3 Sones, 416 cfm at 0.1 in SP at 1/8 in SP vertical, 2.6 Sones Round duct Square shape grille 735 rpm horizontal, 755 rpm at 0.1 in SP vertical AC motor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | L400 |
| Color | White |
| Country of Origin | USA |
| Currency | USD |
| Domestic|Import | Domestic |
| EU RoHS Indicator | N |
| Frequency Rating | 60 Hz |
| Grille Length | 14 in |
| Grille Material | Metal |
| Grille Width | 23-1/4 in |
| Gross Weight Per Pack | 33.8000 lb |
| Gross Weight per Pack Metric | 15.33 |
| Gross Weight UOM Metric | kg |
| Height | 1.21 in |
| Height [Metric] | 3.0734 cm |
| Housing Height | 11-3/4 in |
| Housing Length | 12-1/4 in |
| Housing Material | Galvanized Steel |
| Housing Width | 21-1/2 in |
| Length | 2.10 in |
| Length [Metric] | 5.3340 cm |
| Mounting Type | Ceiling |
| Standards | UL/cUL ListedAMCA Certified |
| Sub Brand | LOSONE SELECT™ |
| Type | High Capacity |
| UNSPSC | 40101502 |
| UPC 11 | 02671512454 |
| UPC 12 | 02671512454 |
| Width | 1.35 in |
| Width [Metric] | 3.4290 cm |
| Stock Status | NONSTOCK |
| Brand | Broan® |
| Manufacturer | Broan-NuTone, LLC |
| Amperage Rating | 1.4 A |
| Duct Diameter | 4-1/2 x 18-1/2 in |
| Flow Rate | 434 cfm |
| Voltage Rating | 120 VAC |
| Resilient anti-vibration motor mounts |
| Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance |
| Low profile styling grille blends with any decor |
| Rugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside |
| 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector |
| May be installed as an in-line ventilator with addition of accessory kit model 982L, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control |
| Plug-in permanently lubricated thermally protected motor designed for continuous operation |
| Low rpm for quiet operation blower |
| 434 cfm at 1/8 in SP horizontal, 2.3 Sones, 416 cfm at 0.1 in SP at 1/8 in SP vertical, 2.6 Sones |
| Round duct |
| Square shape grille |
| 735 rpm horizontal, 755 rpm at 0.1 in SP vertical AC motor |
