Broan®

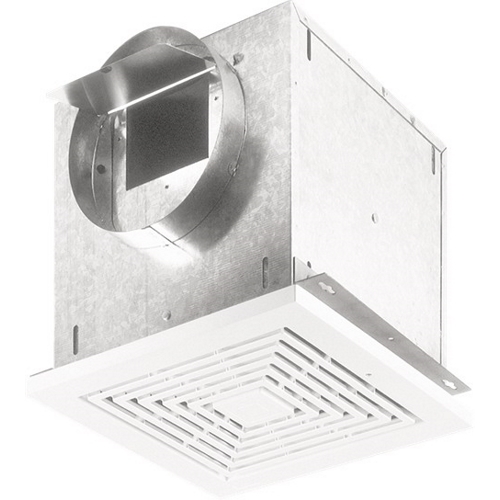

NuTone® LOSONE SELECT® L150 High Capacity Ceiling Exhaust Ventilator, 6 in Duct, 120 VAC, 1.3 A
Custom_Product_Images_Illustration
Broan®
NuTone® LOSONE SELECT® L150 High Capacity Ceiling Exhaust Ventilator, 6 in Duct, 120 VAC, 1.3 A
SKU65035
MFGR #L150
Your Cost: $215.79/ea
List: Broan high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
Broan high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
Air Flow 161 CFM At 0.1 IN SP Horizontal, 163 CFM At 0.1 IN SP Vertical Application For Conference And Public Restrooms ARRA Compliant N Buy American Compliant N Catalog Number L150 Color White Country of Origin USA Currency USD Domestic|Import Domestic EU RoHS Indicator N Fan Grade Quiet Fan Type Ventilation Frequency Rating 60 Hz Grille Color White Grille Length 14 in Grille Material Polymer Grille Shape Square Grille Width 14 in Gross Weight Per Pack 22.8000 lb Gross Weight per Pack Metric 10.34 Gross Weight UOM Metric kg Height 1.33 in Height [Metric] 3.3782 cm Housing Dimensions 12-1/4 IN Length X 12-1/4 IN Width X 11-3/4 IN Height Housing Height 11-3/4 in Housing Length 12-1/4 in Housing Material Galvanized Steel Housing Width 12-1/4 in Length 1.33 in Length [Metric] 3.3782 cm Motor Rpm 710 RPM Horizontal, 750 RPM Vertical Mounting Type Ceiling Standard UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Circuit, CUL Listed, AMCA Certified Standards UL/cUL ListedAMCA Certified Sub Brand LOSONE SELECT™ Type High Capacity UNSPSC 40101502 UPC 11 02671512450 UPC 12 026715124503 Width 1.25 in Width [Metric] 3.1750 cm Stock Status NONSTOCK Brand Broan® Manufacturer Broan-NuTone, LLC Amperage Rating 1.3 A Duct Diameter 6 in Flow Rate 160 cfm Voltage Rating 120 VAC For Conference And Public Restrooms Plug-in permanently lubricated thermally protected motor designed for continuous operation; Resilient anti-vibration motor mounts; Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance; Low profile styling grille blends with any decor; Can be ducted horizontally or vertically with in-line ducting available with separate adapter; Rugged 20 GA galvanized steel housing with 0.5 IN acoustic insulation inside; 6 IN round duct connector; 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements; Automatic backdraft damper located within duct connector; May be installed as an in-line ventilator with addition of accessory kit Model 961L; For controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 MINT time control or model 61V Resilient anti-vibration motor mounts Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance Low profile styling grille blends with any decor Can be ducted horizontally or at 0.1 in SP vertically with in-line ducting available with separate adapter, rugged 20 ga galvanized steel housing with 1/2 in acoustic insulation inside 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector May be installed as an in-line ventilator with addition of accessory kit Model 961L, for controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control Plug-in permanently lubricated thermally protected motor designed for continuous operation Low rpm for quiet operation blower 161 cfm at 0.1 in SP horizontal, 163 cfm at 0.1 in SP vertical 157 cfm at 1/8 in SP horizontal, 1.5 Sones, 160 cfm at 0.1 in SP at 1/8 in SP vertical, 1.6 Sones Round duct UL listed for use over bathtubs and showers when connected to a GFCI circuit Square shape grille 710 rpm AC motor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Air Flow | 161 CFM At 0.1 IN SP Horizontal, 163 CFM At 0.1 IN SP Vertical |
| Application | For Conference And Public Restrooms |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | L150 |
| Color | White |
| Country of Origin | USA |
| Currency | USD |
| Domestic|Import | Domestic |
| EU RoHS Indicator | N |
| Fan Grade | Quiet |
| Fan Type | Ventilation |
| Frequency Rating | 60 Hz |
| Grille Color | White |
| Grille Length | 14 in |
| Grille Material | Polymer |
| Grille Shape | Square |
| Grille Width | 14 in |
| Gross Weight Per Pack | 22.8000 lb |
| Gross Weight per Pack Metric | 10.34 |
| Gross Weight UOM Metric | kg |
| Height | 1.33 in |
| Height [Metric] | 3.3782 cm |
| Housing Dimensions | 12-1/4 IN Length X 12-1/4 IN Width X 11-3/4 IN Height |
| Housing Height | 11-3/4 in |
| Housing Length | 12-1/4 in |
| Housing Material | Galvanized Steel |
| Housing Width | 12-1/4 in |
| Length | 1.33 in |
| Length [Metric] | 3.3782 cm |
| Motor Rpm | 710 RPM Horizontal, 750 RPM Vertical |
| Mounting Type | Ceiling |
| Standard | UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Circuit, CUL Listed, AMCA Certified |
| Standards | UL/cUL ListedAMCA Certified |
| Sub Brand | LOSONE SELECT™ |
| Type | High Capacity |
| UNSPSC | 40101502 |
| UPC 11 | 02671512450 |
| UPC 12 | 026715124503 |
| Width | 1.25 in |
| Width [Metric] | 3.1750 cm |
| Stock Status | NONSTOCK |
| Brand | Broan® |
| Manufacturer | Broan-NuTone, LLC |
| Amperage Rating | 1.3 A |
| Duct Diameter | 6 in |
| Flow Rate | 160 cfm |
| Voltage Rating | 120 VAC |
| For Conference And Public Restrooms |
| Plug-in permanently lubricated thermally protected motor designed for continuous operation; Resilient anti-vibration motor mounts; Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance; Low profile styling grille blends with any decor; Can be ducted horizontally or vertically with in-line ducting available with separate adapter; Rugged 20 GA galvanized steel housing with 0.5 IN acoustic insulation inside; 6 IN round duct connector; 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements; Automatic backdraft damper located within duct connector; May be installed as an in-line ventilator with addition of accessory kit Model 961L; For controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 MINT time control or model 61V |
| Resilient anti-vibration motor mounts |
| Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance |
| Low profile styling grille blends with any decor |
| Can be ducted horizontally or at 0.1 in SP vertically with in-line ducting available with separate adapter, rugged 20 ga galvanized steel housing with 1/2 in acoustic insulation inside |
| 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector |
| May be installed as an in-line ventilator with addition of accessory kit Model 961L, for controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control |
| Plug-in permanently lubricated thermally protected motor designed for continuous operation |
| Low rpm for quiet operation blower |
| 161 cfm at 0.1 in SP horizontal, 163 cfm at 0.1 in SP vertical |
| 157 cfm at 1/8 in SP horizontal, 1.5 Sones, 160 cfm at 0.1 in SP at 1/8 in SP vertical, 1.6 Sones |
| Round duct |
| UL listed for use over bathtubs and showers when connected to a GFCI circuit |
| Square shape grille |
| 710 rpm AC motor |
