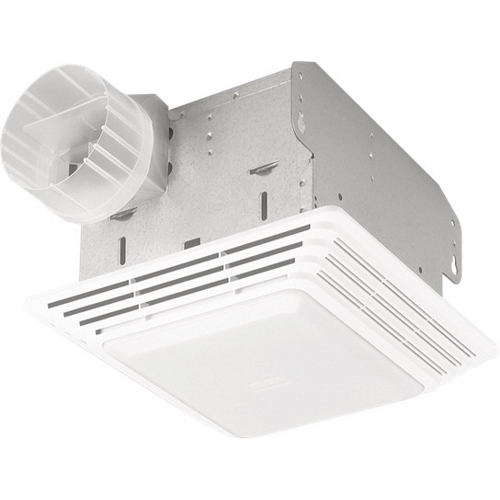

NuTone® HD80L Heavy Duty Fan/Light, 80 cfm, 4 in Duct, 49 W, 120 VAC, 1.5 A, Domestic
Bathroom Exhaust Fans
285557
MFG #: HD80L
Broan®
83.35000
/ ea
These products are named heavy duty for good reason. They're built tough to last in those punishing applications that are just too much for typical residential products. And a broad spectrum of AMCA and HVI certified performance ratings means there's an HD Series Fan or Fan/Light that's just right for your next light-commercial or institutional application.
- Brochure URL - BRO_IDEA_1372.pdf(Brochure URL)
- Catalog 1 URL - Broan-NuTone_696_Catalog.pdf(Catalog 1 URL)
- Install Instructions URL - Broan-NuTone_HD80L_Instruction_Installation.pdf(Install Instructions URL)
- Data Sheet 1 URL - Broan-NuTone_HD80L_Data_Sheet.pdf(Data Sheet 1 URL)
- Catalog URL - IDW_DOCUMENT_f01991fdd8391317b884f4574b6f700d9e60a6614d006fe1c2e6c1c7fe6457b3.pdf(Catalog URL)
- http://www.broan.com(Seller Home Page URL)
- Warranty URL - warranty(Warranty URL)
- Spec Sheet URL - SPE_c8d2c800-3e86-49ea-8ed0-c6471a6eb9c9.pdf(Spec Sheet URL)
- Applications
- Features
| For Bathrooms Up To 75 SQ-FT |
| Quiet heavy duty ceiling/wall fans built with high performance blowers; Plug-in, permanently lubricated, totally enclosed motor; Centrifugal blower wheel for quiet, efficient performance; Long life motor bearings; Designed for continuous operation; Polymeric grille with sturdy light-diffusing lens; Rugged 26 GA galvanized steel construction housing; Integral key-holed mounting brackets for easy, secure installation directly to joist; Provision for wire suspension when installed in a drop ceiling; Watts: 49 WTT at 0.1 IN, 48 WTT at 0.25 IN; Tapered, polymeric duct fitting with built-in backdraft damper for easy, positive duct connection and no metallic clatter; 1 YR warranty |
| Totally enclosed motor designed for continuous operation |
| 100 W lighting capacity (bulb not included) |
| Designer styled white polymeric grille with shatter resistant light diffusing lens |
| Plug-in receptacles for fan and light |
| Type IC (insulation contact) |
| AMCA licensed for both air and sound |
| 65 cfm at 1/4 in SP |
| Horizontal duct direction |
| Quiet heavy duty ceiling/wall fans built with high performance blowers |
| Plug-in, permanently lubricated, totally enclosed motor |
| Centrifugal blower wheel for quiet, efficient performance |
| Long life motor bearings |
| Designed for continuous operation |
| Polymeric grille with sturdy light diffusing lens |
| Rugged 26 ga galvanized steel construction housing |
| Integral key-holed mounting brackets for easy, secure installation directly to joist |
| Provision for wire suspension when installed in a drop ceiling |
| 49 W at 0.1 in, 48 W at 1/4 in |
| Tapered, polymeric duct fitting with built-in backdraft damper for easy, positive duct connection and no metallic clatter |
| 80 cfm at 0.1 in SP/65 cfm at 1/4 in SP airflow rate |
