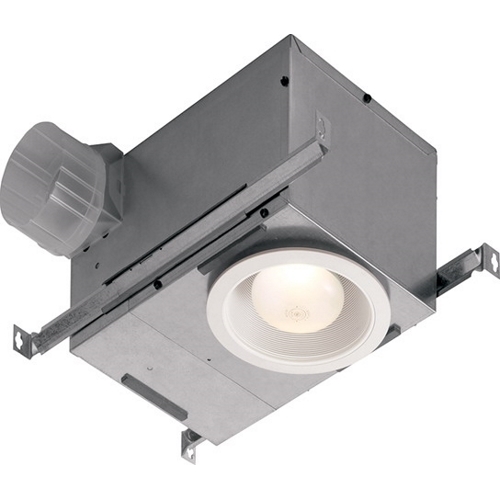

NuTone® 744 Recessed Fan/Light, 70 cfm, 4 in Duct, 34.4 W, 120 VAC, 1.2 A, Domestic
Fan/Light Combo
63843
MFG #: 744
Broan®
154.28000
/ ea
- Brochure URL - BRO_IDEA_1247.pdf(Brochure URL)
- Catalog 1 URL - Broan-NuTone_696_Catalog.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_c1655b0a62096943cb59e08c5ab4981f1b05323544769695ca94d602db0bae45.pdf(Catalog URL)
- Data Sheet 1 URL - Broan_744_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.broan.com(Seller Home Page URL)
- Install Instructions URL - Broan-NuTone_744_Instruction_Installation.pdf(Install Instructions URL)
- Spec Sheet URL - SPE_9cb099e8-a0e6-4df1-8fee-904a24d07969.pdf(Spec Sheet URL)
- Warranty URL - warranty(Warranty URL)
- Applications
- Features
| For Bathrooms Up To 65 SQ-FT And Other Rooms |
| Recessed fan lights disappear into the ceiling with other recessed lights, so they are practical decorating and air removal solutions for any room in the house; Not for use over cooking surfaces; Polymeric construction with matte white finish 7.375 IN trim ring baffle, its recessed styling, mounts flush with finished ceiling; Plug-in, permanently lubricated, motor with low RPM for quiet operation; Dynamically balanced centrifugal blower wheel for quiet, efficient performance; Rugged 26 GA galvanized steel construction housing; 4 IN round, polymeric duct connector with 2 IN tapered sleeve and no metallic clatter; Adjustable mounting brackets span up to 24 IN; Watts: 34.4 WTT at 0.1 IN, 32.3 WTT at 0.25 IN; Accessories (purchase separately): Model 59V (ivory)/59W (white) 60 MINT time control, model 61V (ivory)/61W (white) 15 MINT time control, model 69VL (ivory)/69 |
| High efficiency centrifugal fan |
| Trim matched to designs of major recessed light manufacturers |
| Put multiple units in larger rooms |
| Model 744 accepts a standard A19 base, 75 W maximum bulb, not included (R30, BR30, PAR30L or PAR30LN) |
| All models UL listed for use over bathtub or shower when connected to a GFCI protected branch circuit |
| 6-7/8 in high housing appropriate for new construction and 2 x 8 in ceiling joists |
| 4 in round duct connector |
| Type IC, sealed housing |
| Not for use over cooking surfaces humidity |
| Polymeric construction with matte white finish 7-3/8 in trim ring baffle, its recessed styling, mounts flush with finished ceiling |
| Plug-in, permanently lubricated, motor with low rpm for quiet operation |
| Dynamically balanced centrifugal blower wheel for quiet, efficient performance |
| Rugged 26 ga galvanized steel construction housing |
| Adjustable mounting brackets span upto 24 in |
| 70 cfm at 0.1 in SP, 56 cfm at 1/4 in SP |
