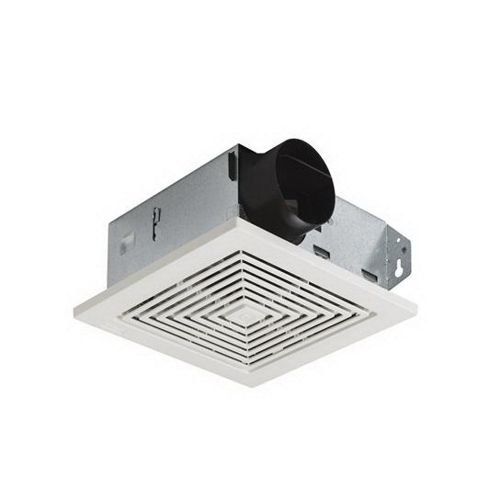

NuTone® 688 Bathroom Fan, 50 cfm, 3 in Duct, 120 VAC, 0.9 A, Domestic
Air Exhausters
470
MFG #: 688
NuTone®
25.07000
/ ea
NuTone® Bathroom Fan, 50 cfm, 3 in Duct Dia, 120 VAC, 0.9 A, 9 in Grille Length, 9-1/4 in Grille Width, 7-1/4 in Housing Length, 7-1/2 in Housing Width, 3-5/8 in Housing Height, Polymer Housing, Ceiling/Wall Mount, No, White, Domestic
- http://www.broan.com/(WEB SELLER HOME PAGE URL)
- WEB BROCHURE URL - BRO_IDEA_1230.pdf(WEB BROCHURE URL)
- WEB CATALOG URL - IDW_DOCUMENT_78131e2f8baa39f784c3b47e5e2a9570e71be2071316b45c62d53b58f5af3604.pdf(WEB CATALOG URL)
- WEB DATA SHEET 1 URL - Broan_688_Data_Sheet.pdf(WEB DATA SHEET 1 URL)
- WEB SPEC SHEET URL - SPE_08e1e51a-385b-4aad-a552-86599a1af9eb.pdf(WEB SPEC SHEET URL)
- WEB WARRANTY URL - warranty(WEB WARRANTY URL)
- Applications
- Features
| For use over bathtubs and showers when connected to a GFCI protected branch circuit, bathrooms upto 45 sq-ft |
| Torsion spring grille mounting - no tools required |
| Compact housing fits easily between ceiling joists or wall studs |
| Covered by U.S. and foreign patents |
| Single packs and project packs |
| UL listed for use over bathtubs or showers when connected to a GFCI circuit |
| 2 x 4 in minimum construction space required |
| Versatile, high quality ventilators at economy prices |
| Plug-in, permanently lubricated motor, Polymeric blower wheel |
| Polymeric blower wheel, snap-in/out motor assembly for easy cleaning no screws to drive or drop |
| Quiet polymeric damper prevents cold backdrafts no metallic clatter |
| 50 cfm at 0.1 in SP |
| 50 cfm at 0.1 in SP |
| Versatile, high quality ventilator at economy price; Plug-in, permanently lubricated motor; Polymeric blower wheel; Snap in/out motor assembly for easy cleaning no screws to drive or drop; Polymeric duct fitting with tapered sleeve for easy, positive duct connection; Quiet polymeric damper prevents cold backdrafts no metallic clatter; Torsion spring grille mounting no tools required; Metal grille kit available purchase separately; Compact, 25 GA galvanized steel housing attaches easily to wall or ceiling joists; Double strength mounting flanges with keyhole slots; Removable wiring cover make connections away from tight corners; No electrical knockout to remove; Use with controls model 59V (ivory)/59W (white) 60 minute time control or model 57V (ivory)/57W (white) 3 AMP electronic variable speed control or model 69V (ivory)/69W (white) single function control; 1 Y |
