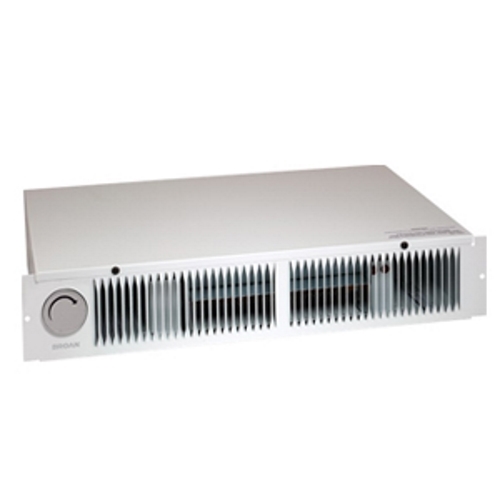

NuTone® 112 Low Profile Kickspace Heater With Built-in Thermostat, 5120 Btu/hr, 120 VAC, 6.25/12.5 A, 750/1500 W
Custom_Product_Images_Illustration
NuTone® 112 Low Profile Kickspace Heater With Built-in Thermostat, 5120 Btu/hr, 120 VAC, 6.25/12.5 A, 750/1500 W
SKU64935
MFGR #112
Your Cost: $359.16/ea
List: Kickspace heaters have a low profile design that provides floor-level heat from an out-of-the-way location. Great idea for light applications such as ticket/toll booths or checkout counters where ducting isn't possible. Factory wired at 1500W at 240VAC can be easily converted to 750W or 1500W at 120V for added versatility.
Kickspace heaters have a low profile design that provides floor-level heat from an out-of-the-way location. Great idea for light applications such as ticket/toll booths or checkout counters where ducting isn't possible. Factory wired at 1500W at 240VAC can be easily converted to 750W or 1500W at 120V for added versatility.
Amperage Rating 6.25/12.5 A Application For Cabinet Kickspaces, Vanity Bases, Stairways Or Any Place Where Space Is Limited, Also Ideal For Light-Commercial Applications Like Ticket/Toll Booths And Checkout Counters ARRA Compliant N Buy American Compliant N Capacity 5120 BTU/h Catalog Number 112 Color White Country of Origin USA Currency USD Domestic|Import Domestic EU RoHS Indicator N Gross Weight Per Pack 12.0000 lb Gross Weight per Pack Metric 5.44 Gross Weight UOM Metric kg Heater Type Fan Forced Height 1.17 in Height [Metric] 2.9718 cm Housing Material Steel Length 1.75 in Length [Metric] 4.4450 cm Model 112 Mounting Type Wall Power Rating 750/1500 W Standard UL Standards UL Listed Type Low Profile UNSPSC 40101809 UPC 11 02671500405 UPC 12 02671500405 Voltage Rating 120 VAC Wattage 750/1,500 W Width 0.42 in Width [Metric] 10.6680 mm Stock Status NONSTOCK Brand Broan® Manufacturer Broan-NuTone, LLC For Cabinet Kickspaces, Vanity Bases, Stairways Or Any Place Where Space Is Limited, Also Ideal For Light-Commercial Applications Like Ticket/Toll Booths And Checkout Counters Features: Steel-Sheathed, Plate-Finned, Heavy-Duty Heating Element; Factory Wired For 1500 W At 240 VAC, Easily Converts To 750 W Or 1500 W At 120 V; Attractive White Grille; Vertical Louvers - Disperse Heat Evenly, Front-Mounted, Snap Action, Bimetallic Thermostat; Mounts Into Standard Kickspaces Beneath Cabinets, Vanities, Counters, Stairways; Finish: Attractive White Grille; Amperage Rating: 6.2 AMP; Btu/hr: 5120, 2560/5120 BTU/HR White grille has a baked enamel finish and 1-piece design for durability No extended warm up time due to an efficient steel sheathed, plate finned heating element that provides comfortable heat in seconds Quiet, thermally protected motor shuts off in event of overheating and transverse blower circulates heated air for optimal room warming Slim design tucks under cabinet kickspaces, vanities, stairways or any place where space is limited and a little extra heat is desired to make your environment cozier Kickspace heaters are intended to provide supplemental heat from a wall location and not to take the place of a home's main heat source Control temperature with optional line voltage thermostat (model 86W) or timer (models 59V or 59W 60 mon timer or models 61V or 61W 15 min timer) for a simple and convenient way to control the heater Auto short-circuit Wall switch control 3-5/8 H x 19-1/4 in W grille 3-5/8 in H x 18 in W housing Steel housing Variable number of heat settings 5120 Btu/hr at 120 VAC, 3840 Btu/hr at 208 VAC, 5120 Btu/hr at 240 VAC 750/1500 W and 6.25/12.5 A at 120 VAC, 1125 W and 5.41 A at 208 VAC, 1500 W and 6.25 A at 240 VAC 750/1500 W and 6.25/12.5 A at 120 VAC, 1125 W and 5.41 A at 208 VAC, 1500 W and 6.25 A at 240 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 6.25/12.5 A |
| Application | For Cabinet Kickspaces, Vanity Bases, Stairways Or Any Place Where Space Is Limited, Also Ideal For Light-Commercial Applications Like Ticket/Toll Booths And Checkout Counters |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Capacity | 5120 BTU/h |
| Catalog Number | 112 |
| Color | White |
| Country of Origin | USA |
| Currency | USD |
| Domestic|Import | Domestic |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 12.0000 lb |
| Gross Weight per Pack Metric | 5.44 |
| Gross Weight UOM Metric | kg |
| Heater Type | Fan Forced |
| Height | 1.17 in |
| Height [Metric] | 2.9718 cm |
| Housing Material | Steel |
| Length | 1.75 in |
| Length [Metric] | 4.4450 cm |
| Model | 112 |
| Mounting Type | Wall |
| Power Rating | 750/1500 W |
| Standard | UL |
| Standards | UL Listed |
| Type | Low Profile |
| UNSPSC | 40101809 |
| UPC 11 | 02671500405 |
| UPC 12 | 02671500405 |
| Voltage Rating | 120 VAC |
| Wattage | 750/1,500 W |
| Width | 0.42 in |
| Width [Metric] | 10.6680 mm |
| Stock Status | NONSTOCK |
| Brand | Broan® |
| Manufacturer | Broan-NuTone, LLC |
| For Cabinet Kickspaces, Vanity Bases, Stairways Or Any Place Where Space Is Limited, Also Ideal For Light-Commercial Applications Like Ticket/Toll Booths And Checkout Counters |
| Features: Steel-Sheathed, Plate-Finned, Heavy-Duty Heating Element; Factory Wired For 1500 W At 240 VAC, Easily Converts To 750 W Or 1500 W At 120 V; Attractive White Grille; Vertical Louvers - Disperse Heat Evenly, Front-Mounted, Snap Action, Bimetallic Thermostat; Mounts Into Standard Kickspaces Beneath Cabinets, Vanities, Counters, Stairways; Finish: Attractive White Grille; Amperage Rating: 6.2 AMP; Btu/hr: 5120, 2560/5120 BTU/HR |
| White grille has a baked enamel finish and 1-piece design for durability |
| No extended warm up time due to an efficient steel sheathed, plate finned heating element that provides comfortable heat in seconds |
| Quiet, thermally protected motor shuts off in event of overheating and transverse blower circulates heated air for optimal room warming |
| Slim design tucks under cabinet kickspaces, vanities, stairways or any place where space is limited and a little extra heat is desired to make your environment cozier |
| Kickspace heaters are intended to provide supplemental heat from a wall location and not to take the place of a home's main heat source |
| Control temperature with optional line voltage thermostat (model 86W) or timer (models 59V or 59W 60 mon timer or models 61V or 61W 15 min timer) for a simple and convenient way to control the heater |
| Auto short-circuit |
| Wall switch control |
| 3-5/8 H x 19-1/4 in W grille |
| 3-5/8 in H x 18 in W housing |
| Steel housing |
| Variable number of heat settings |
| 5120 Btu/hr at 120 VAC, 3840 Btu/hr at 208 VAC, 5120 Btu/hr at 240 VAC |
| 750/1500 W and 6.25/12.5 A at 120 VAC, 1125 W and 5.41 A at 208 VAC, 1500 W and 6.25 A at 240 VAC |
| 750/1500 W and 6.25/12.5 A at 120 VAC, 1125 W and 5.41 A at 208 VAC, 1500 W and 6.25 A at 240 VAC |
