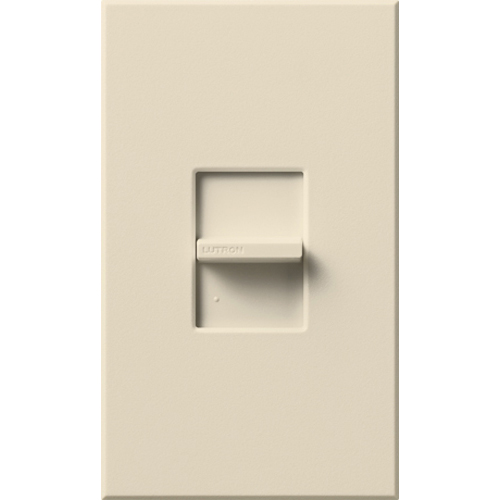

Nova T® NTLV-1000-LA Architectural Small Dimmer Switch, 120 VAC, 1 Pole, Slide-to-Off Mode, Light Almond
Nova T® NTLV-1000-LA Architectural Small Dimmer Switch, 120 VAC, 1 Pole, Slide-to-Off Mode, Light Almond
SKU545213
MFGR #NTLV-1000-LA
Your Cost: $247.20/ea
Dimmers & switches with a wide array of styles, colors, and control options, Lutron offers hundreds of choices in stand-alone dimmers and switches. Multiple designs and control openings compliment any decor and provide functionality for ambiance, convenience, and security-meeting all of your lighting control needs.
Dimmers & switches with a wide array of styles, colors, and control options, Lutron offers hundreds of choices in stand-alone dimmers and switches. Multiple designs and control openings compliment any decor and provide functionality for ambiance, convenience, and security-meeting all of your lighting control needs.
Actuator Slide Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number NTLV-1000-LA Connection Wire Leads Connection Type Wire Leads Control Slider Country of Origin KN Currency USD Dimensions 4.56 in H x 2.75 in W x 0.3 in D Enclosure Plastic Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only. EU RoHS Indicator N Face Material Metal;Plastic Frequency Rating 50-60 Hz Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.5100 lb Gross Weight per Pack Metric 0.27 Gross Weight UOM Metric kg Height 5.30 in Height [Metric] 13.4620 cm Insulation Plastic Lamp Type Magnetic Low Voltage Length 3.10 in Length [Metric] 7.8740 cm Material Metal/Plastic Mounting Wallbox Mounting Type Wall Number Of Poles 1 Operating Temperature 32 to 104 °F Power Rating 800 W Series NTLV-1000 Size 4.56 x 2.75 in Standard UL, CSA, NOM Standards UL ListedCSA CertifiedNOM Certified Start Type Pre-Set Sub Brand Nova T Switch Type Slide Temperature Rating 0 to 40 °C Terminal Type Screw Type Slide-to-off dimmer, single-pole UNSPSC 39122206 UPC 11 02755709290 UPC 12 027557092906 Wattage 800 W Width 4.10 in Width [Metric] 10.4140 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Color Light Almond Operation Mode Slide to Off Voltage Rating 120 VAC Lighting Control Controls 1000 VA (800 W) magnetic low-voltage loads. Slide up to brighten, down to dim. Full family of controls plus matching fan controls, switches and wiring devices Exclusive dimmer/switch size opening Slide adjusts light to suit any activity Classic slider, thin profile design Voltage compensation maintains stable light levels, despite line voltage variations Mechanical air gap switch to disconnect load power 100% factory tested Superior RFI suppression Lutron controls are rated at 120 VAC, 60 Hz unless otherwise noted Slider button slides up to brighten and down to dim
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Slide |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | NTLV-1000-LA |
| Connection | Wire Leads |
| Connection Type | Wire Leads |
| Control | Slider |
| Country of Origin | KN |
| Currency | USD |
| Dimensions | 4.56 in H x 2.75 in W x 0.3 in D |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| EU RoHS Indicator | N |
| Face Material | Metal;Plastic |
| Frequency Rating | 50-60 Hz |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.5100 lb |
| Gross Weight per Pack Metric | 0.27 |
| Gross Weight UOM Metric | kg |
| Height | 5.30 in |
| Height [Metric] | 13.4620 cm |
| Insulation | Plastic |
| Lamp Type | Magnetic Low Voltage |
| Length | 3.10 in |
| Length [Metric] | 7.8740 cm |
| Material | Metal/Plastic |
| Mounting | Wallbox |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 800 W |
| Series | NTLV-1000 |
| Size | 4.56 x 2.75 in |
| Standard | UL, CSA, NOM |
| Standards | UL ListedCSA CertifiedNOM Certified |
| Start Type | Pre-Set |
| Sub Brand | Nova T |
| Switch Type | Slide |
| Temperature Rating | 0 to 40 °C |
| Terminal Type | Screw |
| Type | Slide-to-off dimmer, single-pole |
| UNSPSC | 39122206 |
| UPC 11 | 02755709290 |
| UPC 12 | 027557092906 |
| Wattage | 800 W |
| Width | 4.10 in |
| Width [Metric] | 10.4140 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Color | Light Almond |
| Operation Mode | Slide to Off |
| Voltage Rating | 120 VAC |
| Lighting Control |
| Controls 1000 VA (800 W) magnetic low-voltage loads. Slide up to brighten, down to dim. |
| Full family of controls plus matching fan controls, switches and wiring devices |
| Exclusive dimmer/switch size opening |
| Slide adjusts light to suit any activity |
| Classic slider, thin profile design |
| Voltage compensation maintains stable light levels, despite line voltage variations |
| Mechanical air gap switch to disconnect load power |
| 100% factory tested |
| Superior RFI suppression |
| Lutron controls are rated at 120 VAC, 60 Hz unless otherwise noted |
| Slider button slides up to brighten and down to dim |
