Lutron®

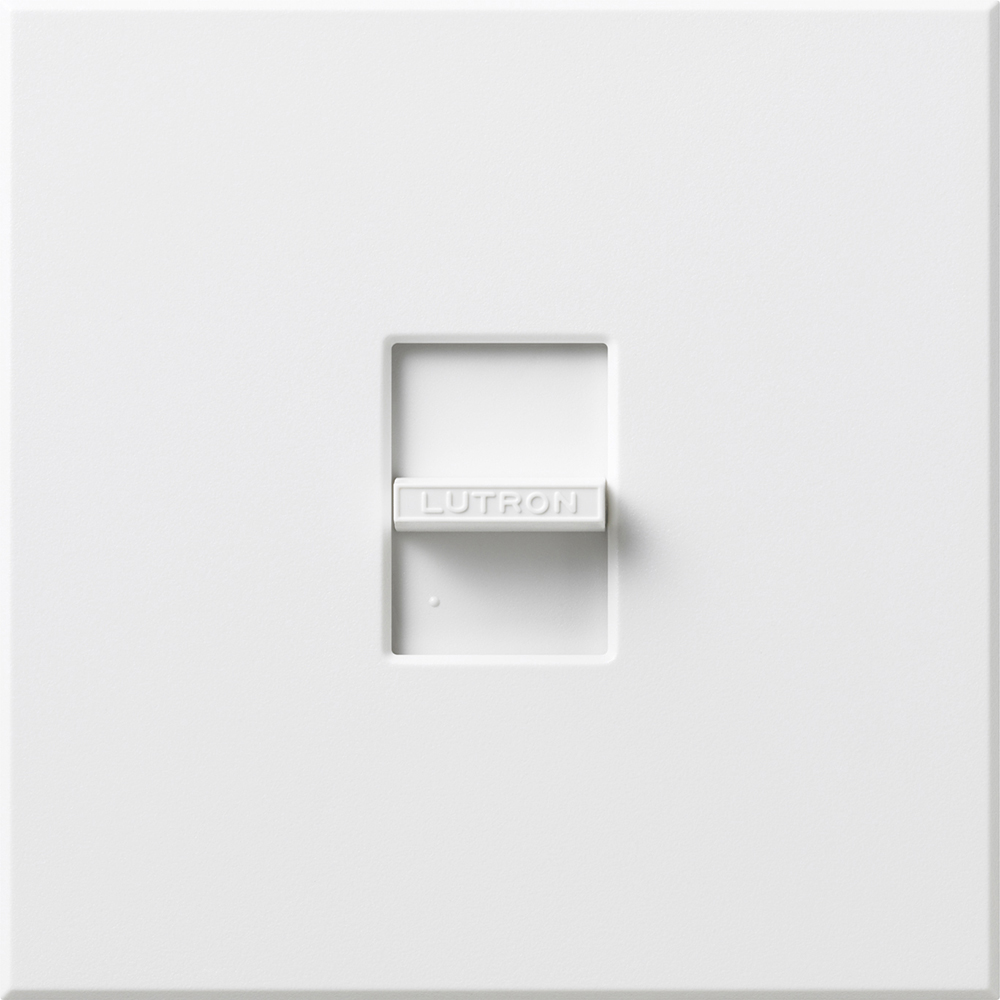

Nova® NLV-1000-WH Large Control Magnetic Low Voltage Dimmer, 120 VAC, 1 Pole, Slide to Off Mode, White
Lutron®
Nova® NLV-1000-WH Large Control Magnetic Low Voltage Dimmer, 120 VAC, 1 Pole, Slide to Off Mode, White
SKU611
MFGR #NLV-1000-WH
Your Cost: $231.75/ea
Nova® Low Voltage Dimmer, Large Control Magnetic, 120 VAC, 800 W, 60 Hz, 1 Pole, Operation Mode: Slide to Off, Linear Slide, Wall Box Mount, Screw Terminal, White, 4.56 in H x 4.56 in W x 0.65 in D
Nova® Low Voltage Dimmer, Large Control Magnetic, 120 VAC, 800 W, 60 Hz, 1 Pole, Operation Mode: Slide to Off, Linear Slide, Wall Box Mount, Screw Terminal, White, 4.56 in H x 4.56 in W x 0.65 in D
Actuator Slide Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number NLV-1000-WH Connection Wire Leads Connection Type Wire Leads Control Linear Slide Country of Origin KN Currency USD Dimensions 4.56 in H x 2.75 in W x 0.65 in D Enclosure Plastic EU RoHS Indicator N Face Material Metal;Plastic Frequency Rating 60 Hz Gross Volume Per Pack 0.06 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.7900 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Height 5.40 in Height [Metric] 13.7160 cm Insulation Plastic Lamp Type Cold Cathode/Neon Length 4.00 in Length [Metric] 10.1600 cm Material Metal/Plastic Mounting Wallbox Mounting Type Wall Number Of Poles 1 Operating Temperature 32 to 104 °F Power Rating 800 W Series NLV-1000 Size 4.56 x 4.56 in Standard UL, CSA, NOM, ANSI/IEEE Std. C62.41-1980 Standards UL ListedCSA CertifiedNOM Certified Sub Brand Nova Switch Type Slide Temperature Rating 0 to 40 °C Terminal Type Screw Type Slide-to-off dimmer, single-pole UNSPSC 39122206 UPC 11 02755737092 UPC 12 027557370929 Wattage 800 W Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Color White Operation Mode Slide to Off Voltage Rating 120 VAC Lighting Control Controls 1000 VA/800 W magnetic low-voltage or neon/cold cathode loads. Higher capacity dimmer, requires large heat sink behind wallplate. Slide up to brighten, down to dim. Measures 4.56 in x 4.56 in. Requires large wallplate. Fits in 1-gang electrical backbox. Nova® dimmers are the contractor's choice in rugged, linear slide dimmers Slide adjusts light to suit any activity Full family of controls plus matching fan controls, switches and wiring devices Voltage compensation maintains stable light levels, despite line voltage variations Mechanical air gap switch to disconnect load power 100% factory tested Higher capacity dimmers require larger heat sink behind wallplate Most can fit in a 1-gang electrical backbox
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | Slide |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | NLV-1000-WH |
| Connection | Wire Leads |
| Connection Type | Wire Leads |
| Control | Linear Slide |
| Country of Origin | KN |
| Currency | USD |
| Dimensions | 4.56 in H x 2.75 in W x 0.65 in D |
| Enclosure | Plastic |
| EU RoHS Indicator | N |
| Face Material | Metal;Plastic |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 0.06 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.7900 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Height | 5.40 in |
| Height [Metric] | 13.7160 cm |
| Insulation | Plastic |
| Lamp Type | Cold Cathode/Neon |
| Length | 4.00 in |
| Length [Metric] | 10.1600 cm |
| Material | Metal/Plastic |
| Mounting | Wallbox |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 800 W |
| Series | NLV-1000 |
| Size | 4.56 x 4.56 in |
| Standard | UL, CSA, NOM, ANSI/IEEE Std. C62.41-1980 |
| Standards | UL ListedCSA CertifiedNOM Certified |
| Sub Brand | Nova |
| Switch Type | Slide |
| Temperature Rating | 0 to 40 °C |
| Terminal Type | Screw |
| Type | Slide-to-off dimmer, single-pole |
| UNSPSC | 39122206 |
| UPC 11 | 02755737092 |
| UPC 12 | 027557370929 |
| Wattage | 800 W |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Color | White |
| Operation Mode | Slide to Off |
| Voltage Rating | 120 VAC |
| Lighting Control |
| Controls 1000 VA/800 W magnetic low-voltage or neon/cold cathode loads. Higher capacity dimmer, requires large heat sink behind wallplate. Slide up to brighten, down to dim. Measures 4.56 in x 4.56 in. Requires large wallplate. Fits in 1-gang electrical backbox. |
| Nova® dimmers are the contractor's choice in rugged, linear slide dimmers |
| Slide adjusts light to suit any activity |
| Full family of controls plus matching fan controls, switches and wiring devices |
| Voltage compensation maintains stable light levels, despite line voltage variations |
| Mechanical air gap switch to disconnect load power |
| 100% factory tested |
| Higher capacity dimmers require larger heat sink behind wallplate |
| Most can fit in a 1-gang electrical backbox |
