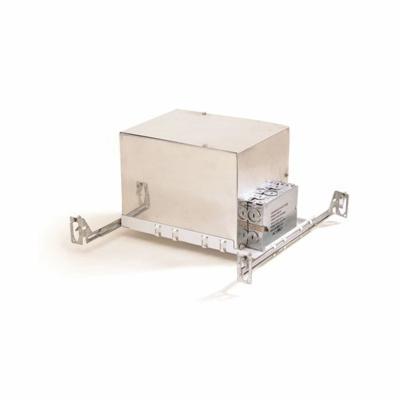

Nora Lighting® NLIC-401QSAT Airtight Double Wall Low Voltage Housing, MR16 Lamp, IC Thermal Insulation, 120 VAC/12 VDC
Nora Lighting® NLIC-401QSAT Airtight Double Wall Low Voltage Housing, MR16 Lamp, IC Thermal Insulation, 120 VAC/12 VDC
SKUPDW~3777241
MFGR #NLIC-401QSAT
Price Not Available
Nora Lighting's 4 in low voltage IC small low profile double wall housing provides crisp, defined MR16 quartz halogen illumination to any insulated ceiling application. Air-Tight construction offers energy savings by reducing the flow of air through the ceiling. The small profile of this series provides easy installation to any joist or steel stud construction. A wide variety of attractive adjustable trims allows fine-tuned aiming of direction light sources.
Nora Lighting's 4 in low voltage IC small low profile double wall housing provides crisp, defined MR16 quartz halogen illumination to any insulated ceiling application. Air-Tight construction offers energy savings by reducing the flow of air through the ceiling. The small profile of this series provides easy installation to any joist or steel stud construction. A wide variety of attractive adjustable trims allows fine-tuned aiming of direction light sources.
Catalog Number NLIC-401QSAT Color White Country of Origin US Depth 12-11/16 in Diameter 4 in Gross Weight Per Pack 1 lb Height 7-1/4 in Lamp Wattage 50 W Mounting Type Ceiling Number Of Lamps 1 Standards cULus Listed, ASTM-283 Suitable For Use With Low Voltage MR16 Lamp Type Airtight Double Wall UNSPSC 39111505 UPC 11 73218040340 Width 8-1/8 in Stock Status NONSTOCK Brand Nora Lighting® Manufacturer Nora Lighting Ceiling Opening 4-3/8 in Housing Material Steel Insulation Type IC Thermal Lamp Type MR-16 Voltage Rating 120 VAC/12 VDC Pre-installed gaskets to restrict airflow from room into ceiling plenum housing IC housing is direct contact rated, no minimum clearance is required Ceiling thickness varies from 5/8 to 1-3/8 in Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment All low voltage trims include a tempered UV/shatter shield Bar hangers are adjustable from 13-5/8 to 24-1/2 in and can be repositioned 90 deg Junction box is listed for through branch circuit wiring and contains (7) 1/2 in knockouts and (4) Romex® pryouts with strain relief Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer Quick connector provided Magnetic transformer
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | NLIC-401QSAT |
| Color | White |
| Country of Origin | US |
| Depth | 12-11/16 in |
| Diameter | 4 in |
| Gross Weight Per Pack | 1 lb |
| Height | 7-1/4 in |
| Lamp Wattage | 50 W |
| Mounting Type | Ceiling |
| Number Of Lamps | 1 |
| Standards | cULus Listed, ASTM-283 |
| Suitable For Use With | Low Voltage MR16 Lamp |
| Type | Airtight Double Wall |
| UNSPSC | 39111505 |
| UPC 11 | 73218040340 |
| Width | 8-1/8 in |
| Stock Status | NONSTOCK |
| Brand | Nora Lighting® |
| Manufacturer | Nora Lighting |
| Ceiling Opening | 4-3/8 in |
| Housing Material | Steel |
| Insulation Type | IC Thermal |
| Lamp Type | MR-16 |
| Voltage Rating | 120 VAC/12 VDC |
| Pre-installed gaskets to restrict airflow from room into ceiling plenum housing |
| IC housing is direct contact rated, no minimum clearance is required |
| Ceiling thickness varies from 5/8 to 1-3/8 in |
| Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment |
| All low voltage trims include a tempered UV/shatter shield |
| Bar hangers are adjustable from 13-5/8 to 24-1/2 in and can be repositioned 90 deg |
| Junction box is listed for through branch circuit wiring and contains (7) 1/2 in knockouts and (4) Romex® pryouts with strain relief |
| Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer |
| Quick connector provided |
| Magnetic transformer |
