TORK®

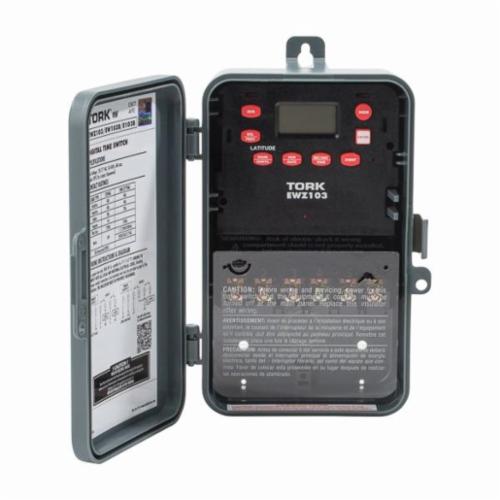

NSI Tork® EWZ103 Electronic Timer, 1 min to 24 hr/7 Days Time Setting, 120 to 277 VAC, 1 hp/2 hp, DPST Contact Form
Custom_Product_Images_Illustration
TORK®
NSI Tork® EWZ103 Electronic Timer, 1 min to 24 hr/7 Days Time Setting, 120 to 277 VAC, 1 hp/2 hp, DPST Contact Form
SKU1175926
MFGR #EWZ103
Your Cost: $409.16/ea
List: NSI Tork® Electronic Timer, Operation Mode: Astro 7 Days, 120 to 277 VAC, 40 A, 1 hp/2 hp, 2 Poles, 1 Channel, DPST, 1 min to 24 hr/7 Days, NEMA 3R, -40 to 65 deg C, Threaded Mount, 5.062 in H x 3.062 in W x 8.312 in D
NSI Tork® Electronic Timer, Operation Mode: Astro 7 Days, 120 to 277 VAC, 40 A, 1 hp/2 hp, 2 Poles, 1 Channel, DPST, 1 min to 24 hr/7 Days, NEMA 3R, -40 to 65 deg C, Threaded Mount, 5.062 in H x 3.062 in W x 8.312 in D
Amperage Rating 40 A Catalog Number EWZ103 Country of Origin US Dimensions 5.062 in L x 3.062 in W x 8.312 in H Display Type Digital Enclosure Type NEMA 3R Gross Weight Per Pack 1.5500 lb Mounting Type Threaded Number of Channels 1 Number Of Poles 2 Standards cULus Listed, California Title 24 Compliant Temperature Rating -40 to 149 °F UNSPSC 39121523 UPC 11 78626182473 UPC 12 786261824738 Stock Status NONSTOCK Brand TORK® Manufacturer NSi Industries, LLC Contact Form DPST Horsepower 1, 2 hp Time Setting 1 min to 24 hr/7 days Voltage Rating 120 to 277 VAC 20 On-Off Set Points - Daylight Savings Auto - Leap Year Automatic Compensation 20 On and Off set points for individual programs for each day of the week, minimum setting is 1 min Adjusts daily to changes in sunset time Adjustable 10 to 60 deg northern or southern latitudes can be individually offset +/-1 to 240 min from both sunset and sunrise times Automatic daylight saving Automatic leap year compensation Until the next regularly scheduled On or Off, automatic operation then resume AM/PM clock format Permanent schedule retention Super capacitor provides 4 days of real time backup 1 hp at 120 VAC/2 hp at 240 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 40 A |
| Catalog Number | EWZ103 |
| Country of Origin | US |
| Dimensions | 5.062 in L x 3.062 in W x 8.312 in H |
| Display Type | Digital |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 1.5500 lb |
| Mounting Type | Threaded |
| Number of Channels | 1 |
| Number Of Poles | 2 |
| Standards | cULus Listed, California Title 24 Compliant |
| Temperature Rating | -40 to 149 °F |
| UNSPSC | 39121523 |
| UPC 11 | 78626182473 |
| UPC 12 | 786261824738 |
| Stock Status | NONSTOCK |
| Brand | TORK® |
| Manufacturer | NSi Industries, LLC |
| Contact Form | DPST |
| Horsepower | 1, 2 hp |
| Time Setting | 1 min to 24 hr/7 days |
| Voltage Rating | 120 to 277 VAC |
| 20 On-Off Set Points - Daylight Savings Auto - Leap Year Automatic Compensation |
| 20 On and Off set points for individual programs for each day of the week, minimum setting is 1 min |
| Adjusts daily to changes in sunset time |
| Adjustable 10 to 60 deg northern or southern latitudes can be individually offset +/-1 to 240 min from both sunset and sunrise times |
| Automatic daylight saving |
| Automatic leap year compensation |
| Until the next regularly scheduled On or Off, automatic operation then resume |
| AM/PM clock format |
| Permanent schedule retention |
| Super capacitor provides 4 days of real time backup |
| 1 hp at 120 VAC/2 hp at 240 VAC |
