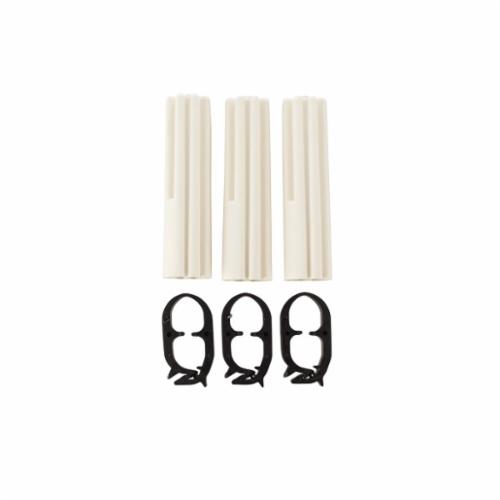

NSI GSS-2 Easy-Splice™ GSS Push-On Gel Stub Splice Kit, 1000 VAC, 8 to 2 AWG Conductor
Custom_Product_Images_Illustration
NSI
NSI GSS-2 Easy-Splice™ GSS Push-On Gel Stub Splice Kit, 1000 VAC, 8 to 2 AWG Conductor
SKUPDW~1759337
MFGR #GSS-2
Your Cost: $130.73/ea
NSI Easy-Splice™ Gel Stub Splice Kit, Push-On, Series: GSS, 1000 VAC, Class A-B Cable, 8 to 2 AWG Conductor, 105 deg C, White
NSI Easy-Splice™ Gel Stub Splice Kit, Push-On, Series: GSS, 1000 VAC, Class A-B Cable, 8 to 2 AWG Conductor, 105 deg C, White
Cable Type Class A-B Catalog Number GSS-2 Color White Country of Origin MX Gross Weight Per Pack 0.2600 lb Number Of Conductors 2 Series GSS Standards cULus Listed Temperature Rating 105 °C Type Push-On UNSPSC 39121718 UPC 11 66238101556 UPC 12 662381015563 Stock Status NONSTOCK Brand NSI Manufacturer NSi Industries, LLC Conductor Size 8 to 2 AWG Voltage Rating 1000 VAC Gel Stub Splice Quickly And Convenietly Insulate - Seal And Protect Stub Splice Connections Robust yet compact design is engineered to handle the harsh environment of motor and many other connection applications (including street lights) Specially formulated material provides excellent abrasion resistance, insulation value and UV resistance Each cap size is designed to fit a wide range of cable sizes Expandable design keeps the cap as small as possible allowing It to expand only as much as needed to fit Kit is designed for three of each one per phase GSS connector kits provide the fastest installation, simply slide the cover down over the connection and snap the clamp closed no extra materials (greases) are required, the sealant gel is already in the cap Quickly and conveniently insulate, seal and protect stub splice connections up to 1000 VAC 1 in L x 5/8 in W maximum bolt 1 in L lug barrel 2 in L lug 3-1/2 in L cap 2 cables
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Cable Type | Class A-B |
| Catalog Number | GSS-2 |
| Color | White |
| Country of Origin | MX |
| Gross Weight Per Pack | 0.2600 lb |
| Number Of Conductors | 2 |
| Series | GSS |
| Standards | cULus Listed |
| Temperature Rating | 105 °C |
| Type | Push-On |
| UNSPSC | 39121718 |
| UPC 11 | 66238101556 |
| UPC 12 | 662381015563 |
| Stock Status | NONSTOCK |
| Brand | NSI |
| Manufacturer | NSi Industries, LLC |
| Conductor Size | 8 to 2 AWG |
| Voltage Rating | 1000 VAC |
| Gel Stub Splice Quickly And Convenietly Insulate - Seal And Protect Stub Splice Connections |
| Robust yet compact design is engineered to handle the harsh environment of motor and many other connection applications (including street lights) |
| Specially formulated material provides excellent abrasion resistance, insulation value and UV resistance |
| Each cap size is designed to fit a wide range of cable sizes |
| Expandable design keeps the cap as small as possible allowing It to expand only as much as needed to fit |
| Kit is designed for three of each one per phase |
| GSS connector kits provide the fastest installation, simply slide the cover down over the connection and snap the clamp closed no extra materials (greases) are required, the sealant gel is already in the cap |
| Quickly and conveniently insulate, seal and protect stub splice connections up to 1000 VAC |
| 1 in L x 5/8 in W maximum bolt |
| 1 in L lug barrel |
| 2 in L lug |
| 3-1/2 in L cap |
| 2 cables |
