NSI

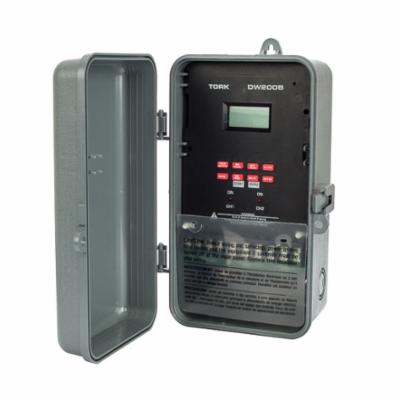

NSI DW200B Tork® DW Series Digital Electronic Timer With Holiday 2-Channel, 1 min to 365 Days Time Setting, 120 to 277 VAC
NSI
NSI DW200B Tork® DW Series Digital Electronic Timer With Holiday 2-Channel, 1 min to 365 Days Time Setting, 120 to 277 VAC
SKU1312394
MFGR #DW200B
Your Cost: $296.29/ea
List: NSI Tork® Electronic Timer, Digital, Series: DW Series, Operation Mode: 365 Days, 120 to 277 VAC, 30 A, 1 hp/2 hp, 1 Pole, 2 Channels, SPDT, 1 min to 365 Days, LED Display, NEMA 3R, -40 to 158 deg F, Threaded Mount, 5 in L x 4-1/2 in W x 9-1/8 in H
NSI Tork® Electronic Timer, Digital, Series: DW Series, Operation Mode: 365 Days, 120 to 277 VAC, 30 A, 1 hp/2 hp, 1 Pole, 2 Channels, SPDT, 1 min to 365 Days, LED Display, NEMA 3R, -40 to 158 deg F, Threaded Mount, 5 in L x 4-1/2 in W x 9-1/8 in H
Amperage Rating 30 A Catalog Number DW200B Country of Origin US Dimensions 5 in L x 4-1/2 in W x 9-1/8 in H Display Type LED Enclosure Type NEMA 3R Gross Weight Per Pack 1 lb Mounting Type Threaded Number of Channels 2 Number Of Poles 1 Operation Mode 365 Days Series DW Series Standards CSA Certified, cULus Listed Temperature Rating -40 to 158 °F Type Digital UNSPSC 39121523 UPC 11 78626182190 Stock Status NONSTOCK Brand NSI Manufacturer NSi Industries, LLC Contact Form SPDT Horsepower 1 hp, 2 hp Time Setting 1 min to 365 Days Voltage Rating 120 to 277 VAC 99 On-Off Set Points - Astronomic Time Switch With Holiday Schedule And Manual Override 99 ON/OFF set points allow individual programs for each day of the week at a minimum 1 min apart Adjusts daily to changes in sunset time Adjustable 10 to 60 deg northern or southern latitude Can be individually offset +/- 1 to 240 minutes from both sunset and sunrise times 1 to 24 individual dates holiday Automatic adjustment (can be omitted) Automatic leap year compensation Until the next regularly scheduled on or OFF, automatic operation then resumes AM/PM or 24 hr clock format Permanent schedule retention with memory module Super capacitor provides 7-days of real time backup 14 to 16 AWG for line input 12 to 16 AWG load output 5 VA maximum power consumption 50/60 Hz frequency rating Noryl indoor-outdoor enclosure
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 30 A |
| Catalog Number | DW200B |
| Country of Origin | US |
| Dimensions | 5 in L x 4-1/2 in W x 9-1/8 in H |
| Display Type | LED |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 1 lb |
| Mounting Type | Threaded |
| Number of Channels | 2 |
| Number Of Poles | 1 |
| Operation Mode | 365 Days |
| Series | DW Series |
| Standards | CSA Certified, cULus Listed |
| Temperature Rating | -40 to 158 °F |
| Type | Digital |
| UNSPSC | 39121523 |
| UPC 11 | 78626182190 |
| Stock Status | NONSTOCK |
| Brand | NSI |
| Manufacturer | NSi Industries, LLC |
| Contact Form | SPDT |
| Horsepower | 1 hp, 2 hp |
| Time Setting | 1 min to 365 Days |
| Voltage Rating | 120 to 277 VAC |
| 99 On-Off Set Points - Astronomic Time Switch With Holiday Schedule And Manual Override |
| 99 ON/OFF set points allow individual programs for each day of the week at a minimum 1 min apart |
| Adjusts daily to changes in sunset time |
| Adjustable 10 to 60 deg northern or southern latitude |
| Can be individually offset +/- 1 to 240 minutes from both sunset and sunrise times |
| 1 to 24 individual dates holiday |
| Automatic adjustment (can be omitted) |
| Automatic leap year compensation |
| Until the next regularly scheduled on or OFF, automatic operation then resumes |
| AM/PM or 24 hr clock format |
| Permanent schedule retention with memory module |
| Super capacitor provides 7-days of real time backup |
| 14 to 16 AWG for line input |
| 12 to 16 AWG load output |
| 5 VA maximum power consumption |
| 50/60 Hz frequency rating |
| Noryl indoor-outdoor enclosure |
