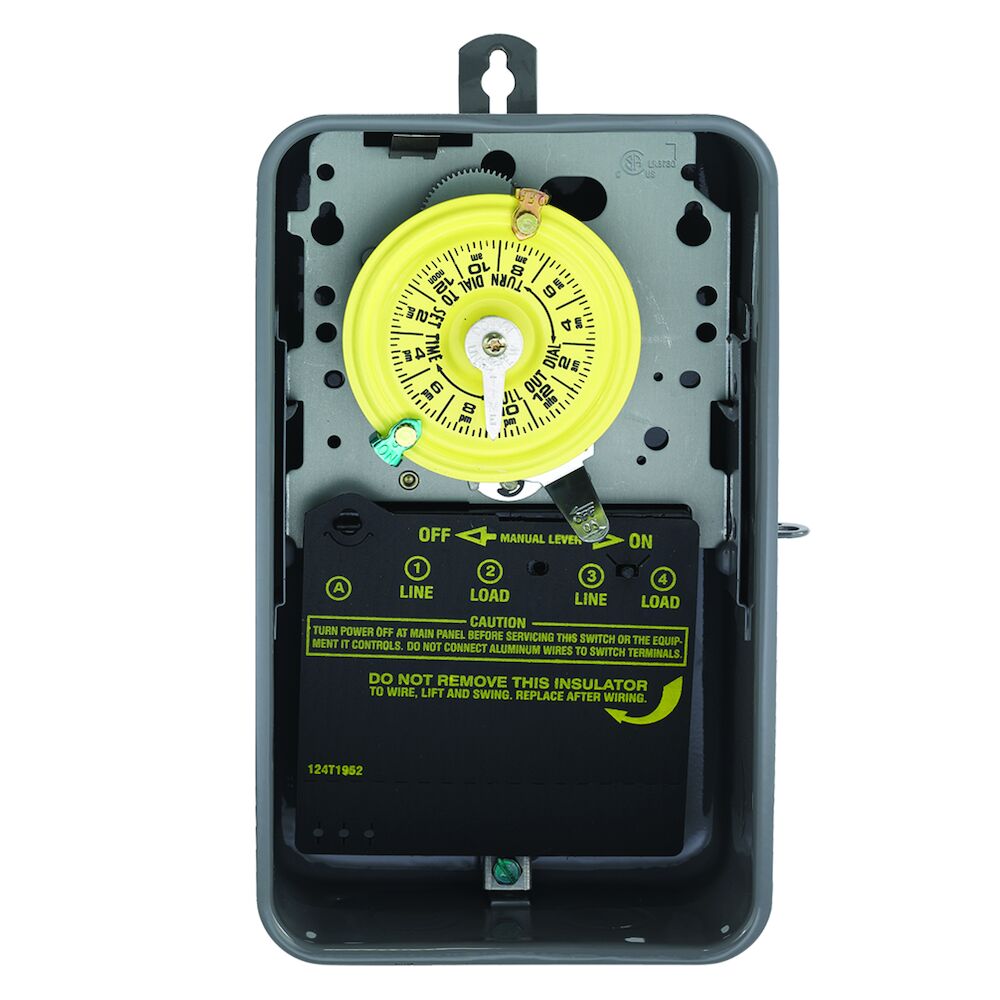

NEMA 3R - Steel Case 208-277 V SPDT
SKU71831
MFGR #T106R
Your Cost: $165.45/ea
List: The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Action SPDT Amperage Rating 40 A Application Commercial, Industrial, Residential, Outdoor, HVACR ARRA Compliant N Buy American Compliant N Catalog Number T106R Connection Teeter Type Contact Configuration 1 NO/1 NC Contact Rating 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 (Tungsten) Country of Origin MX Currency USD Enclosure NEMA 3R Steel EU RoHS Indicator X Frequency Rating 60 Hz Gross Weight Per Pack 21.7000 lb Gross Weight per Pack Metric 1.64 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9107008000 Height 10.06 in Height [Metric] 25.5524 cm Length 6.60 in Length [Metric] 16.7640 cm Motor Power 2 HP 120 VAC, 5 HP 240 VAC Mounting Wall Mount Number Of Poles 1 Operating Temperature -40 to +130 DEG F, -40 to +54 DEG C Size 5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM Standard cCSAus Certified, HVACR Standards cCSAus Certified, cULus Listed, HVACR, RoHS Compliant Timer Duration 24 hr Timing Range 0-24 hr Type Electromechanical UNSPSC 39122208 UPC 11 07827510428 UPC 12 07827510428 Wattage 3 W Width 4.00 in Width [Metric] 10.1600 cm Stock Status NONSTOCK Brand Intermatic® Manufacturer Intermatic Incorporated Voltage Rating 208 to 277 VAC Commercial, Industrial, Residential, Outdoor, HVACR Features: Provides direct 24-Hour control of most loads, 1 to 12 ON/OFF operations each day, Minimum ON/OFF times of 1 hour, Manual override, 1 Year Warranty Direct 24-hour control of most loads Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour Manual override One ON and one OFF tripper included 40 A at 120 - 480 VAC (resistive), 40 A (inductive), 40 A at 120 - 277 (tungsten) 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor 60 Hz 3 W power 1000 VA pilot duty 14 - 8 AWG 16 A, 277 VAC electronic ballast 24 hr time duration
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SPDT |
| Amperage Rating | 40 A |
| Application | Commercial, Industrial, Residential, Outdoor, HVACR |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | T106R |
| Connection | Teeter Type |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 (Tungsten) |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 3R Steel |
| EU RoHS Indicator | X |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 21.7000 lb |
| Gross Weight per Pack Metric | 1.64 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9107008000 |
| Height | 10.06 in |
| Height [Metric] | 25.5524 cm |
| Length | 6.60 in |
| Length [Metric] | 16.7640 cm |
| Motor Power | 2 HP 120 VAC, 5 HP 240 VAC |
| Mounting | Wall Mount |
| Number Of Poles | 1 |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Size | 5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM |
| Standard | cCSAus Certified, HVACR |
| Standards | cCSAus Certified, cULus Listed, HVACR, RoHS Compliant |
| Timer Duration | 24 hr |
| Timing Range | 0-24 hr |
| Type | Electromechanical |
| UNSPSC | 39122208 |
| UPC 11 | 07827510428 |
| UPC 12 | 07827510428 |
| Wattage | 3 W |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NONSTOCK |
| Brand | Intermatic® |
| Manufacturer | Intermatic Incorporated |
| Voltage Rating | 208 to 277 VAC |
| Commercial, Industrial, Residential, Outdoor, HVACR |
| Features: Provides direct 24-Hour control of most loads, 1 to 12 ON/OFF operations each day, Minimum ON/OFF times of 1 hour, Manual override, 1 Year Warranty |
| Direct 24-hour control of most loads |
| Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour |
| Manual override |
| One ON and one OFF tripper included |
| 40 A at 120 - 480 VAC (resistive), 40 A (inductive), 40 A at 120 - 277 (tungsten) |
| 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor |
| 60 Hz |
| 3 W power |
| 1000 VA pilot duty |
| 14 - 8 AWG |
| 16 A, 277 VAC electronic ballast |
| 24 hr time duration |
