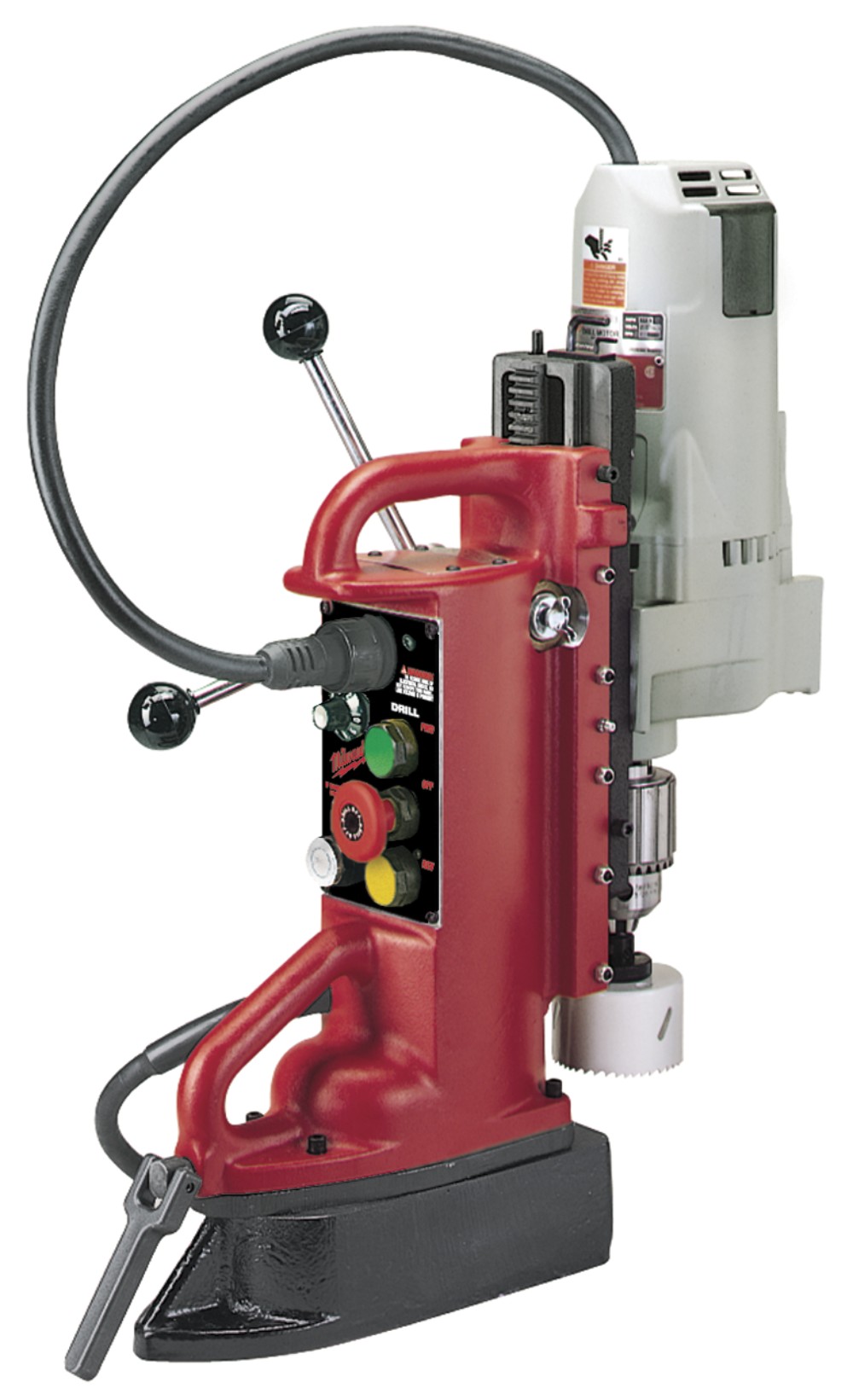

Milwaukee® 4206-1 Adjustable Position Heavy Duty, 3/4 in Chuck, 2 hp, 4-11/16 in Drill to Center From Base, 350 rpm Spindle, 120 VAC
Custom_Product_Images_Illustration
Milwaukee® 4206-1 Adjustable Position Heavy Duty, 3/4 in Chuck, 2 hp, 4-11/16 in Drill to Center From Base, 350 rpm Spindle, 120 VAC
SKU348892
MFGR #4206-1
Your Cost: $1,499.00/ea
List: No job is too large for this heavy-duty drill press. The Adjustable-Position Electromagnetic Drill Press with 3/4 in Motor features the 4203 adjustable-position, variable-speed base and the 4262-1 3/4 in drill motor with 3-Jaw chuck. Built for production drilling, this 11.5-amp drill press can handle the toughest drilling jobs with up to a 3/4 in Twist Drill hole capacity, 4 in hole capacity with Steel Hawg® Cutters and 1-14 tapping capacity. The motor runs at 350 no-load RPM, geared low for maximum torque; base control panel offers variable speed control of motor RPM. . It can produce up to 1670 pounds of drill point pressure with a 1 in steel plate. Feedback speed control helps you maintain speed during operation. This unit features a 3/4 in chuck for fast and easy bit changes while eliminating slippage and breakage. The dual-mount gear case with reverse mount permits tight quarter drilling.
No job is too large for this heavy-duty drill press. The Adjustable-Position Electromagnetic Drill Press with 3/4 in Motor features the 4203 adjustable-position, variable-speed base and the 4262-1 3/4 in drill motor with 3-Jaw chuck. Built for production drilling, this 11.5-amp drill press can handle the toughest drilling jobs with up to a 3/4 in Twist Drill hole capacity, 4 in hole capacity with Steel Hawg® Cutters and 1-14 tapping capacity. The motor runs at 350 no-load RPM, geared low for maximum torque; base control panel offers variable speed control of motor RPM. . It can produce up to 1670 pounds of drill point pressure with a 1 in steel plate. Feedback speed control helps you maintain speed during operation. This unit features a 3/4 in chuck for fast and easy bit changes while eliminating slippage and breakage. The dual-mount gear case with reverse mount permits tight quarter drilling.
Alternate Catalog Number 42061 Amperage Rating 12.5 A ARRA Compliant C Buy American Compliant C Catalog Number 4206-1 Country of Origin USA Currency USD Drill Point Pressure 1630/1670 lb Drill to Center From Base 4-11/16 ok EU RoHS Indicator C Gross Volume Per Pack 66.80 Gross Weight Per Pack 78.0200 lb Gross Weight per Pack Metric 36.74 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8459290020 Height [Metric] 19.0500 cm Horsepower 2 hp Length 7.5000 in Length [Metric] 53.3400 cm Overall Height 25-1/4 in Spindle Speed 350 rpm Spindle Travel 11 in Standards ARRA CompliantBuy American Act Compliant UNSPSC 20111707 UPC 11 04524201282 UPC 12 045242012824 Voltage Rating 120 VAC Warranty Description 5 Years Width 18.5000 in Width [Metric] 46.9900 cm Stock Status NONSTOCK Brand Milwaukee® Manufacturer Milwaukee Tool Chuck Size 3/4 in Height 21.0000 in Type Adjustable Position Heavy Duty - Powerful 11.5-amp motor: Engineered for the toughest applications, delivering 350 RPM
- Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling
- 3/4™ Capacity: Taps up to 1-inch, 14-threaded holes
- Maximum force: Develops up to 1670 pounds of drill point pressure with a 1-inch steel plate
- Solid state electronic switching: Offers faster, smoother and quieter switching for a longer product lifespan
- Line Lockout: Prevents tool from operating if voltage is restored to an interrupted line
Features
Powerful 11.5 A motor, engineered for the toughest applications Dual mount gear case with reverse mount permits tight quarter drilling 3/4 in tap capacity, taps up to 1 in, 14 threaded holes Maximum force, develops up to 1670 lb of drill point pressure with a 1 in steel plate Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan Line lockout, prevents tool from operating if voltage is restored to an interrupted line Forward/reverse electronic feedback speed control, soft start and 6 ft safety chain 9 ft fixed cord Red/gray/black finish Computer controlled reverse Motor magnet lockout prevents de-mag during operation Full wave holding power Metal arm Grounded construction 4.74 in drilling depth 15 in L x 4-1/4 in W base
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 42061 |
| Amperage Rating | 12.5 A |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 4206-1 |
| Country of Origin | USA |
| Currency | USD |
| Drill Point Pressure | 1630/1670 lb |
| Drill to Center From Base | 4-11/16 ok |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 66.80 |
| Gross Weight Per Pack | 78.0200 lb |
| Gross Weight per Pack Metric | 36.74 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8459290020 |
| Height [Metric] | 19.0500 cm |
| Horsepower | 2 hp |
| Length | 7.5000 in |
| Length [Metric] | 53.3400 cm |
| Overall Height | 25-1/4 in |
| Spindle Speed | 350 rpm |
| Spindle Travel | 11 in |
| Standards | ARRA CompliantBuy American Act Compliant |
| UNSPSC | 20111707 |
| UPC 11 | 04524201282 |
| UPC 12 | 045242012824 |
| Voltage Rating | 120 VAC |
| Warranty Description | 5 Years |
| Width | 18.5000 in |
| Width [Metric] | 46.9900 cm |
| Stock Status | NONSTOCK |
| Brand | Milwaukee® |
| Manufacturer | Milwaukee Tool |
| Chuck Size | 3/4 in |
| Height | 21.0000 in |
| Type | Adjustable Position Heavy Duty |
Features |
| Powerful 11.5 A motor, engineered for the toughest applications |
| Dual mount gear case with reverse mount permits tight quarter drilling |
| 3/4 in tap capacity, taps up to 1 in, 14 threaded holes |
| Maximum force, develops up to 1670 lb of drill point pressure with a 1 in steel plate |
| Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan |
| Line lockout, prevents tool from operating if voltage is restored to an interrupted line |
| Forward/reverse electronic feedback speed control, soft start and 6 ft safety chain |
| 9 ft fixed cord |
| Red/gray/black finish |
| Computer controlled reverse |
| Motor magnet lockout prevents de-mag during operation |
| Full wave holding power |
| Metal arm |
| Grounded construction |
| 4.74 in drilling depth |
| 15 in L x 4-1/4 in W base |
