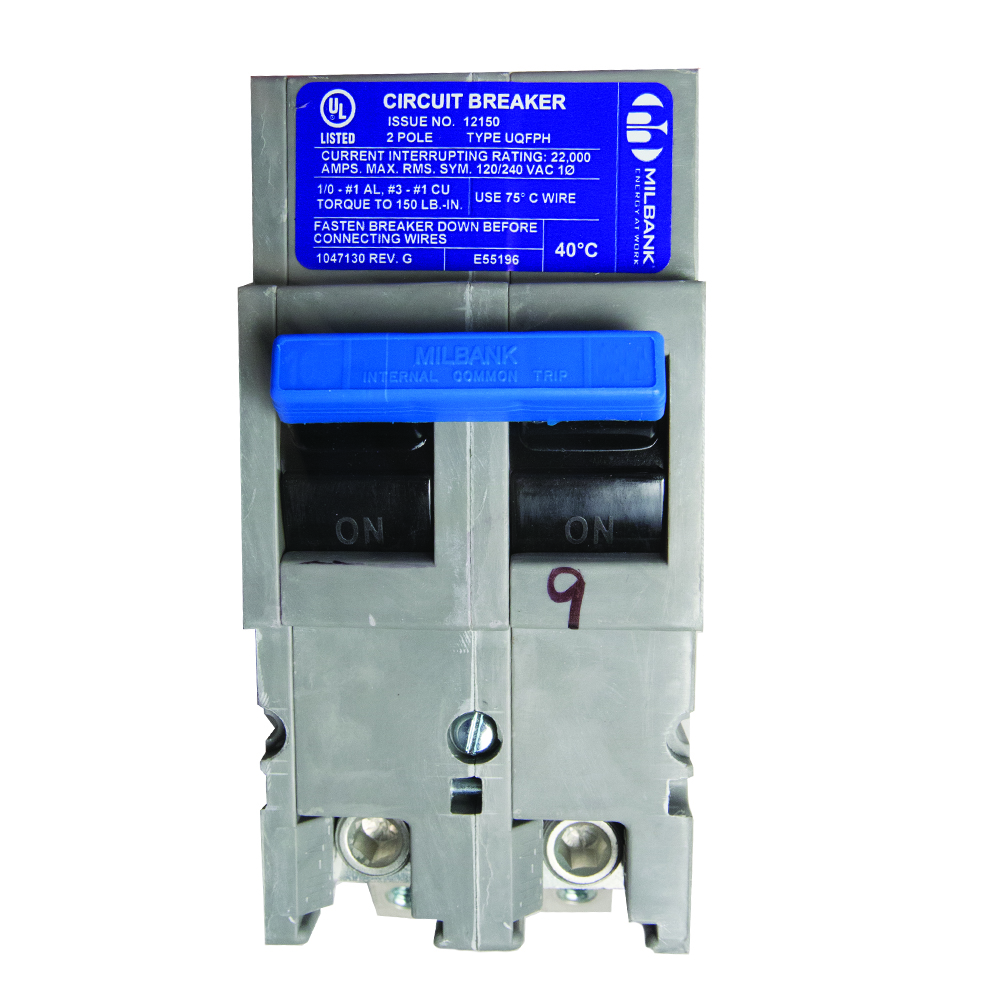

Milbank® UQFPH-M-200 Molded Case Circuit Breaker, 240 VAC, 200 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Milbank® UQFPH-M-200 Molded Case Circuit Breaker, 240 VAC, 200 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU404042
MFGR #UQFPH-M-200
Your Cost: $323.19/ea
List: Milbank® Molded Case Circuit Breaker, 240 VAC, 200 A, 60 Hz, 22 kA Interrupt, F Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Lever Actuator, 1/0 AWG to 300 kcmil/2/0 AWG to 300 kcmil Wire, Plug-In Mount, 40 deg C, 6.06 in H x 3 in W
Milbank® Molded Case Circuit Breaker, 240 VAC, 200 A, 60 Hz, 22 kA Interrupt, F Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Lever Actuator, 1/0 AWG to 300 kcmil/2/0 AWG to 300 kcmil Wire, Plug-In Mount, 40 deg C, 6.06 in H x 3 in W
Actuator Lever Actuator Type Lever Operated Application Metering Accessory ARRA Compliant C Auxiliary Contacts No Auxiliary Contacts Buy American Compliant C Catalog Number UQFPH-M-200 Connection Bus to Lug Country of Origin USA Currency USD Current Rating 200 A Dimensions 6.06 in H x 3 in W EU RoHS Indicator C Frame F-Frame Frequency Rating 60 Hz Gross Weight Per Pack 2.7000 lb Gross Weight per Pack Metric 1.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9028900040 Height 6.06 in Height [Metric] 15.4000 cm Length 3.28 in Length [Metric] 8.3337 cm Material Non-Metallic Mounting Type Plug-In Number Of Phases 1 Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Standard UL Listed Standards RoHS Complaint, UL Listed Temperature Rating 40 °C Type Current Interrupting Device UNSPSC 39121601 UPC 11 78457220141 UPC 12 78457220141 Width 3.00 in Width [Metric] 7.6200 cm Wire Size 1/0 AWG to 300 kcmil, 2/0 AWG to 300 kcmil Stock Status NONSTOCK Brand Milbank® Manufacturer Milbank Manufacturing Amperage Rating 200 A Interrupt Rating 22,000 Ampere Interrupting Capacity kA Trip Type Thermal Magnetic Voltage Rating 240 V Metering Accessory Load Side Threaded Tap Tangs Non-metallic 1/0 AWG - 300 kcmil copper, 2/0 AWG - 300 kcmil aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Lever |
| Actuator Type | Lever Operated |
| Application | Metering Accessory |
| ARRA Compliant | C |
| Auxiliary Contacts | No Auxiliary Contacts |
| Buy American Compliant | C |
| Catalog Number | UQFPH-M-200 |
| Connection | Bus to Lug |
| Country of Origin | USA |
| Currency | USD |
| Current Rating | 200 A |
| Dimensions | 6.06 in H x 3 in W |
| EU RoHS Indicator | C |
| Frame | F-Frame |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 2.7000 lb |
| Gross Weight per Pack Metric | 1.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9028900040 |
| Height | 6.06 in |
| Height [Metric] | 15.4000 cm |
| Length | 3.28 in |
| Length [Metric] | 8.3337 cm |
| Material | Non-Metallic |
| Mounting Type | Plug-In |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Standard | UL Listed |
| Standards | RoHS Complaint, UL Listed |
| Temperature Rating | 40 °C |
| Type | Current Interrupting Device |
| UNSPSC | 39121601 |
| UPC 11 | 78457220141 |
| UPC 12 | 78457220141 |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | 1/0 AWG to 300 kcmil, 2/0 AWG to 300 kcmil |
| Stock Status | NONSTOCK |
| Brand | Milbank® |
| Manufacturer | Milbank Manufacturing |
| Amperage Rating | 200 A |
| Interrupt Rating | 22,000 Ampere Interrupting Capacity kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 V |
| Metering Accessory |
| Load Side Threaded Tap Tangs |
| Non-metallic |
| 1/0 AWG - 300 kcmil copper, 2/0 AWG - 300 kcmil aluminum |
