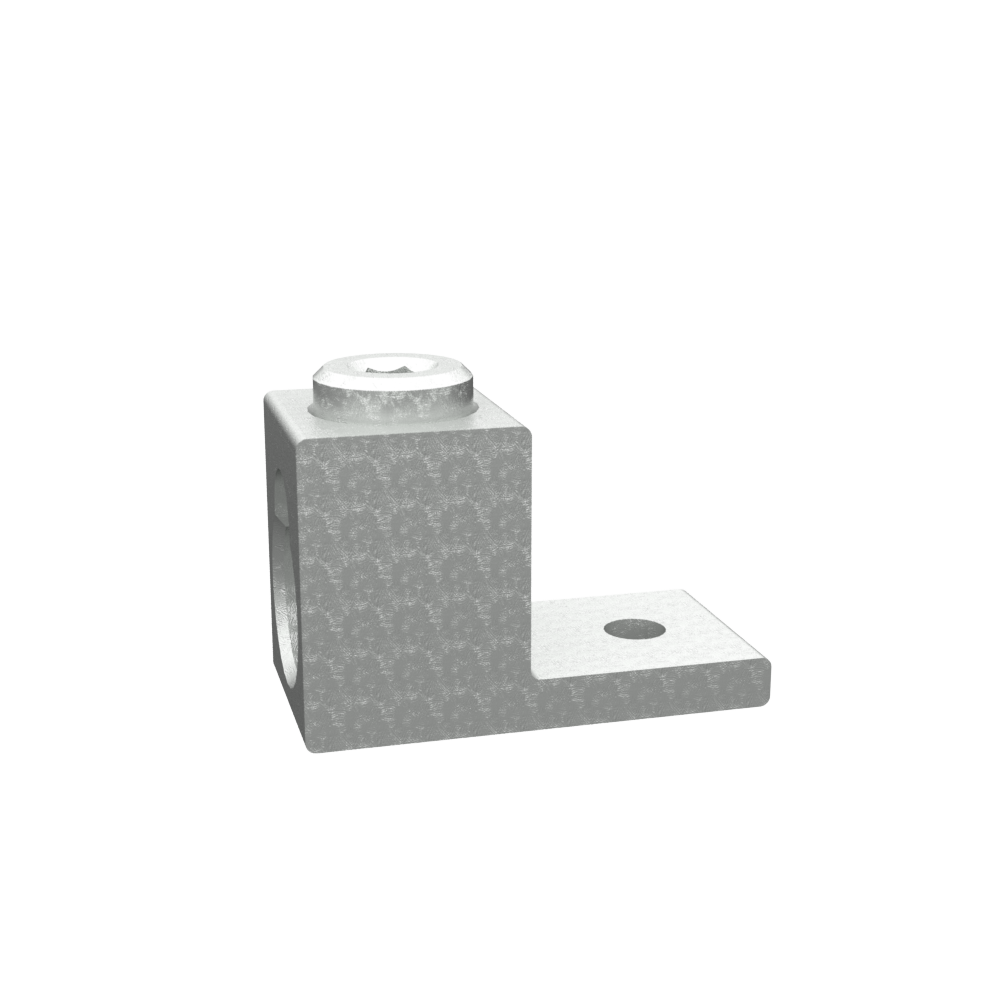

Milbank® K1540 Single Connector Kit, 1 ph, 600 kcmil, For Use With 3/8-16 Stud Type Unit, Aluminum
Custom_Product_Images_Illustration
Milbank® K1540 Single Connector Kit, 1 ph, 600 kcmil, For Use With 3/8-16 Stud Type Unit, Aluminum
SKU94799
MFGR #K1540
Your Cost: $62.53/ea
List: Milbank® Connector Kit, Single, For Use With: 3/8-16 Stud Type Unit, 1 ph, 600 kcmil, Aluminum
Milbank® Connector Kit, Single, For Use With: 3/8-16 Stud Type Unit, 1 ph, 600 kcmil, Aluminum
Application Metering Accessory ARRA Compliant C Buy American Compliant C Catalog Number K1540 Conductor Range 4 AWG to 600 kcmil or Two 1/0 AWG to 250 kcmil Connection Mechanical Country of Origin USA Currency USD EU RoHS Indicator C Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536908085 Height 5.00 in Height [Metric] 12.7000 cm Insulation None Length 7.00 in Length [Metric] 17.7800 cm Mounting Stud Number Of Conductors 1 Size 7L x 2.813W x 5H Standard UL Listed Temperature Rating 75 Degrees Celsius °C UNSPSC 39121421 UPC 11 78457211334 UPC 12 78457211334 Voltage Rating 600 VAC Width 2.81 in Width [Metric] 7.1450 cm Stock Status NONSTOCK Brand Milbank® Manufacturer Milbank Manufacturing Material Aluminum Specifications 1 ph, 600 kcmil Suitable For Use With 3/8-16 Stud Type Unit Type Wire Connector Kit Metering Accessory
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Substitute Products
| Application | Metering Accessory |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | K1540 |
| Conductor Range | 4 AWG to 600 kcmil or Two 1/0 AWG to 250 kcmil |
| Connection | Mechanical |
| Country of Origin | USA |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536908085 |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Insulation | None |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| Mounting | Stud |
| Number Of Conductors | 1 |
| Size | 7L x 2.813W x 5H |
| Standard | UL Listed |
| Temperature Rating | 75 Degrees Celsius °C |
| UNSPSC | 39121421 |
| UPC 11 | 78457211334 |
| UPC 12 | 78457211334 |
| Voltage Rating | 600 VAC |
| Width | 2.81 in |
| Width [Metric] | 7.1450 cm |
| Stock Status | NONSTOCK |
| Brand | Milbank® |
| Manufacturer | Milbank Manufacturing |
| Material | Aluminum |
| Specifications | 1 ph, 600 kcmil |
| Suitable For Use With | 3/8-16 Stud Type Unit |
| Type | Wire Connector Kit |
| Metering Accessory |
