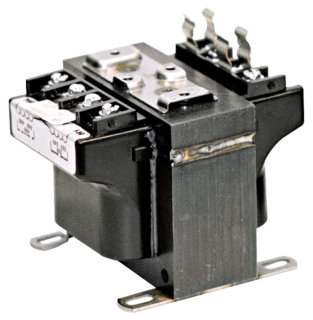

Micron ImperviTRAN® B150MBT713RKF Encapsulated Control Transformer, 208/230/460 VAC Primary, 24/115 VAC Secondary
Micron ImperviTRAN® B150MBT713RKF Encapsulated Control Transformer, 208/230/460 VAC Primary, 24/115 VAC Secondary
SKU926843
MFGR #B150MBT713RKF
Your Cost: $209.64/ea
List: ImperviTRAN® is the ultra-reliable industrial control circuit transformer. behind its clean design is a toughness that makes it measure up to any requirement placed upon it. manufacturers of industrial and commercial equipment, control panels and centers have made ImperviTRAN® the most accepted transformer in the industry.
ImperviTRAN® is the ultra-reliable industrial control circuit transformer. behind its clean design is a toughness that makes it measure up to any requirement placed upon it. manufacturers of industrial and commercial equipment, control panels and centers have made ImperviTRAN® the most accepted transformer in the industry.
Catalog Number B150MBT713RKF Connection Type Screw Country of Origin USA Dimensions 4-1/4 in H x 3-3/4 in W x 4-9/16 in D Gross Weight Per Pack 8.0000 lb Housing Material Silicon Steel Maximum Amperage Rating 6.25/1.3 A Standards UL 506, UL File No. E46323, CSA File No. LR27533 Temperature Rating 40 °C Type Encapsulated UNSPSC 39121026 UPC 11 78455048155 UPC 12 78455048155 Stock Status NONSTOCK Brand Micron Manufacturer Micron Power Frequency Rating 50/60 Hz Power Rating 150 VA Primary Voltage 208/230/460 VAC Secondary Voltage 24/115 VAC Epoxy encapsulated coils 20 years warranty, double the industry standard Secondary fuse clips where applicable Optional primary fusing Molded terminal barriers #10-32 screw terminals Molded-in terminals and phil slot screws
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | B150MBT713RKF |
| Connection Type | Screw |
| Country of Origin | USA |
| Dimensions | 4-1/4 in H x 3-3/4 in W x 4-9/16 in D |
| Gross Weight Per Pack | 8.0000 lb |
| Housing Material | Silicon Steel |
| Maximum Amperage Rating | 6.25/1.3 A |
| Standards | UL 506, UL File No. E46323, CSA File No. LR27533 |
| Temperature Rating | 40 °C |
| Type | Encapsulated |
| UNSPSC | 39121026 |
| UPC 11 | 78455048155 |
| UPC 12 | 78455048155 |
| Stock Status | NONSTOCK |
| Brand | Micron |
| Manufacturer | Micron Power |
| Frequency Rating | 50/60 Hz |
| Power Rating | 150 VA |
| Primary Voltage | 208/230/460 VAC |
| Secondary Voltage | 24/115 VAC |
| Epoxy encapsulated coils |
| 20 years warranty, double the industry standard |
| Secondary fuse clips where applicable |
| Optional primary fusing |
| Molded terminal barriers |
| #10-32 screw terminals |
| Molded-in terminals and phil slot screws |
