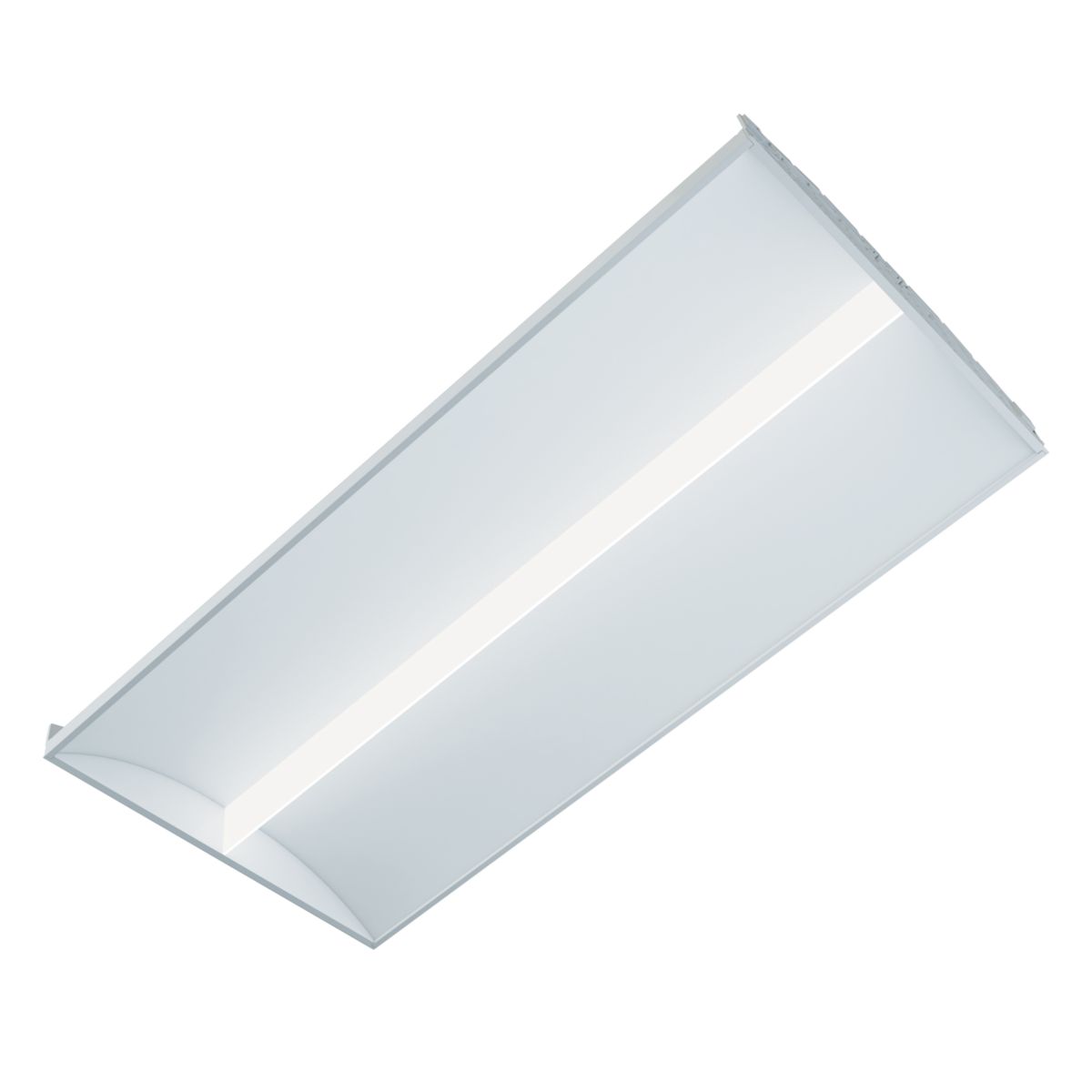

Metalux 24SR-LD2-48-C-UNV-L840-CD1-U SkyRidge™ Specification Grade Static Standard Specification Recessed Troffer, LED 2.0 Lamp, 38.2 W Fi
Custom_Product_Images_Illustration
Metalux 24SR-LD2-48-C-UNV-L840-CD1-U SkyRidge™ Specification Grade Static Standard Specification Recessed Troffer, LED 2.0 Lamp, 38.2 W Fi
SKU1181915
MFGR #24SR-LD2-48-C-UNV-L840-CD1-U
Your Cost: $303.39/ea
Metalux Specification Recessed Troffer, Specification Grade Static Standard, Series: SkyRidge™, 120 to 277 VAC, 38.2 W Fixture, WaveStream™ Lighting Technology, LED 2.0 Lamp, 128 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 85 CRI, 0 to 10 VDC Dimming Ballast, Curved Acrylic Lens, 4800 Lumens, Ceiling Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 5.313 in H Dimensions
Metalux Specification Recessed Troffer, Specification Grade Static Standard, Series: SkyRidge™, 120 to 277 VAC, 38.2 W Fixture, WaveStream™ Lighting Technology, LED 2.0 Lamp, 128 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 85 CRI, 0 to 10 VDC Dimming Ballast, Curved Acrylic Lens, 4800 Lumens, Ceiling Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 5.313 in H Dimensions
Amperage Rating 0.138 at 277V Application Commercial Office Spaces, Schools, Hospitals, Retail, Other Indoor Ambient, Lighting Applicatio ARRA Compliant C Ballast Type N/A Buy American Compliant C Catalog Number 24SR-LD2-48-C-UNV-L840-CD1-U Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 24.5000 lb Gross Weight per Pack Metric 11.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9405116020 Height 6.10 in Height [Metric] 15.4940 cm Length 50.00 in Length [Metric] 127.0000 cm Lens Acrylic Material Aluminum Mounting Recessed Number Of Lamps 1 Socket Type N/A Standard UL Recognized;cULus Listed;LM79/LM80 Compliant;DLC Qualified;IC Rated;RoHS Compliant;Damp Locations Listed;NOM Certified;25 Degree C Ambient Temperature Rating Style (blank) Sub Brand SkyRidge LED Series Type Recessed Static UNSPSC 39111534 UPC 11 08008375248 UPC 12 080083752485 Wattage 38 W Width 24.30 in Width [Metric] 61.7220 cm Stock Status NONSTOCK Brand Metalux® Manufacturer Cooper Lighting Solutions Lamp Type LED Voltage Rating 120/277 V Commercial Office Spaces, Schools, Hospitals, Retail, Other Indoor Ambient, Lighting Applicatio Available in 1' x 2', 1' x 4', 2' x 2' and 2' x 4' recessed versions Leverages our patented wavestream technology with AccuAim™ optics Advanced optical control with optimal illumination High performance efficacy up to 146 Lumens/W Over 60% energy savings when compared to a fluorescent troffers Standard 0 to 10 VDC continuous dimming driver L92 at 100000 hr with 5 year warranty
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 0.138 at 277V |
| Application | Commercial Office Spaces, Schools, Hospitals, Retail, Other Indoor Ambient, Lighting Applicatio |
| ARRA Compliant | C |
| Ballast Type | N/A |
| Buy American Compliant | C |
| Catalog Number | 24SR-LD2-48-C-UNV-L840-CD1-U |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 24.5000 lb |
| Gross Weight per Pack Metric | 11.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9405116020 |
| Height | 6.10 in |
| Height [Metric] | 15.4940 cm |
| Length | 50.00 in |
| Length [Metric] | 127.0000 cm |
| Lens | Acrylic |
| Material | Aluminum |
| Mounting | Recessed |
| Number Of Lamps | 1 |
| Socket Type | N/A |
| Standard | UL Recognized;cULus Listed;LM79/LM80 Compliant;DLC Qualified;IC Rated;RoHS Compliant;Damp Locations Listed;NOM Certified;25 Degree C Ambient Temperature Rating |
| Style | (blank) |
| Sub Brand | SkyRidge LED Series |
| Type | Recessed Static |
| UNSPSC | 39111534 |
| UPC 11 | 08008375248 |
| UPC 12 | 080083752485 |
| Wattage | 38 W |
| Width | 24.30 in |
| Width [Metric] | 61.7220 cm |
| Stock Status | NONSTOCK |
| Brand | Metalux® |
| Manufacturer | Cooper Lighting Solutions |
| Lamp Type | LED |
| Voltage Rating | 120/277 V |
| Commercial Office Spaces, Schools, Hospitals, Retail, Other Indoor Ambient, Lighting Applicatio |
| Available in 1' x 2', 1' x 4', 2' x 2' and 2' x 4' recessed versions |
| Leverages our patented wavestream technology with AccuAim™ optics |
| Advanced optical control with optimal illumination |
| High performance efficacy up to 146 Lumens/W |
| Over 60% energy savings when compared to a fluorescent troffers |
| Standard 0 to 10 VDC continuous dimming driver |
| L92 at 100000 hr with 5 year warranty |
